Rear Glass Release & Tailgate Lock
>>
With Power Door Locks (Less Keyless Entry)
With Power Door Locks (Less Keyless Entry)

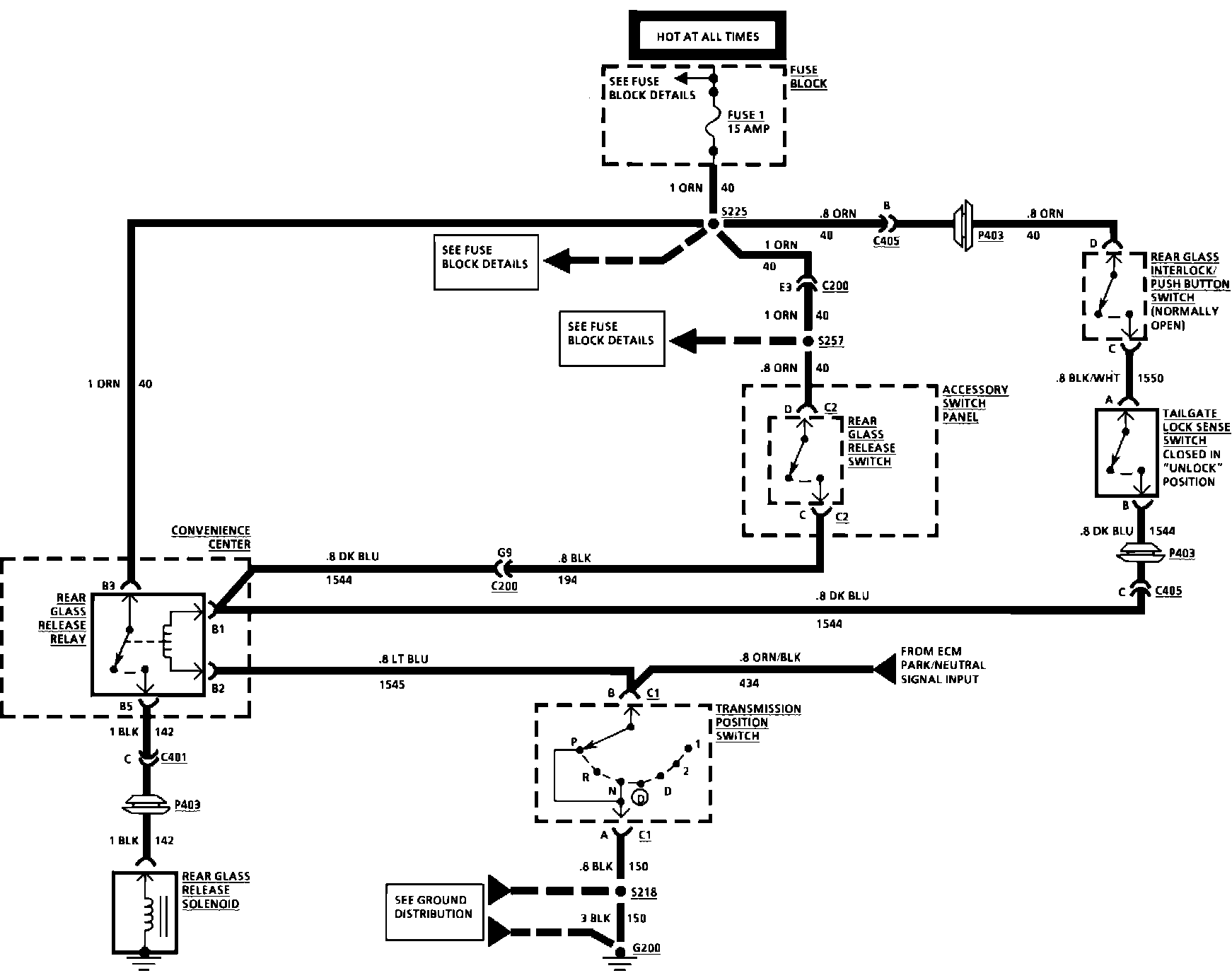

Rear Glass Release & Tailgate Lock (With Power Door Locks):
