Home >> Chevrolet >> 1991 >> Caprice V8-350 5.7L VIN 7 TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Rear Glass Release & Tailgate Lock >> Less Power Door Locks

Less Power Door Locks

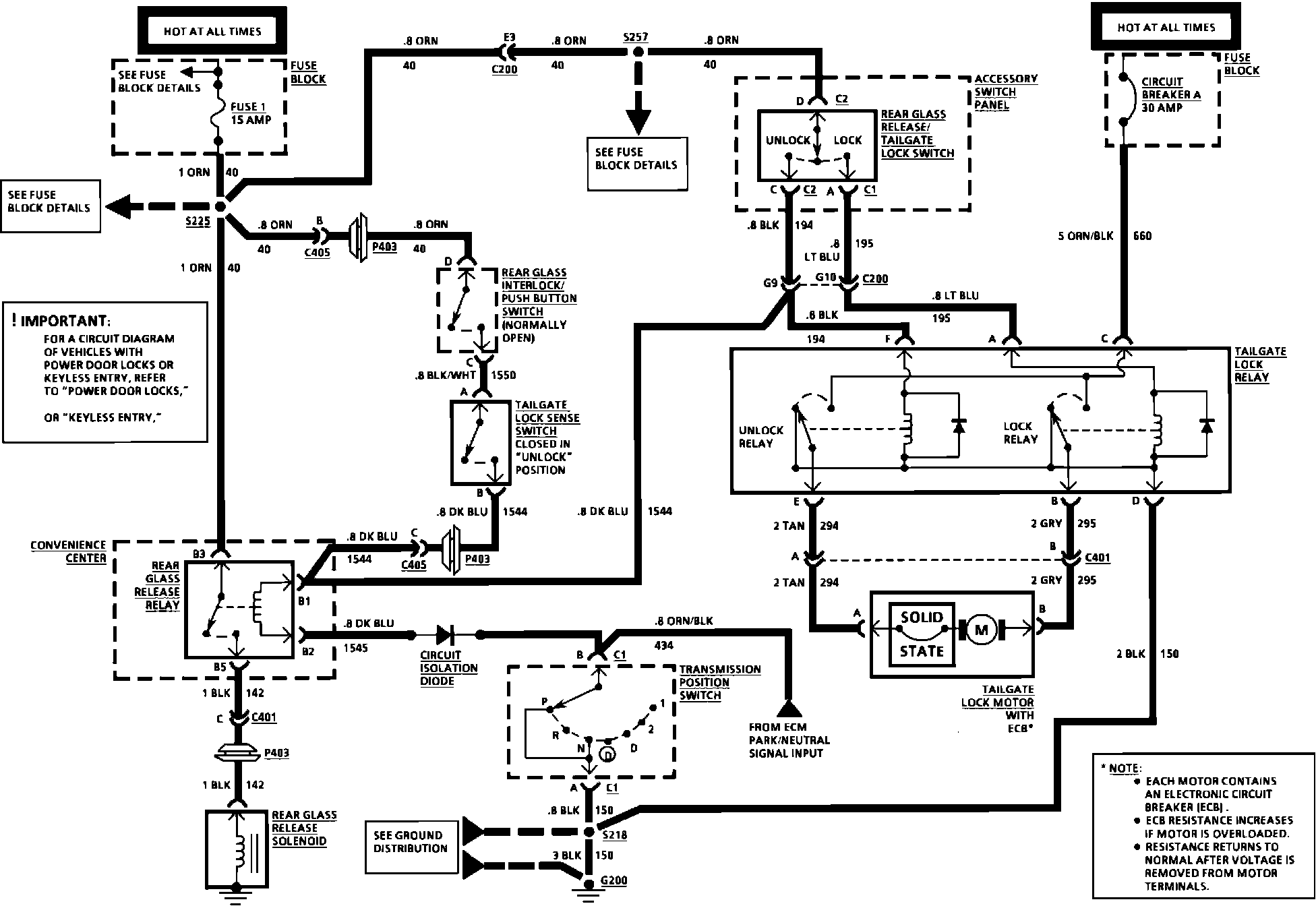

Rear Glass Release & Tailgate Lock (Less Power Door Locks):
