Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1991
>>
Caprice V8-350 5.7L VIN 7 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Fuse 17
Fuse 17

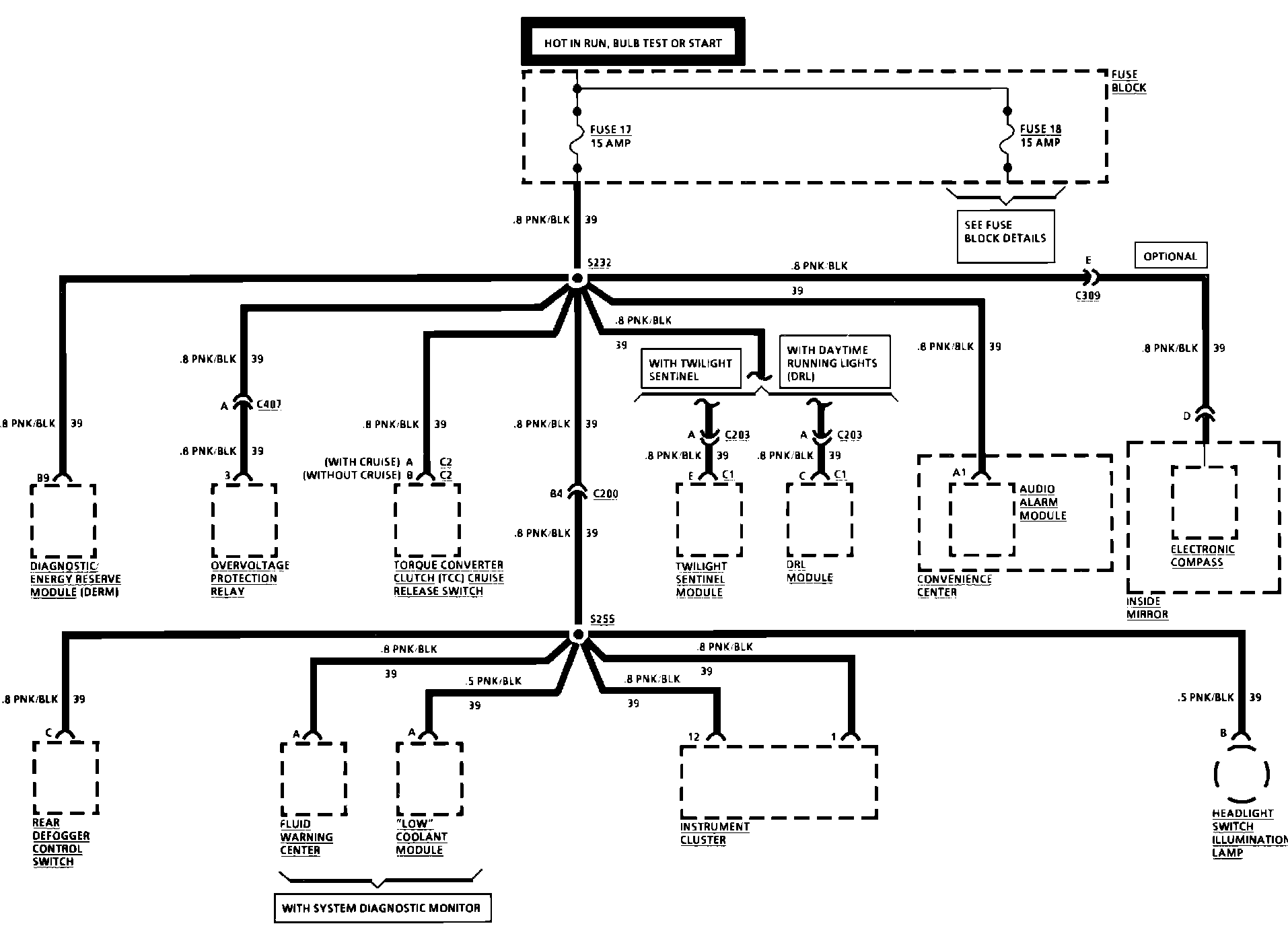

Fuse Block Details (Fuse 17):
