Caprice V8-350 5.7L VIN 7 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

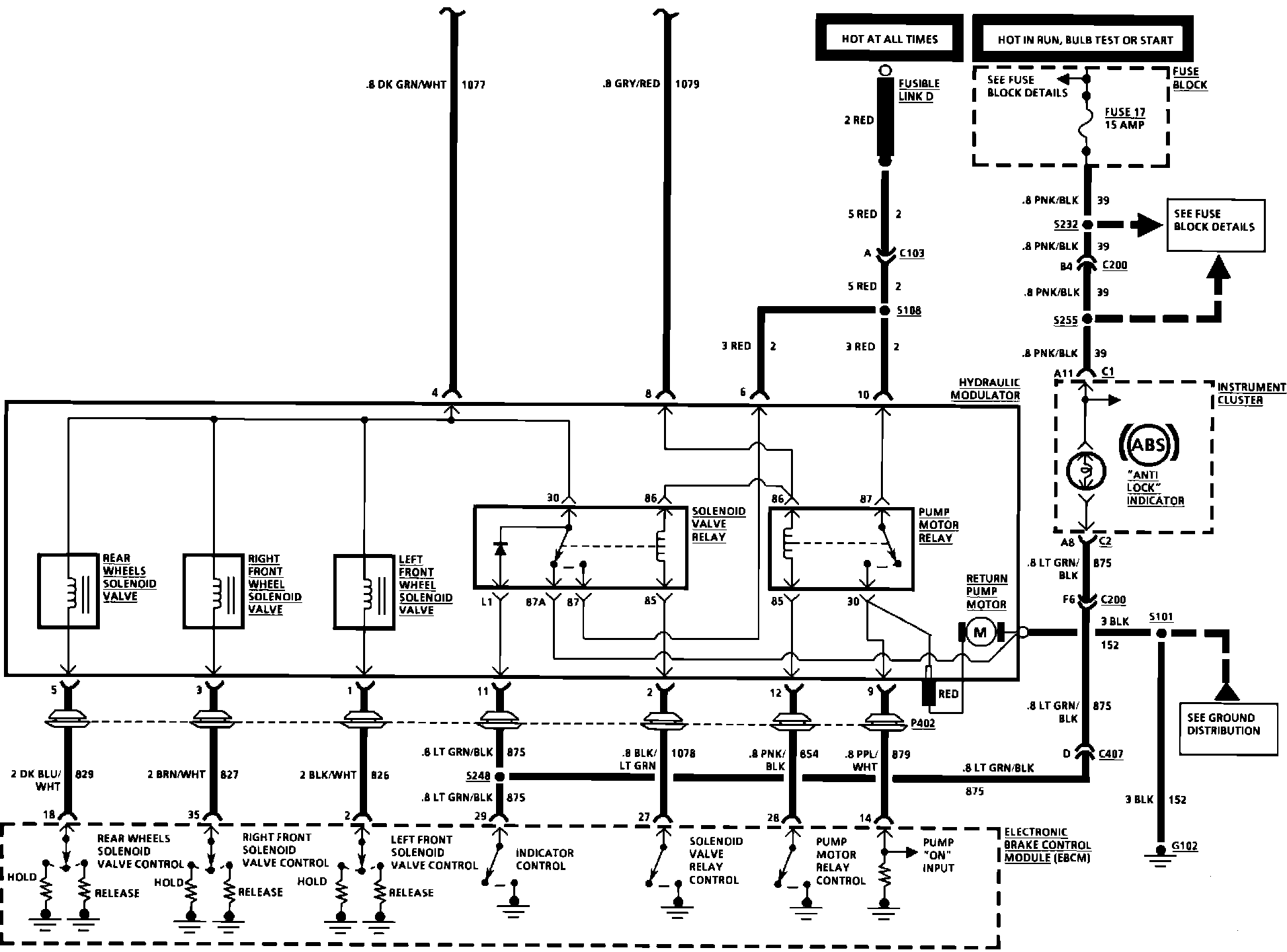

System Diagram
>>
Part 2 of 3
Part 2 of 3
Anti-Lock Brakes:
