Chevrolet
>>
1991
>>
Caprice V8-350 5.7L VIN 7 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

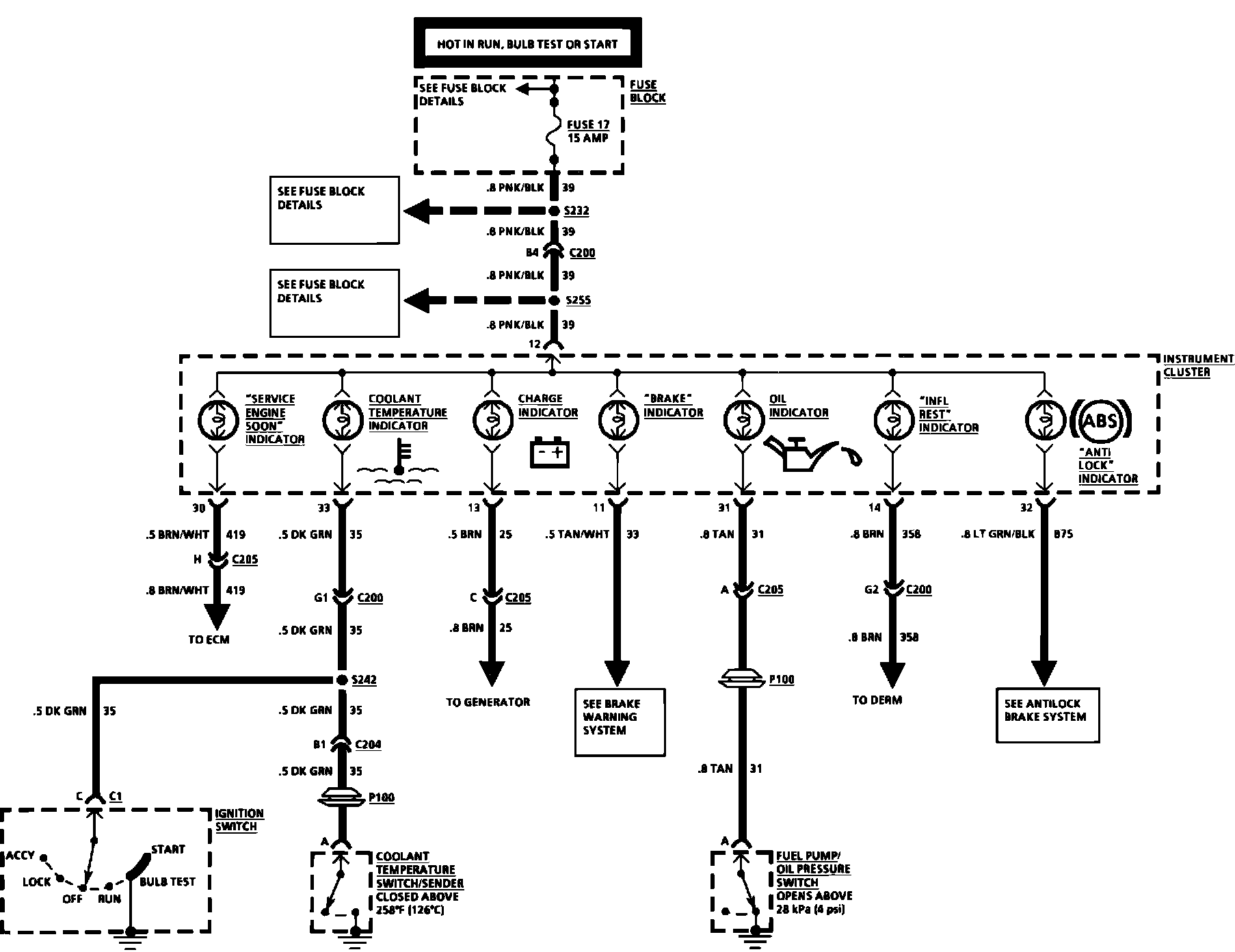

ABS Light
ABS Light
Instrument Panel Indicators:
