Camaro Z28 V8-350 5.7L VIN 8 FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Compressor Controls
Compressor Controls

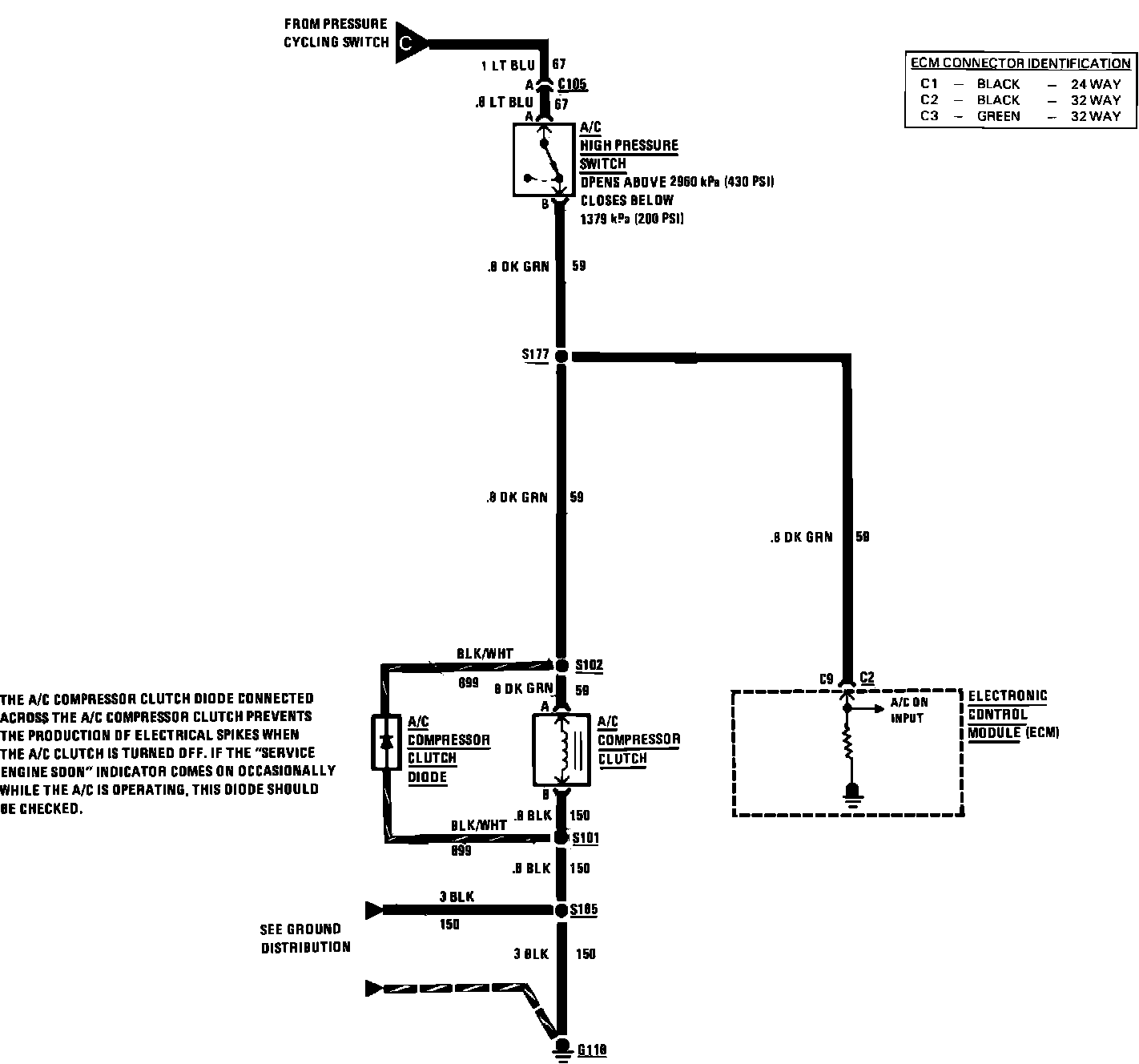

Air Conditioning: Compressor Controls C60:
Air Conditioning: Compressor Controls:
