Idle Speed Control, Fuel Control, & Vehicle Data Sensors

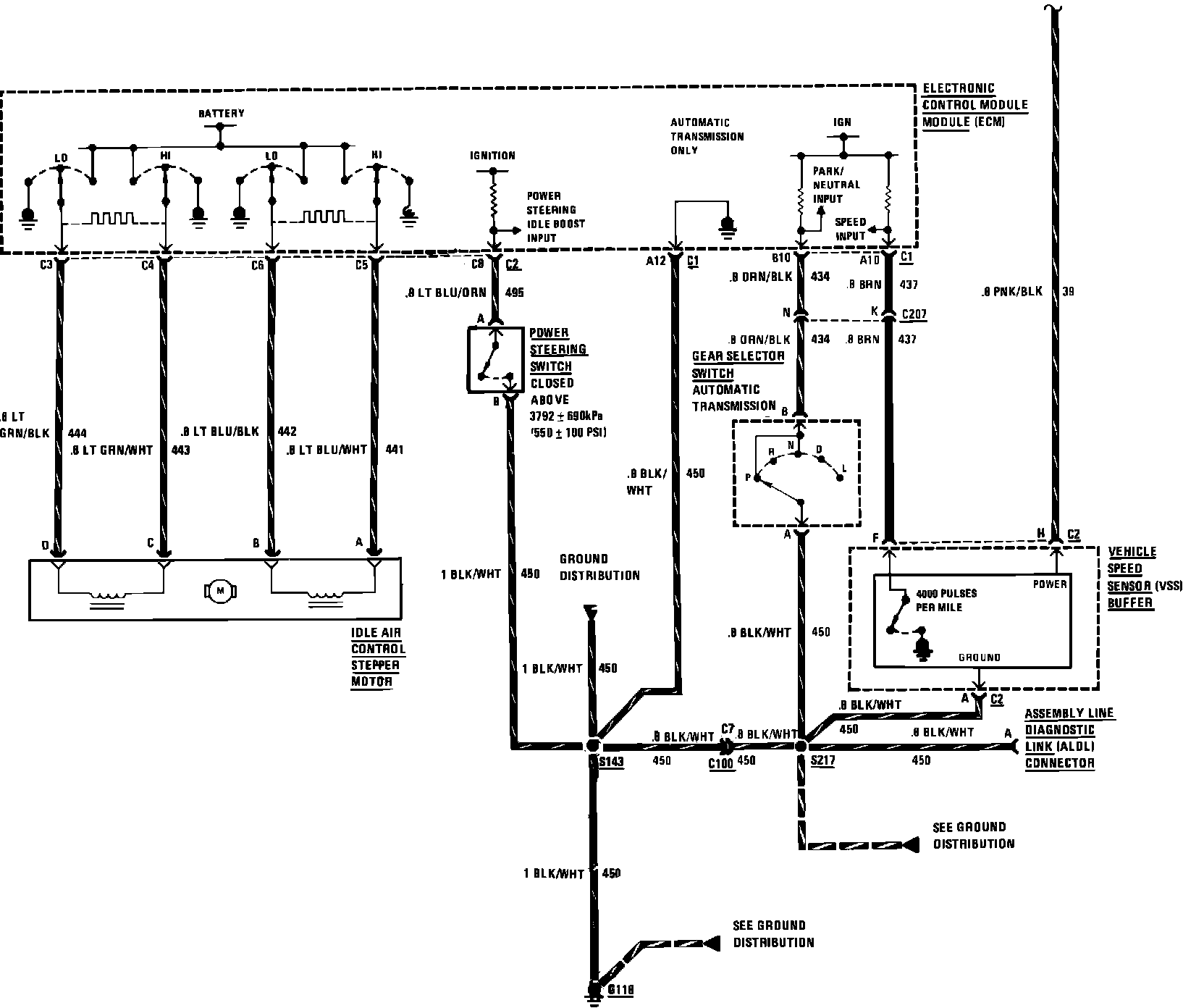

Throttle Body Injection: Idle Speed Control, Fuel Control, And Vehicle Data Sensors:



Throttle Body Injection: Idle Speed Control, Fuel Control, And Vehicle Data Sensors:
