Chevrolet
>>
1991
>>
Camaro RS V8-305 5.0L VIN E TBI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

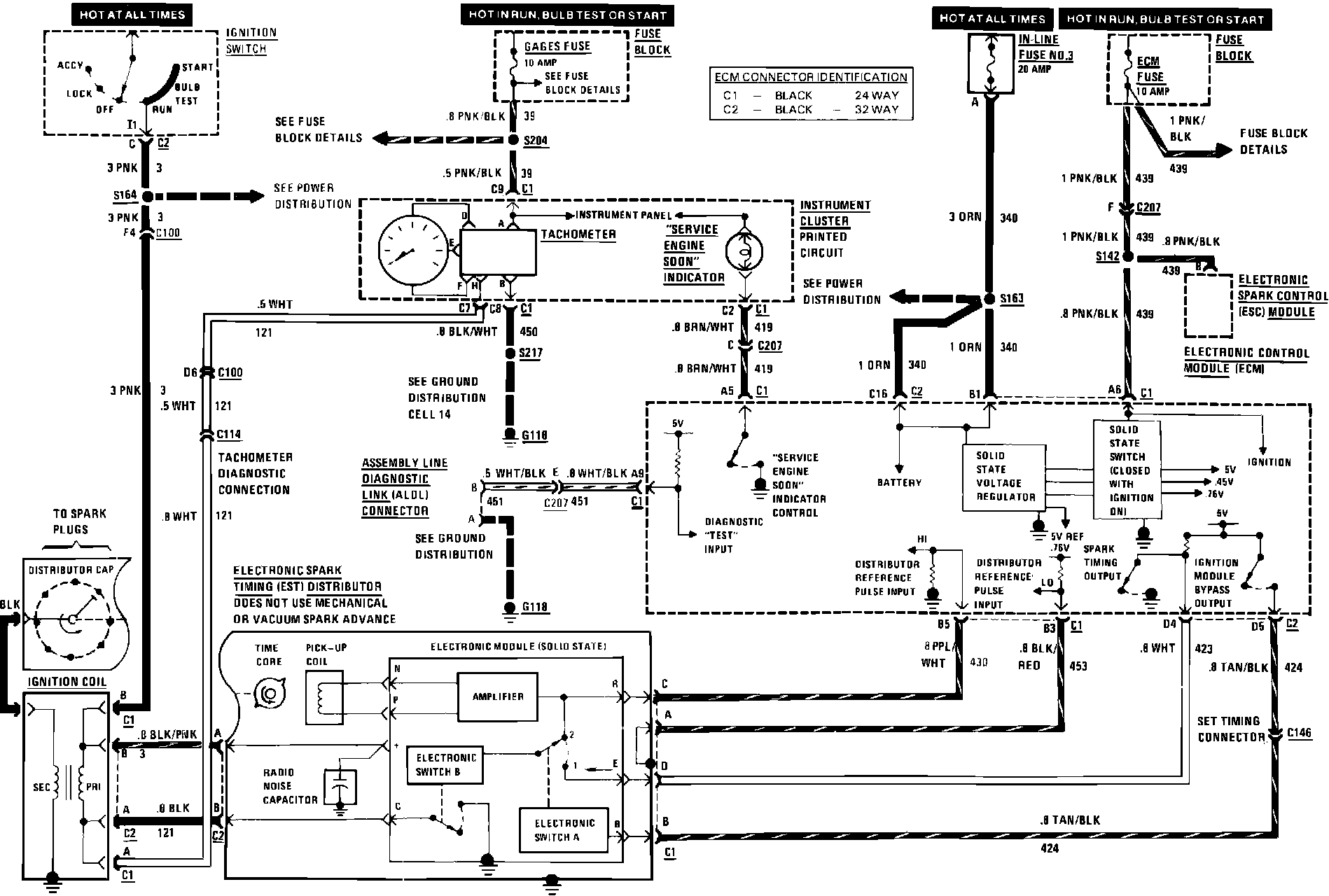

Throttle Body Injection: Ignition, Service Engine Soon Indicator, And Tachometer:
