Camaro RS V8-305 5.0L VIN E TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
With Tuned Port Injection (TPI)
With Tuned Port Injection (TPI)

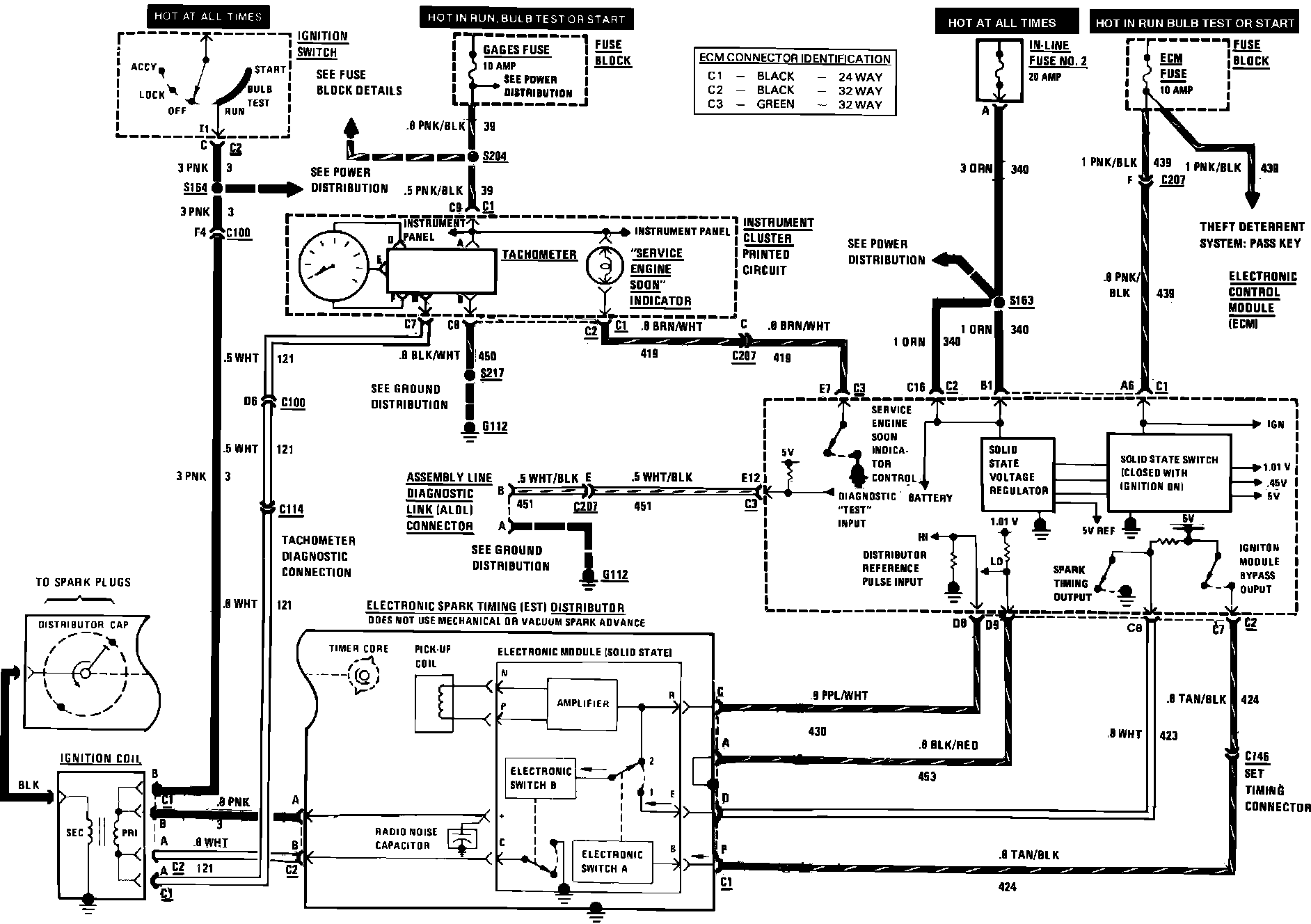

Tuned Port Injection: Ignition, Service Engine Soon Indicator, And Tachometer:
