Electrical Diagnosis - Circuit Wiring Diagram Correction

9216chevy04

Number: 91-119-8A

Section: 8A

Date: November 1990

Corporate Bulletin No.: 038141


Subject:
ELECTRICAL DIAGNOSIS 40 CIRCUIT WIRING DIAGRAM
CORRECTION


Model and Year:
1991 CORSICA/BERETTA





TO: ALL CHEVROLET DEALERS

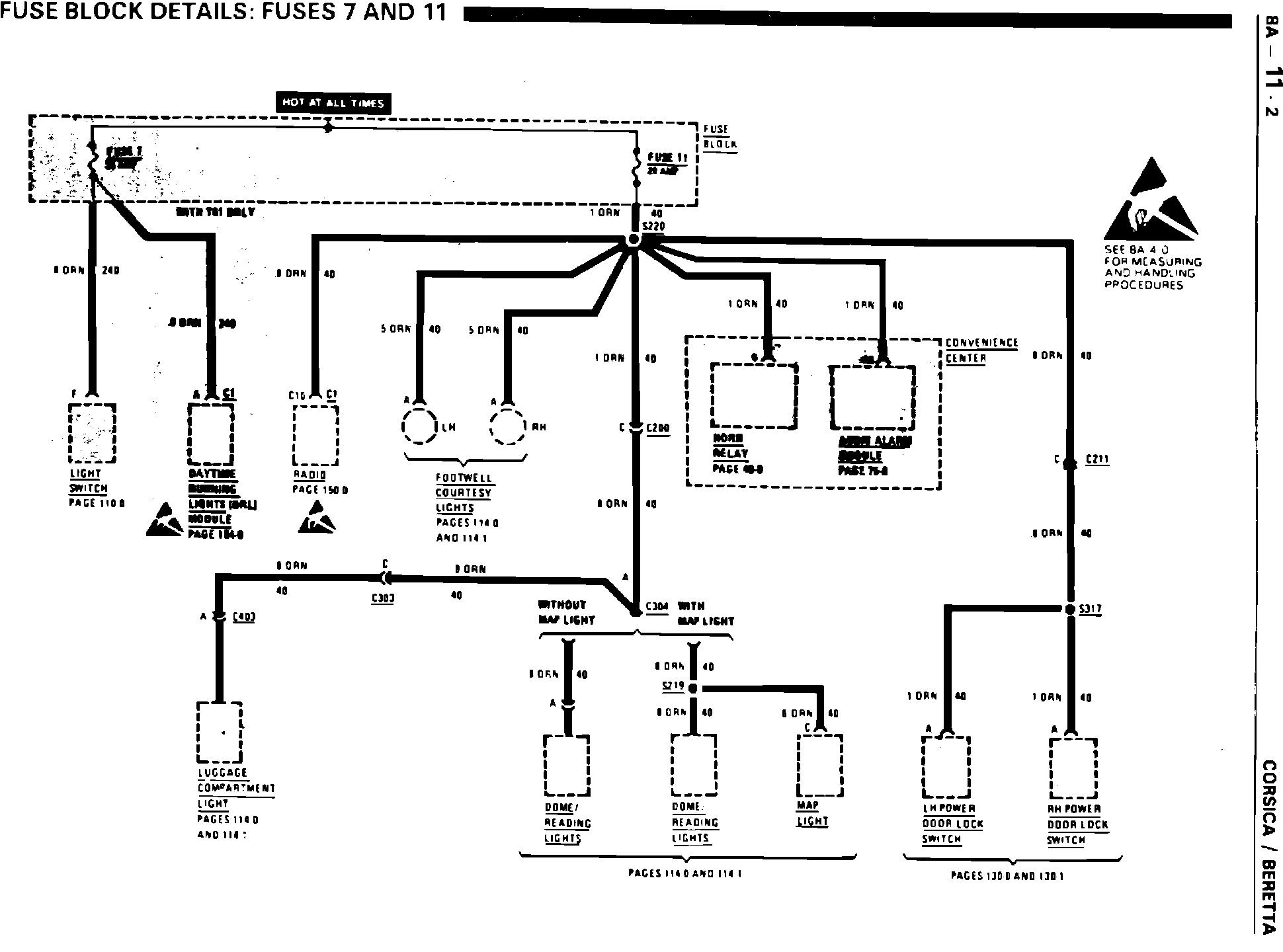

The correct Fuse Block 40 Circuit Wiring Diagram is to be included in your copies of the 1991 L-car Service Manuals.
