Air Bag System - DTC 31 Manual Update

9216chevy08

Number: 91-244-9J

Section: 9J

Date: MARCH 1991

Corporate Bulletin No.: 139002


Subject:
SUPPLEMENTAL INFLATABLE RESTRAINT (SIR) DIAGNOSIS


Model and Year:
1991 CORSICA/BERETTA





SERVICE UPDATE

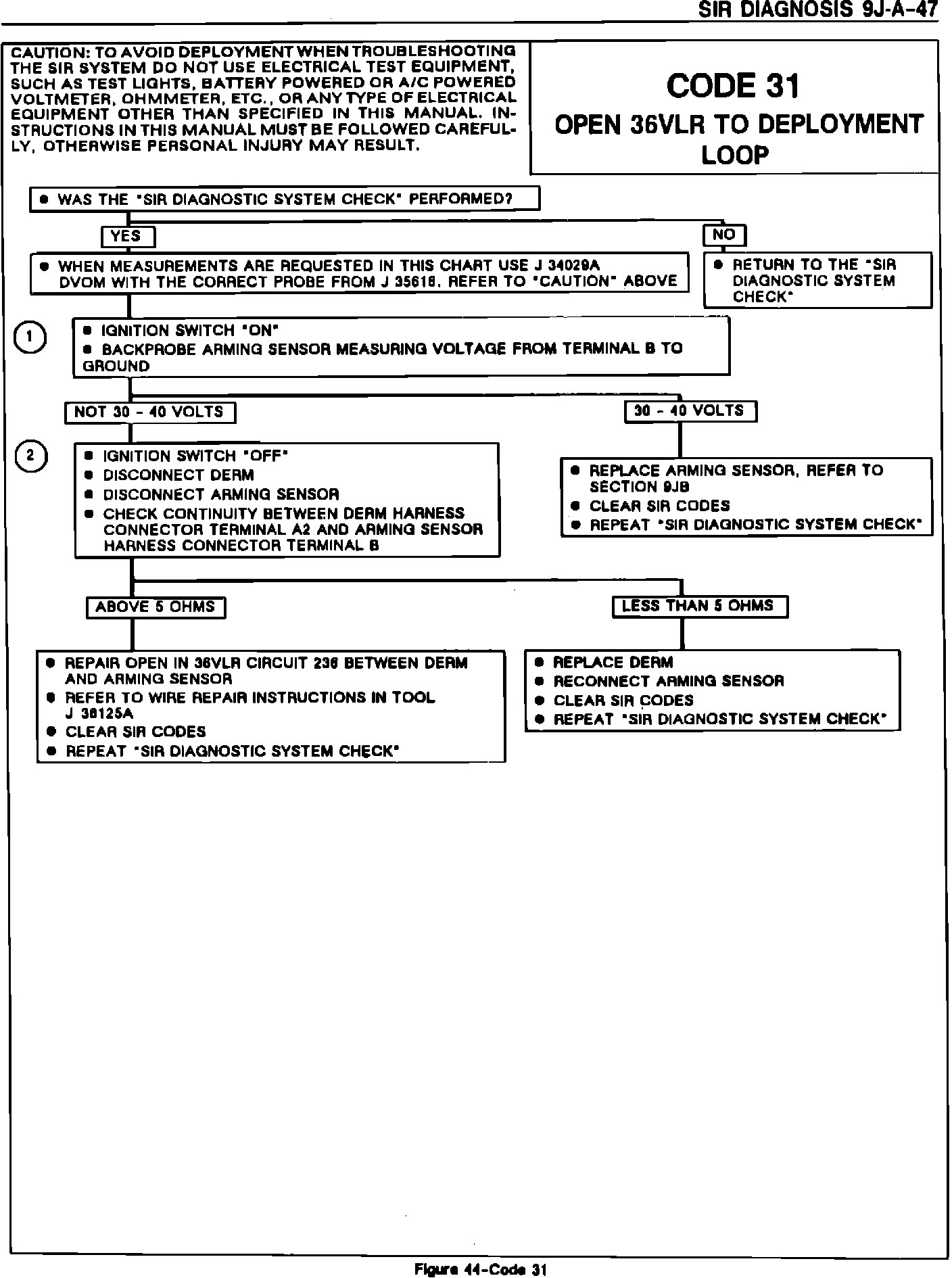

This bulletin is to replace page 9J-A-47 of the 1991 Corsica/Beretta Service Manual.

The information in the SIR diagnosis "Trouble Tree" Chart of Code 31 could lead the technician to misdiagnosis and unnecessary repairs.

In Step 1 the results are reversed. Before replacing the arming sensor, the technician should not have measured 30-40 volts between Terminal B and ground.
