Chart A-2
Chart A-2

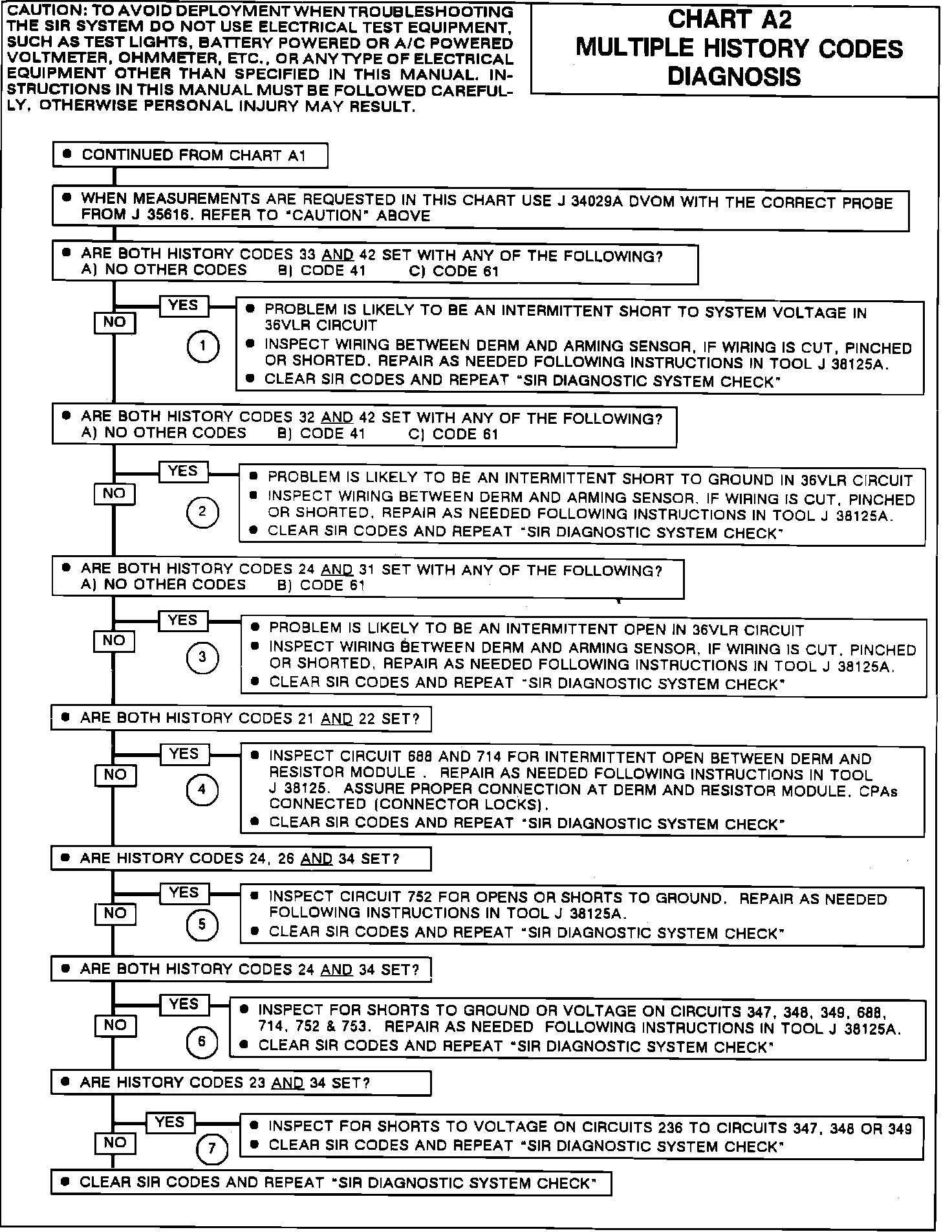

Fig. 35 Chart A2, Multiple History Codes Diagnosis (Part 1 Of 2).:
Fig. 35 Chart A2, Multiple History Codes Diagnosis (Part 2 Of 2).:
