Chart A-1

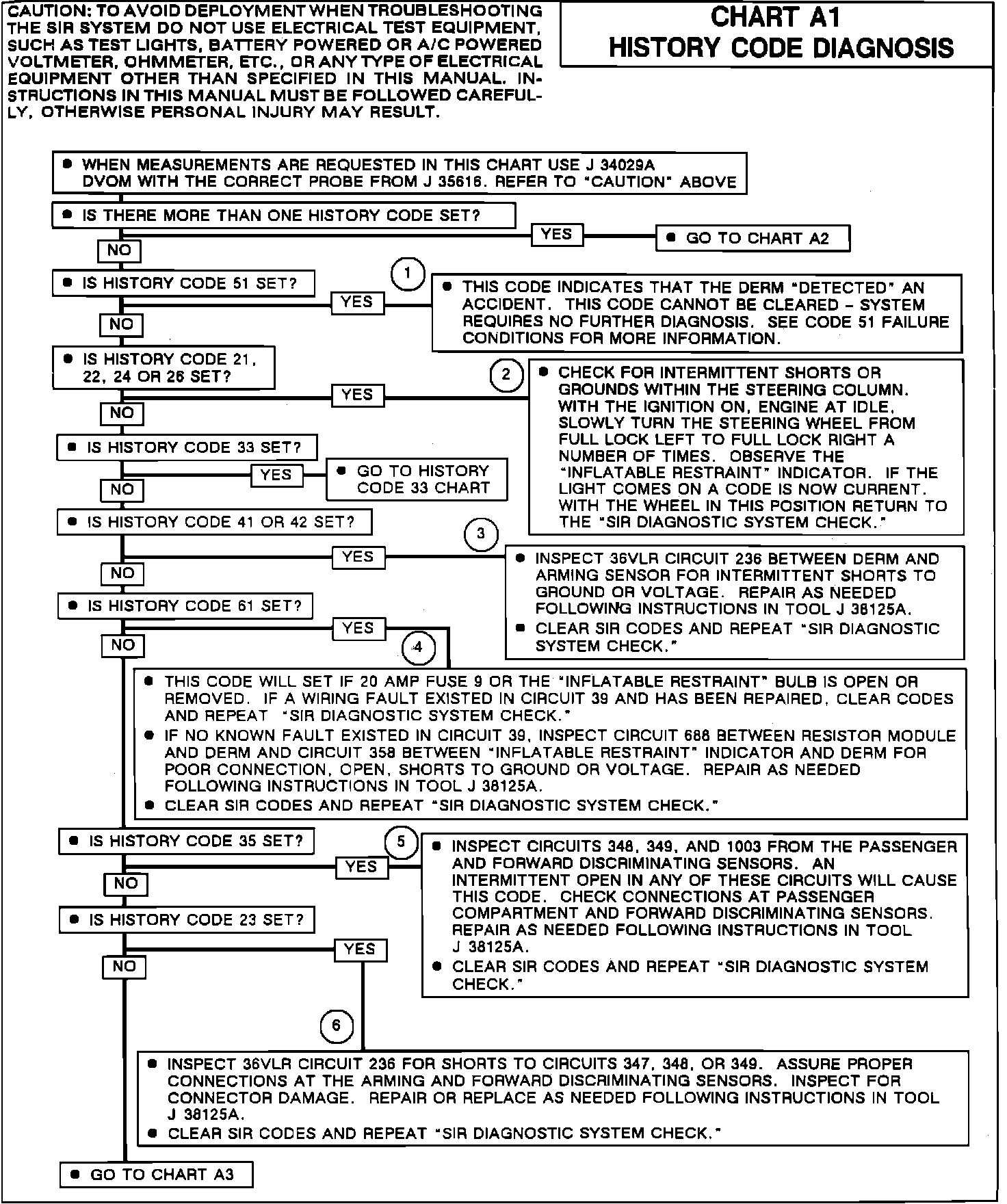

Fig. 29 Chart A1, History Code Diagnosis (Part 1 Of 2).:



Fig. 29 Chart A1, History Code Diagnosis (Part 2 Of 2).:
