Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Fuse Block Diagrams
>>
Fuses 4, 6, 10, 14, 16 and Circuit Breaker 15
Fuses 4, 6, 10, 14, 16 and Circuit Breaker 15

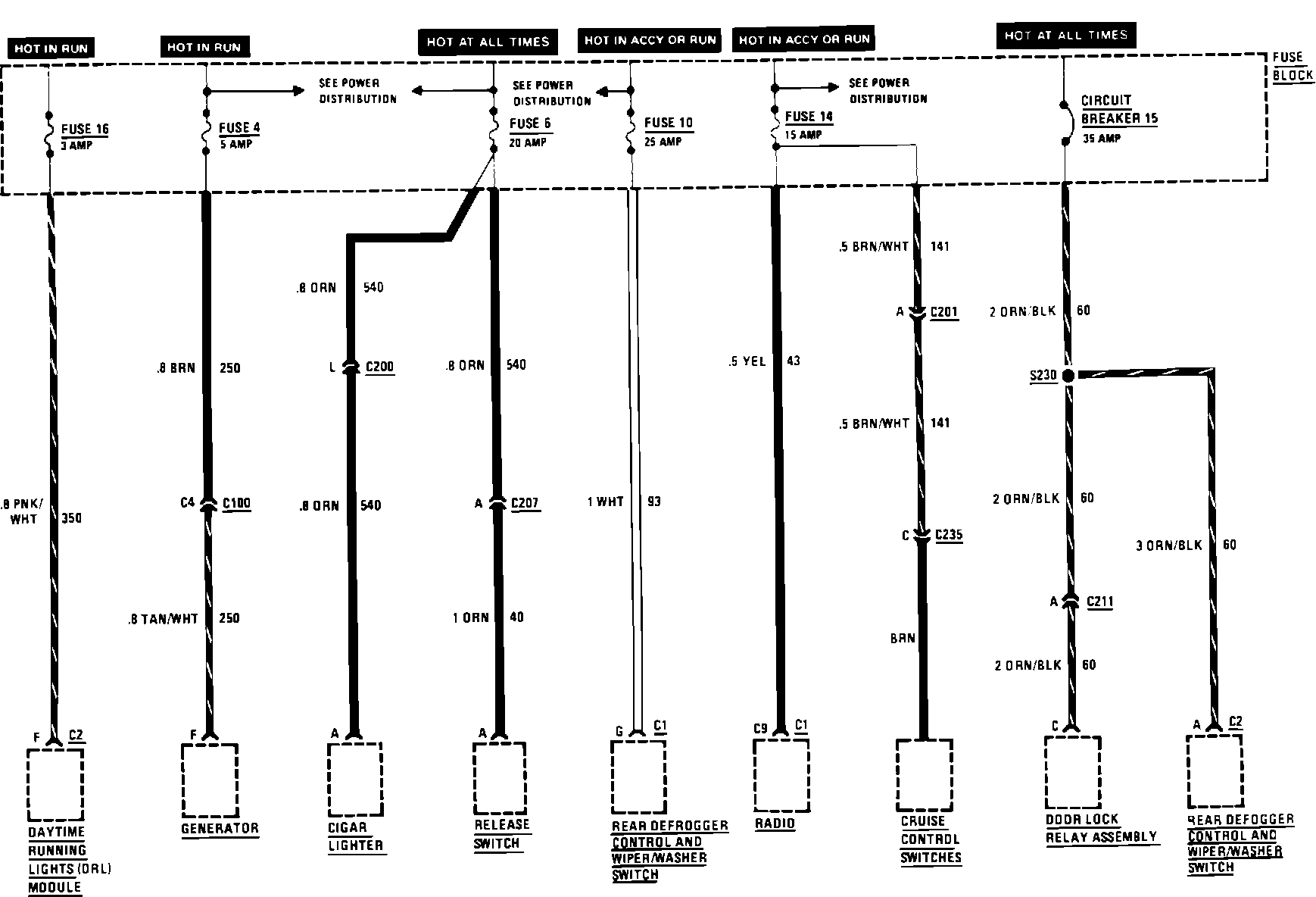

Fuse Block Details: Fuses 4,6,10,14,16 And Circuit Breaker 15:
