Home >> Chevrolet >> 1991 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> DTC 35 >> Chart 2

Chart 2

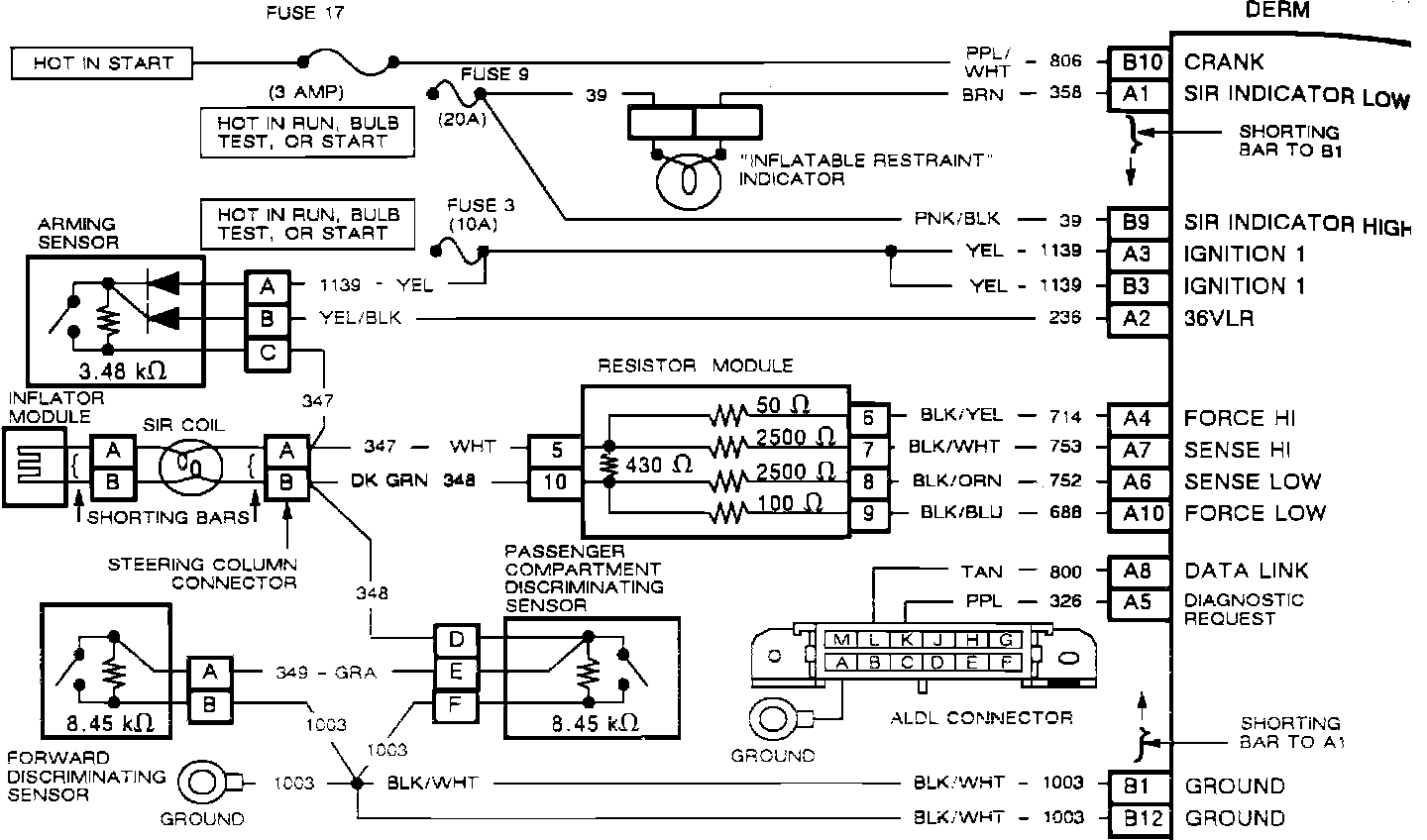

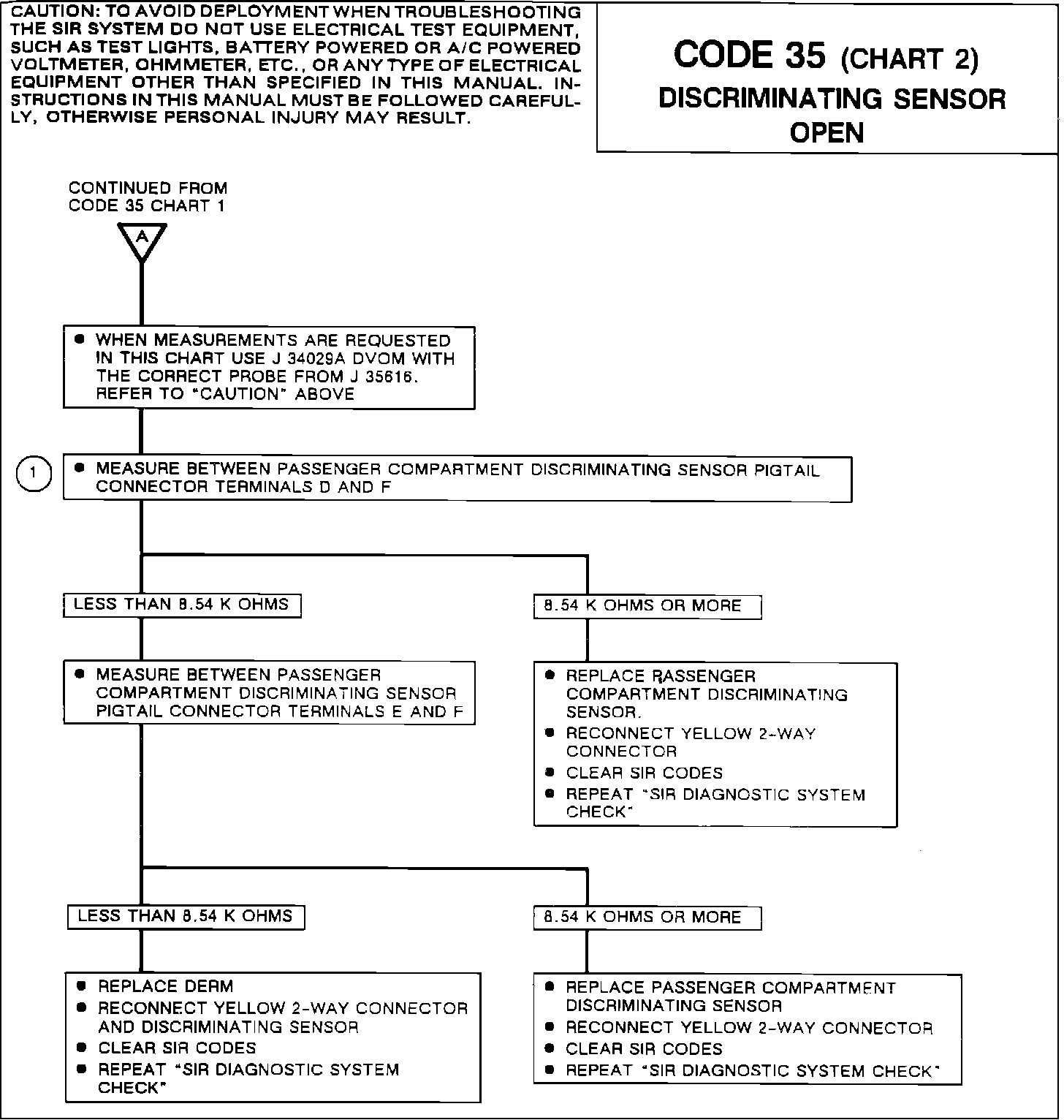

Fig. 224 Code 35 Chart 2, Discriminating Sensor Open (Part 1 Of 2).:



Fig. 224 Code 35 Chart 2, Discriminating Sensor Open (Part 2 Of 2).:
