Electronic/Powertrain Control Module (ECM/PCM)

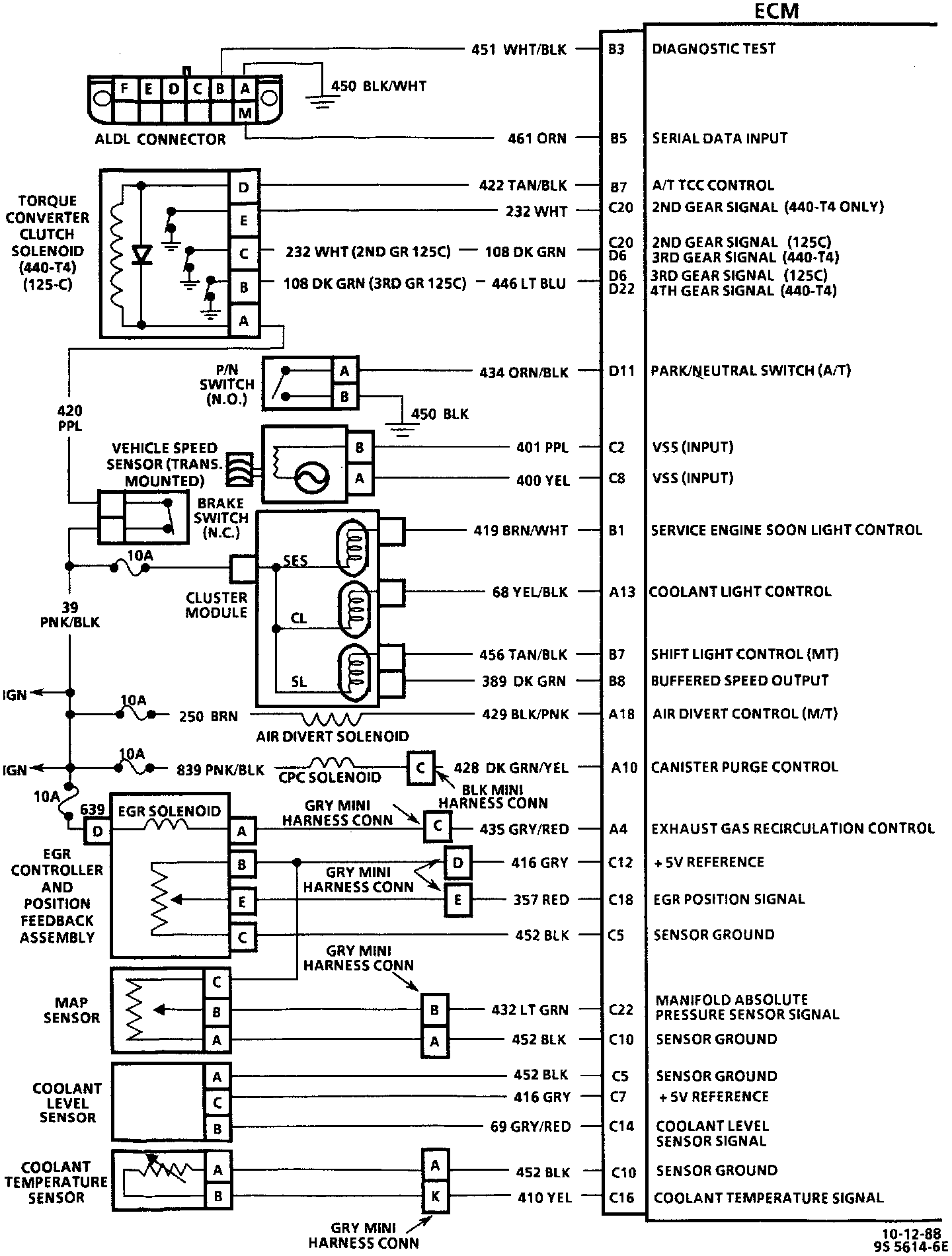

ECM Wiring Schematic (1 Of 3):

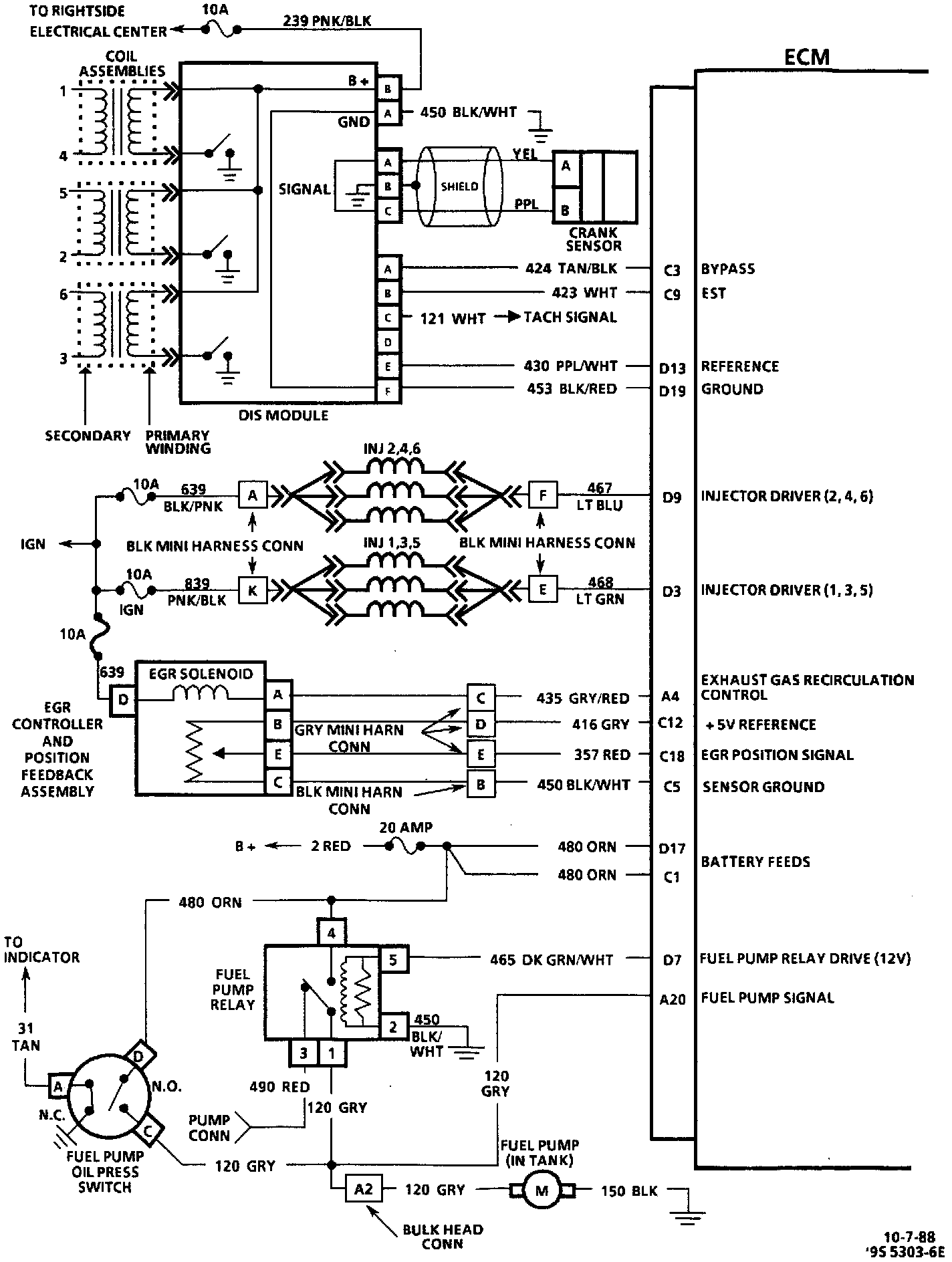

ECM Wiring Schematic (2 Of 3):

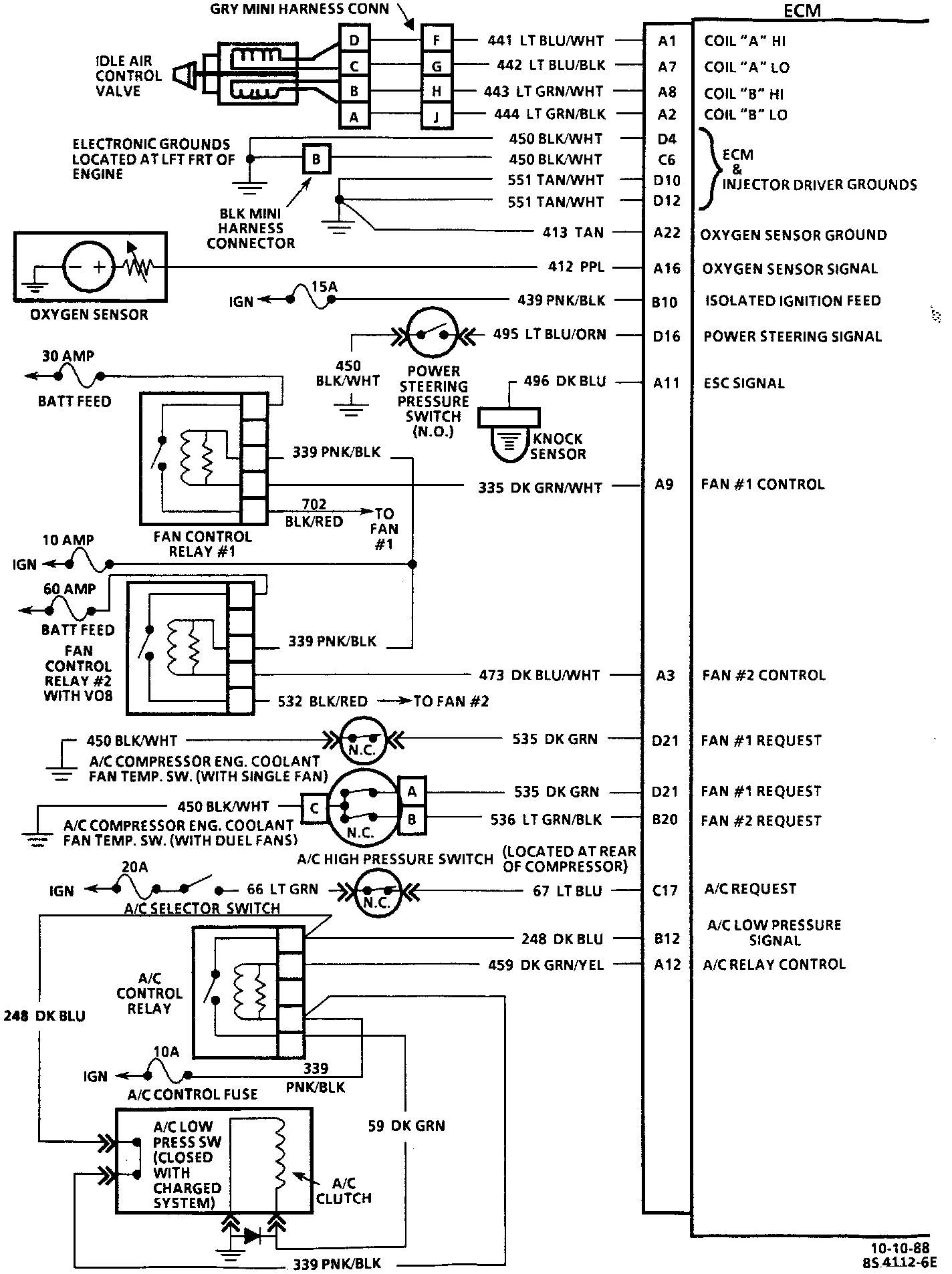

ECM Wiring Schematic (3 Of 3):
