Home >> Chevrolet >> 1990 >> Beretta L4-134 2.2L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Component Tests and General Diagnostics >> A: ECM Compressor Control Test >> Table 1

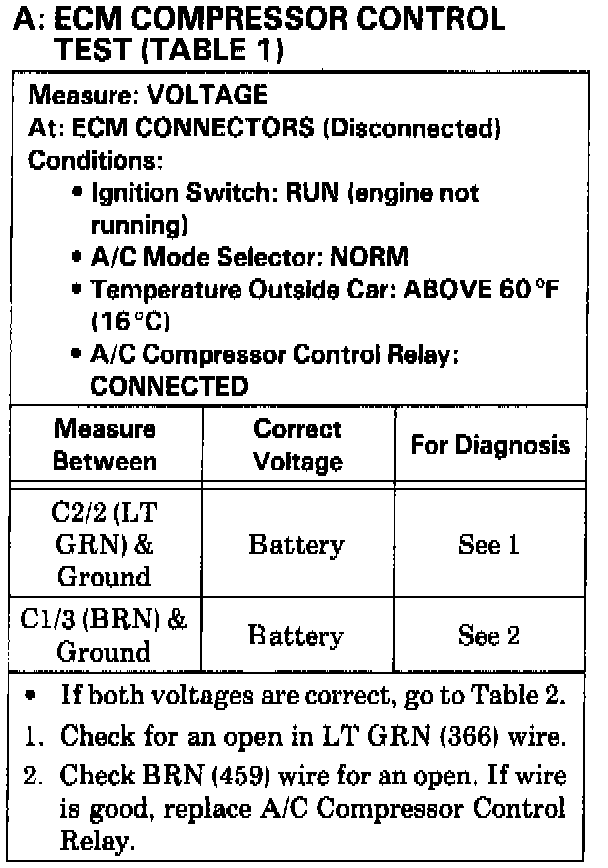

Table 1

Test ( Table 1 ):
