F. Preparation For Shipping

Drain transmission fluid from the concerned unit. Replace the drain plug. Disconnect and retain speed sensor from removed transmission.

Important:
Do not remove transmission shifter. Remove all plastic shipping plugs and covers from the exchange unit and install them on the removed unit.

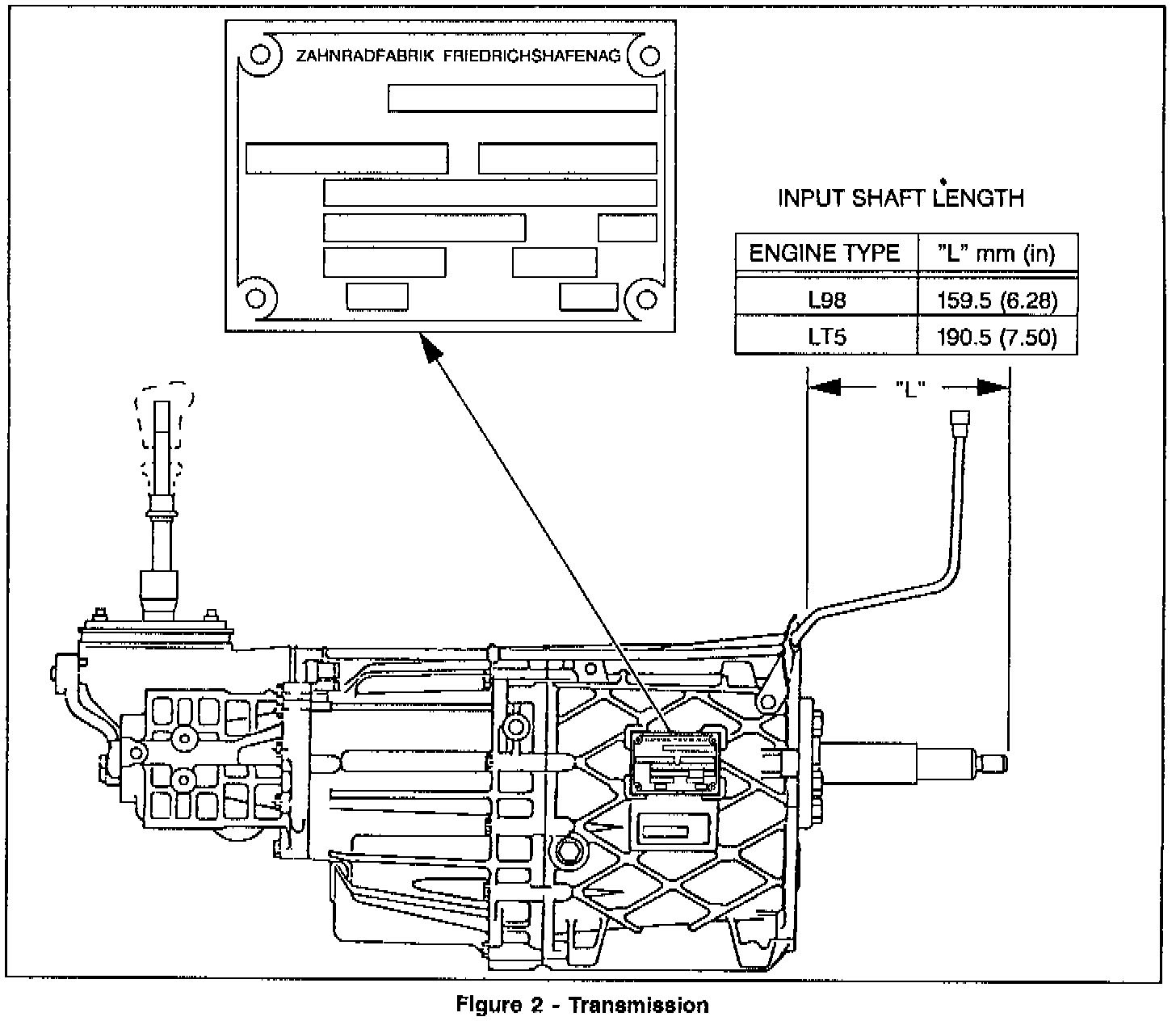

Complete the information on the complaint tag. Refer to the identification tag explanation chart.

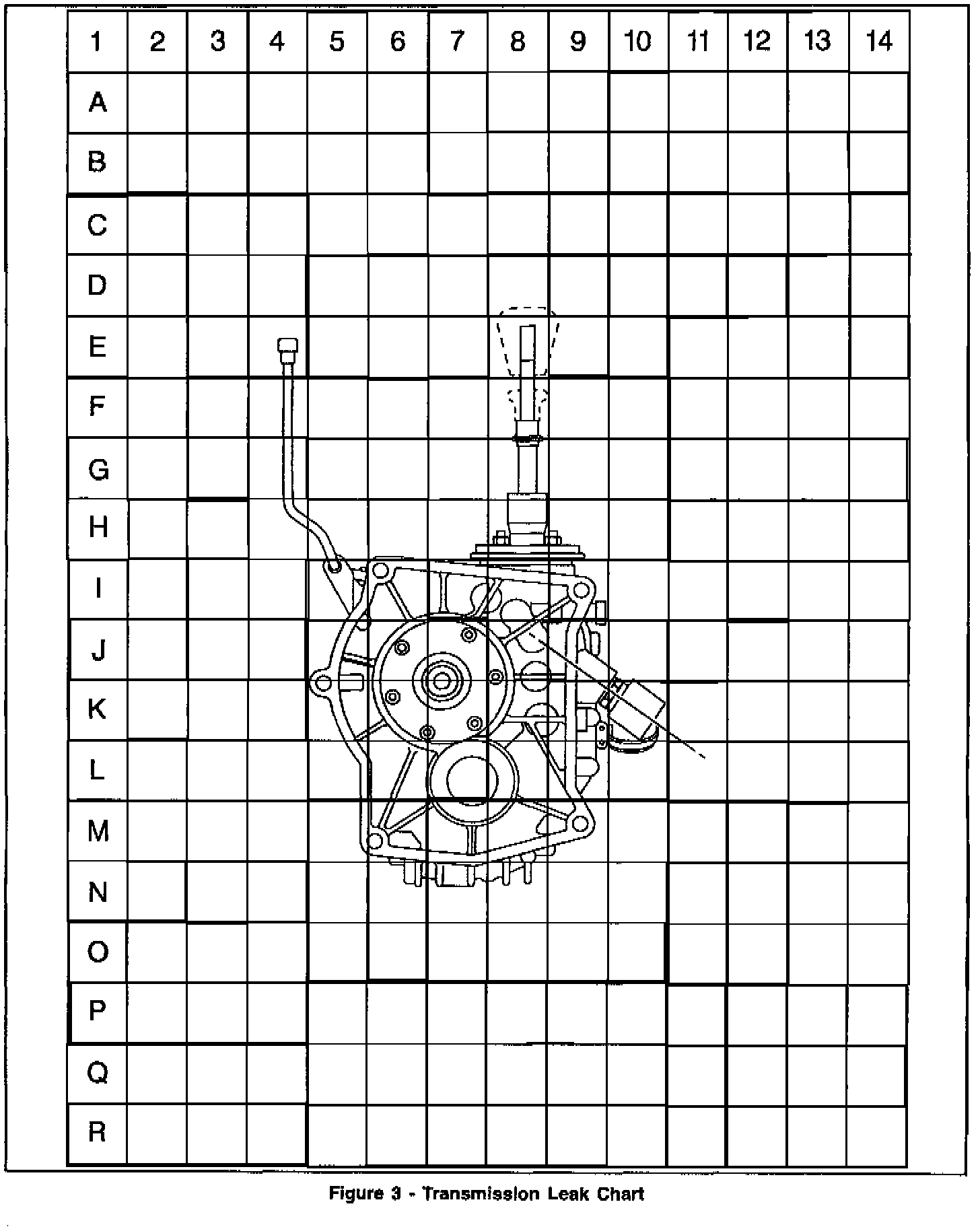

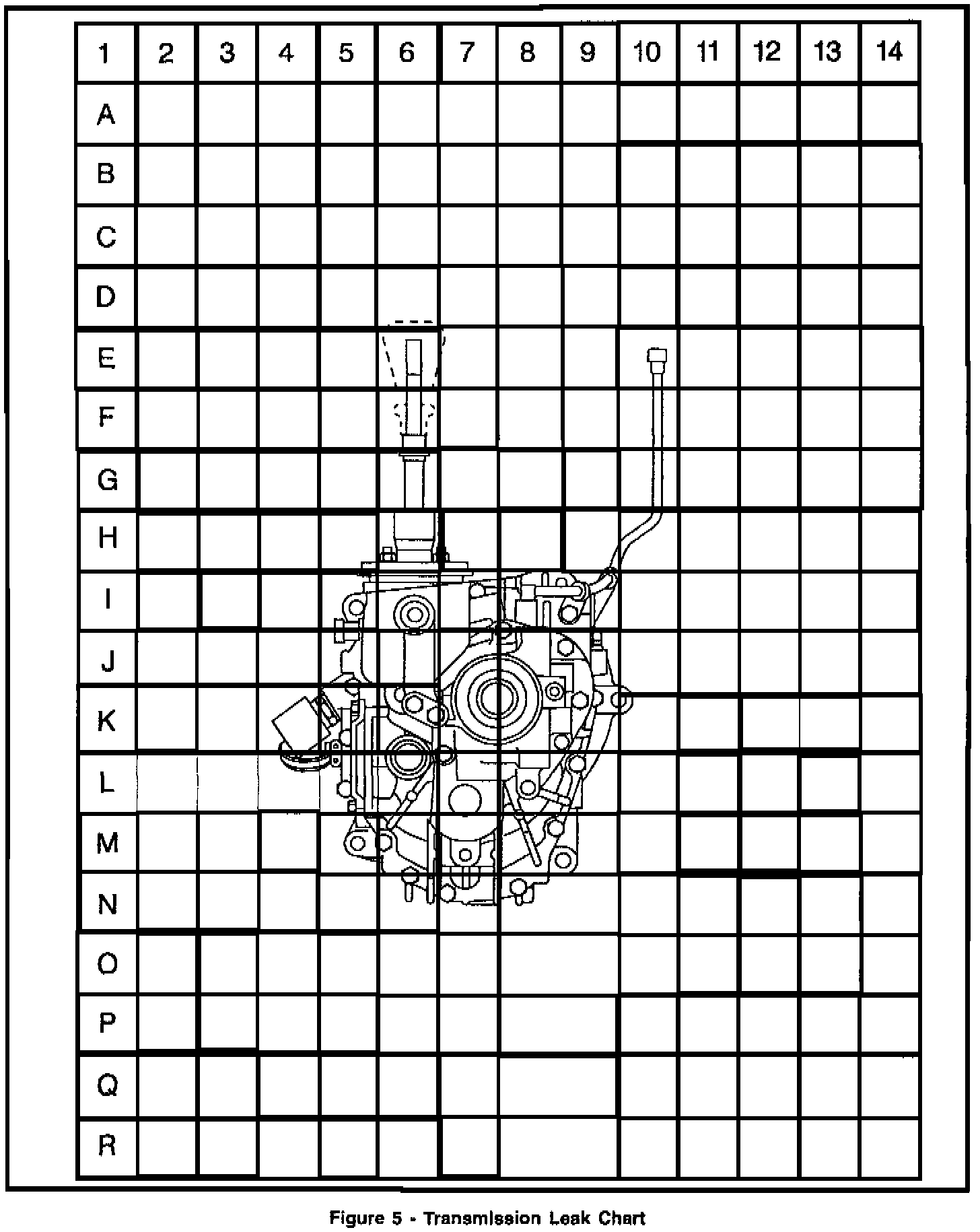

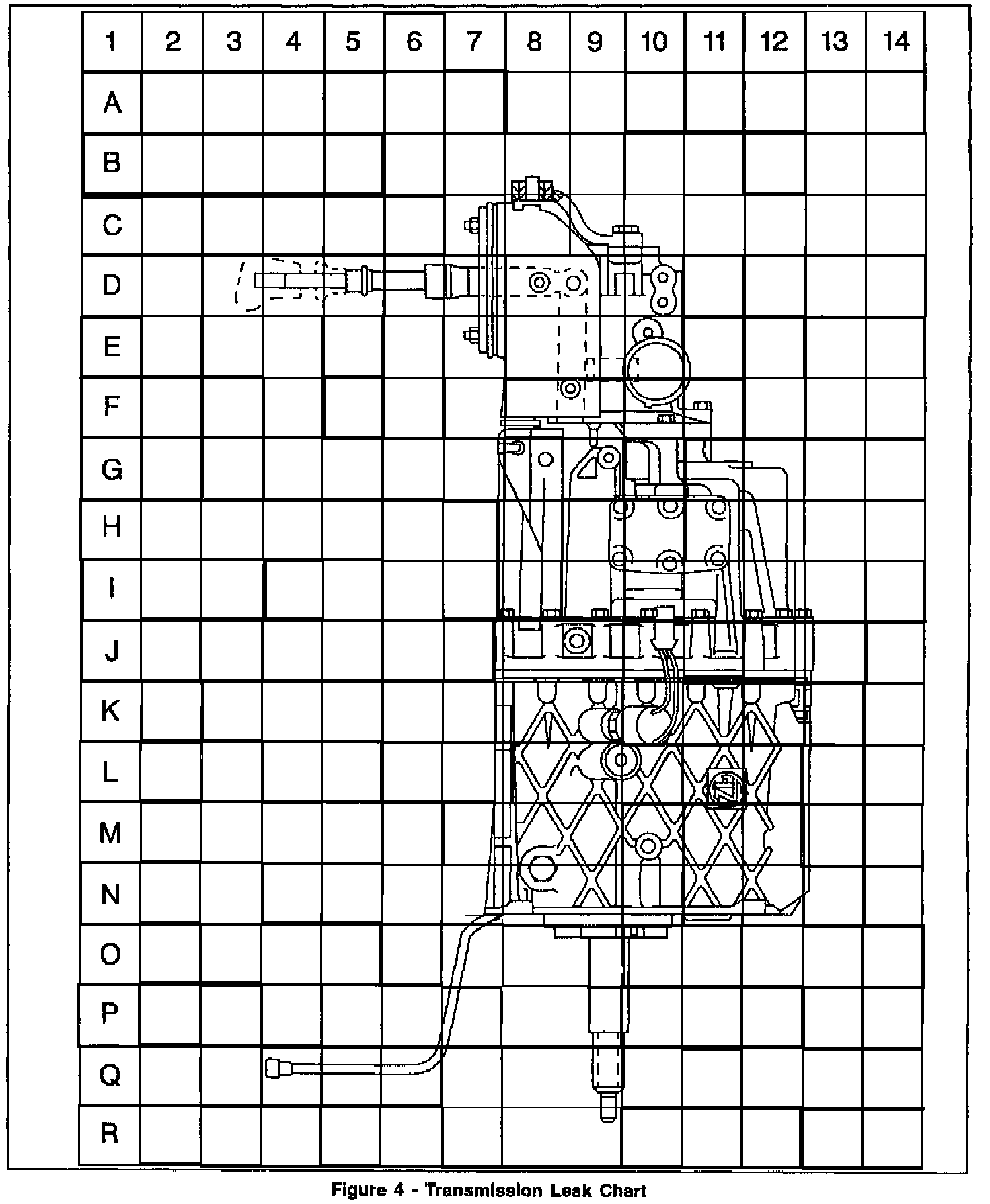

If transmission leaks (see illustrations attached), clean leak areas, powder, and mark leak area on transmission. Mark area of leakage on illustrations with red pen. Write TAN reference number on leak identification forms.

Fold the report form, staple it to the complaint tag and secure the tag to the clutch housing bolt hole of the removed unit. Fold and staple the leak identification forms to the same tag.

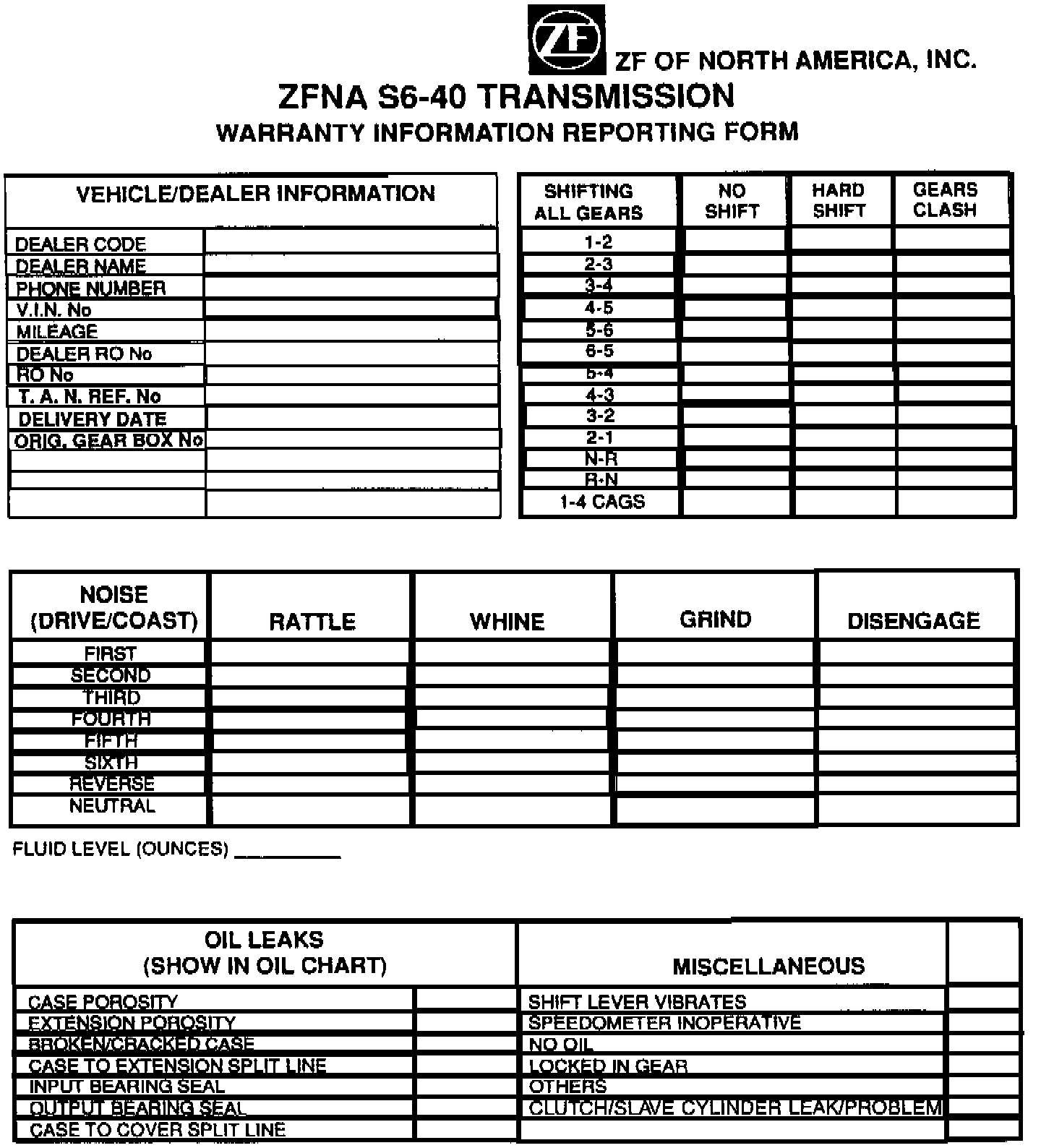

Write the TAN reference number on the case cover of the removed transmission and on the Warranty Information Reporting Form.

Repack the removed unit into the original shipping container.

Place leak identification charts and copy of repair order in original envelope and attach to original transmission.
