Vehicle Data Sensors & Torque Converter Clutch (TCC)

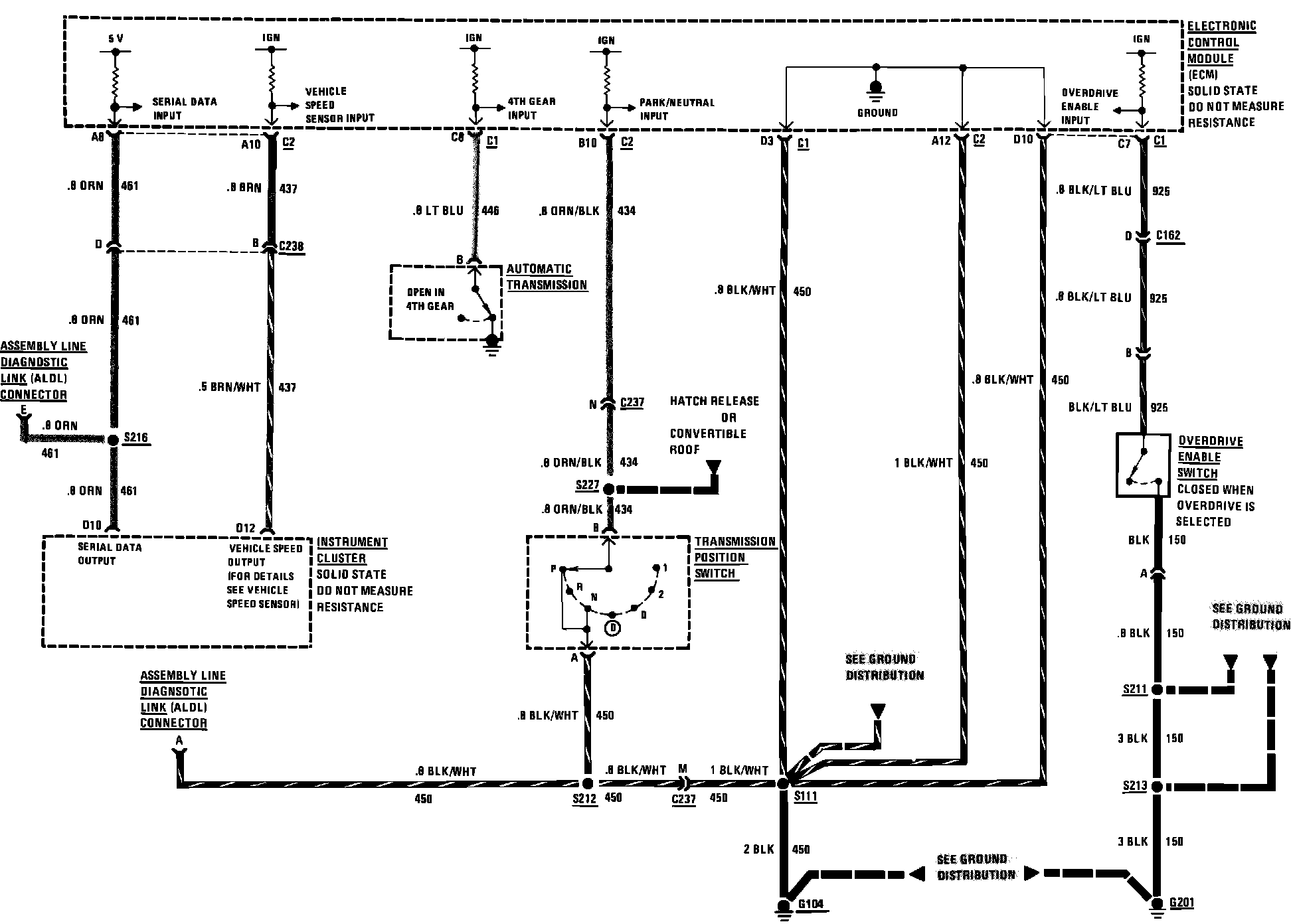

Multi Port Fuel Injection-Vehicle Sensors & Transmission Converter Clutch, Automatic Transmission (Part 1 Of 2):

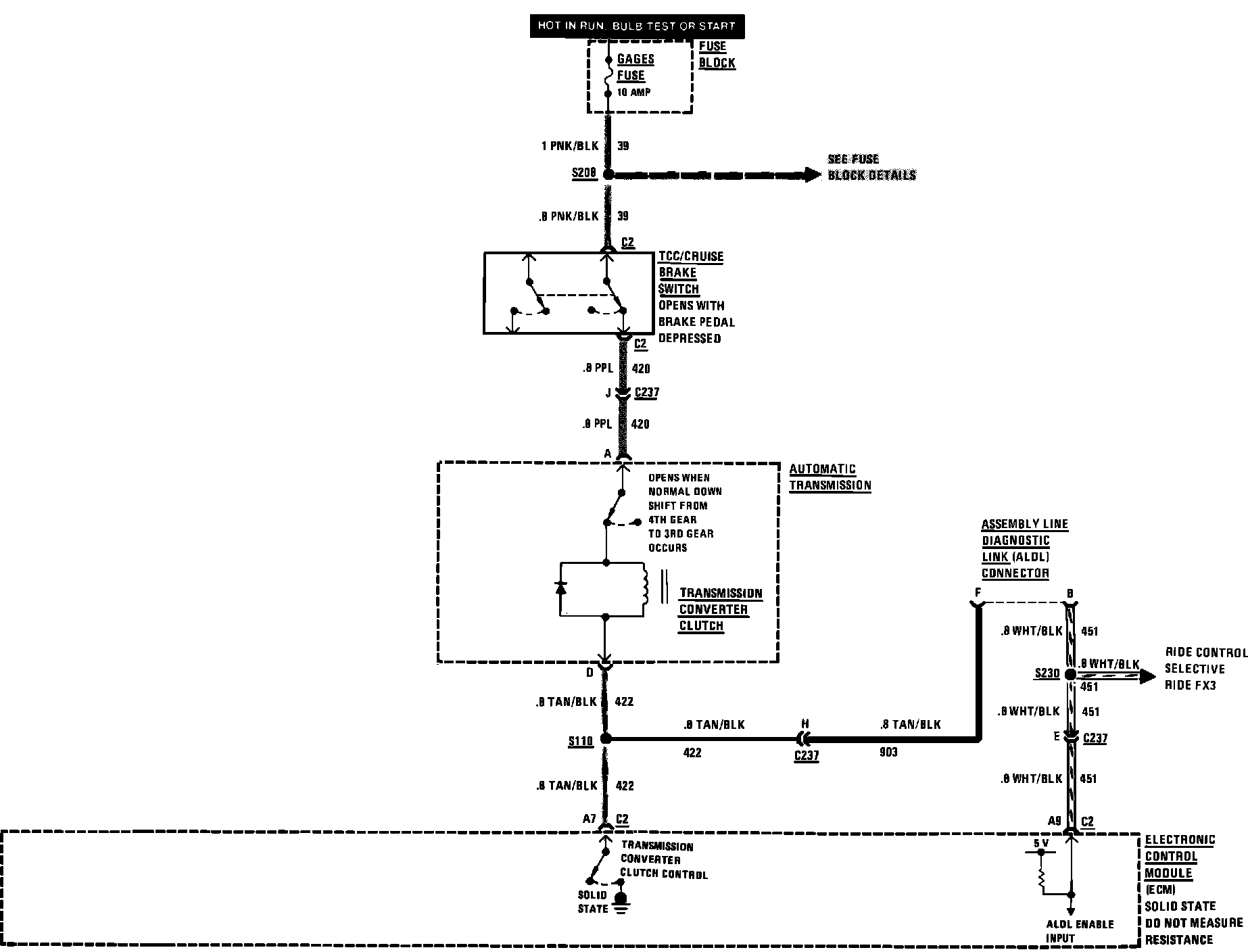

Multi Port Fuel Injection-Vehicle Sensors & Transmission Converter Clutch, Automatic Transmission (Part 2 Of 2):
