Brake Lamp: Service and Repair

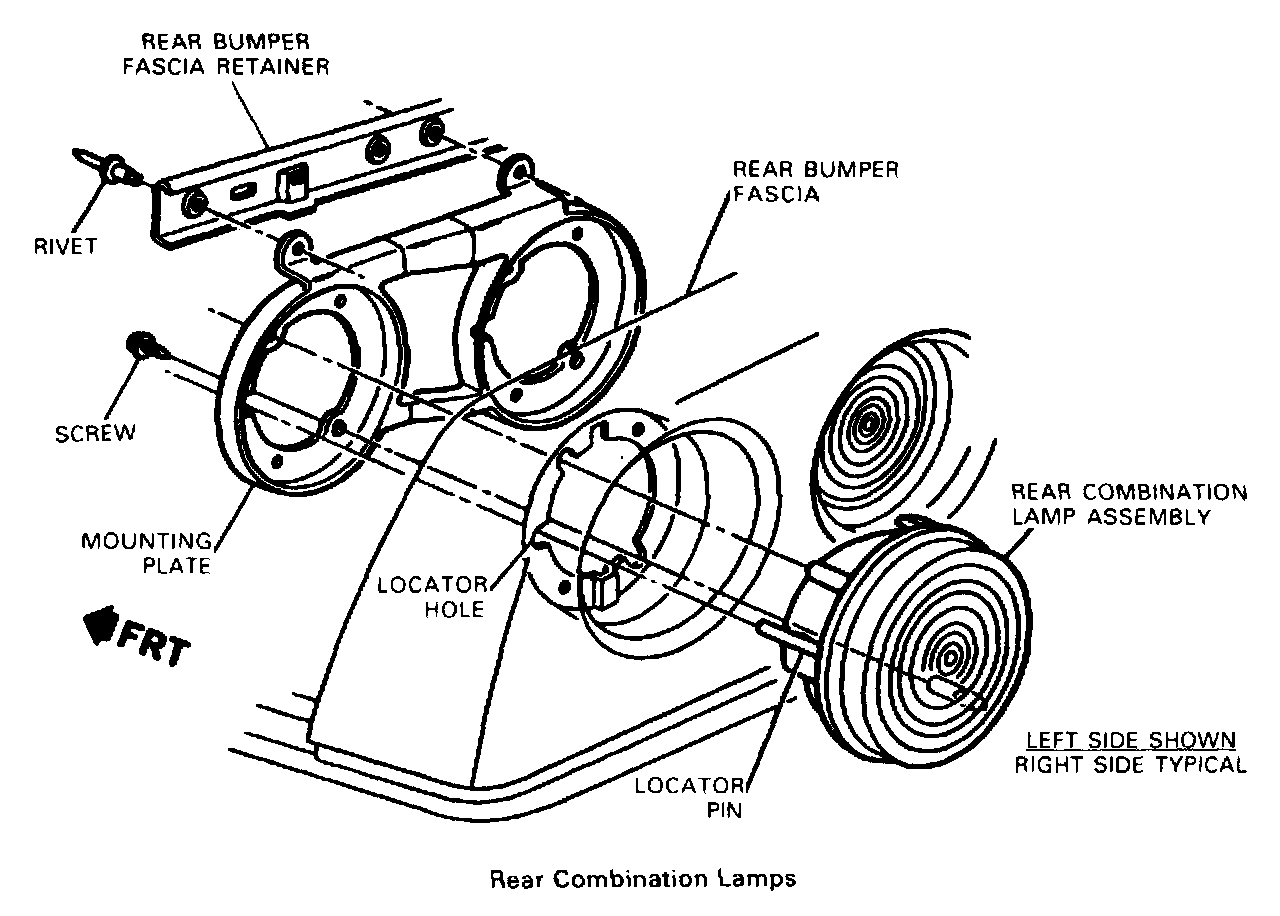

REAR COMBINATION LAMPS






Remove or Disconnect
1. Rear fascia. Service and Repair
2. Two screws from assembly.
3. Lamp assembly.
4. Bulb and socket from assembly.

Install or Connect
1. Bulb and socket into assembly.
2. Lamp assembly. Align locator pin with hole in mounting plate.
3. Three screws.
4. Rear fascia.
