With Electronic A/C

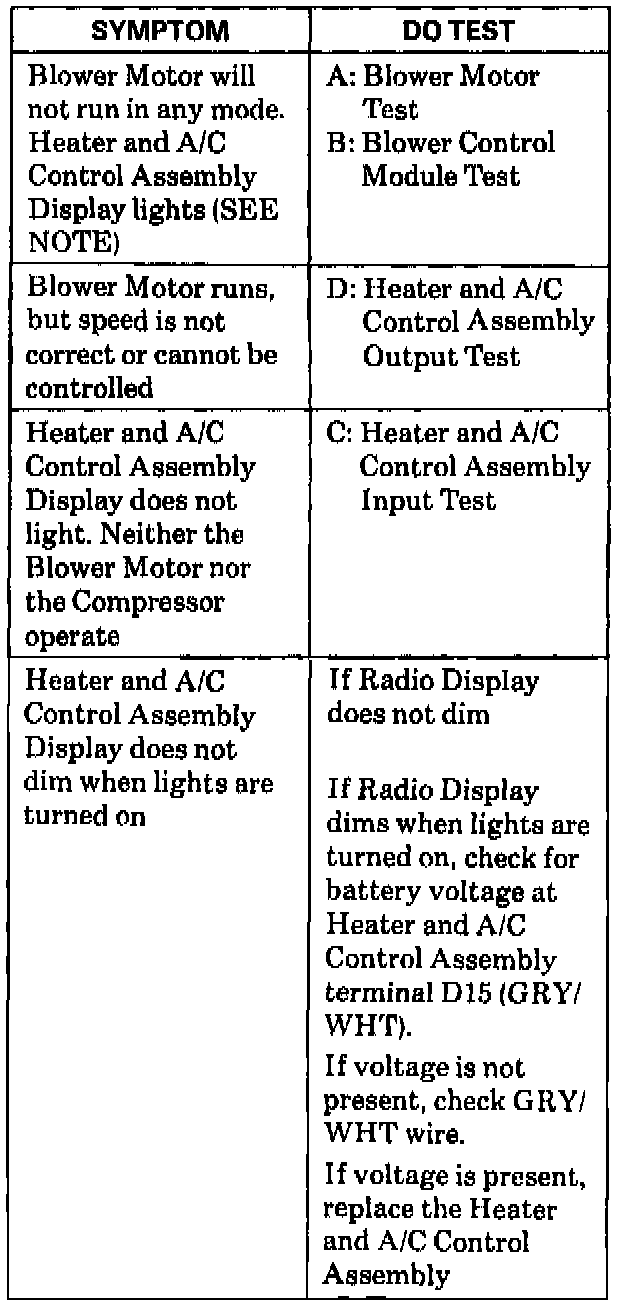

Symptom Table:

Do the test listed for your symptom in the Symptom Table.

NOTE: A no blower operation condition will occur for 1.5 minutes while the Air Mix Door Actuator recalibrates. Recalibration will occur whenever the Battery, Heater and A/C Control Assembly or Air Mix Door Actuator have been disconnected.
