Home
>>
Chevrolet
>>
1989
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Diagrams
>>
Electrical Diagrams
>>
With Manual A/C
With Manual A/C

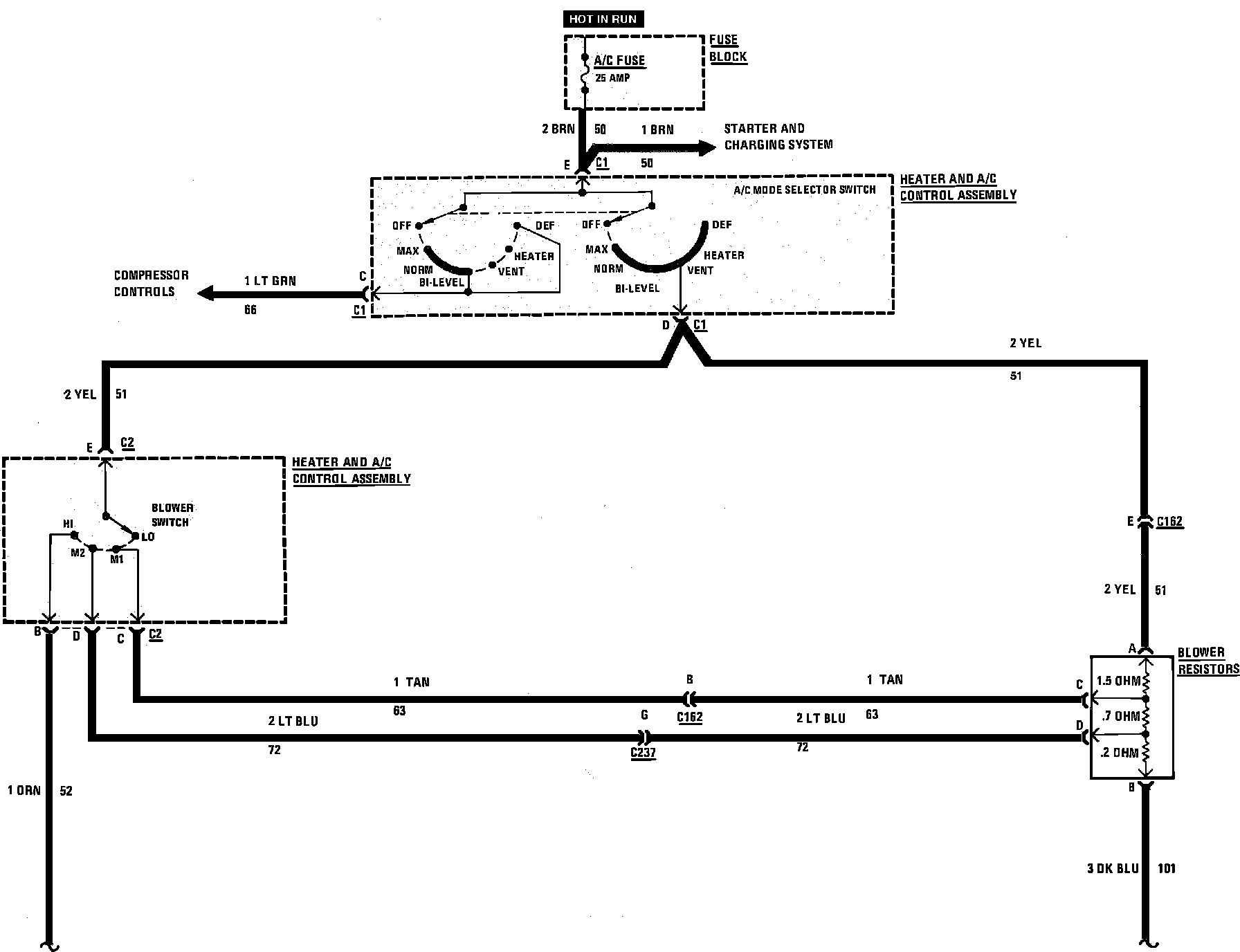

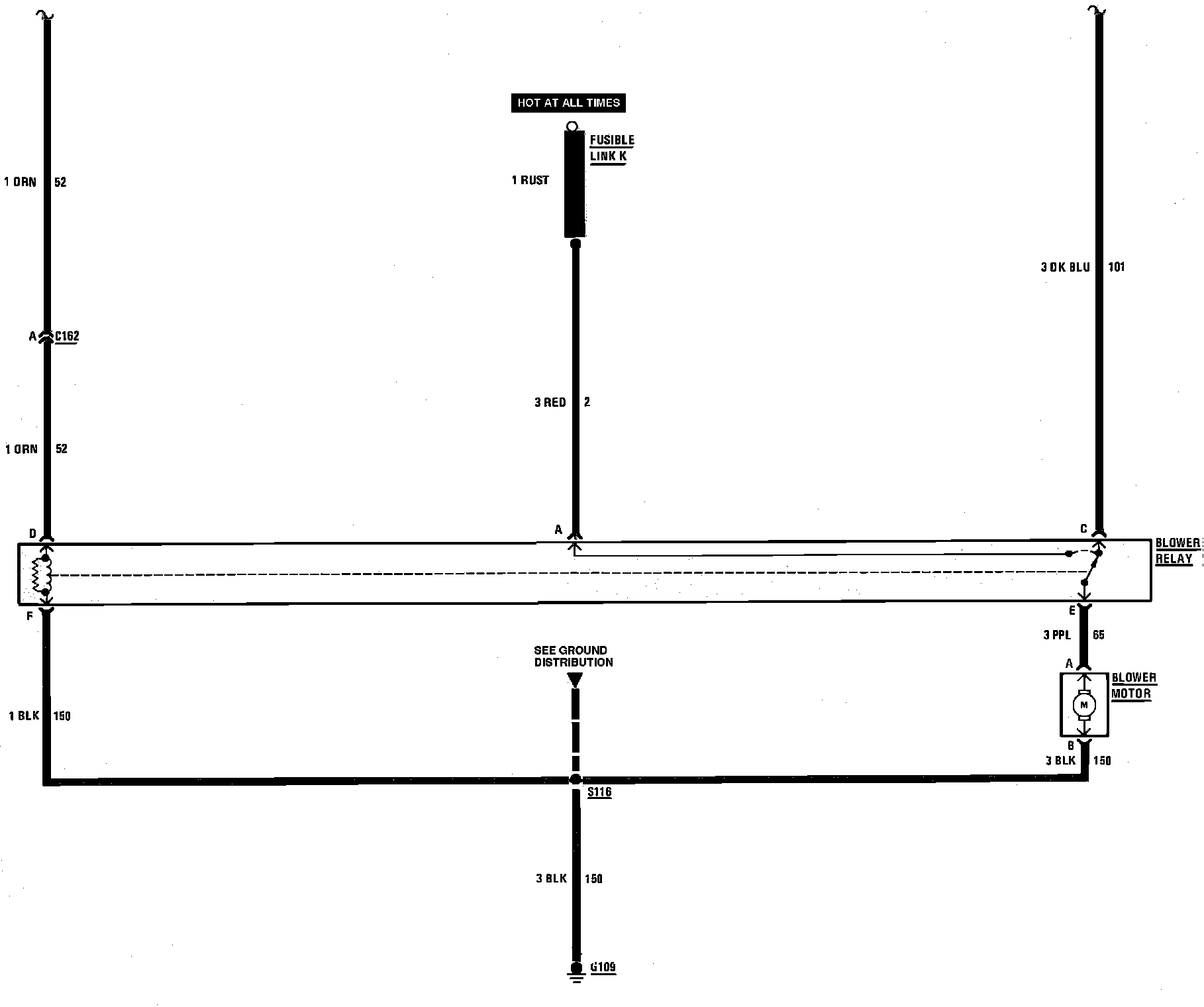

Air Conditioning Blower Controls (Manual):
Air Conditioning Blower Controls (Manual):
