Wiper, Fuse Pump & Defogger
Wiper, Fuse Pump & Defogger

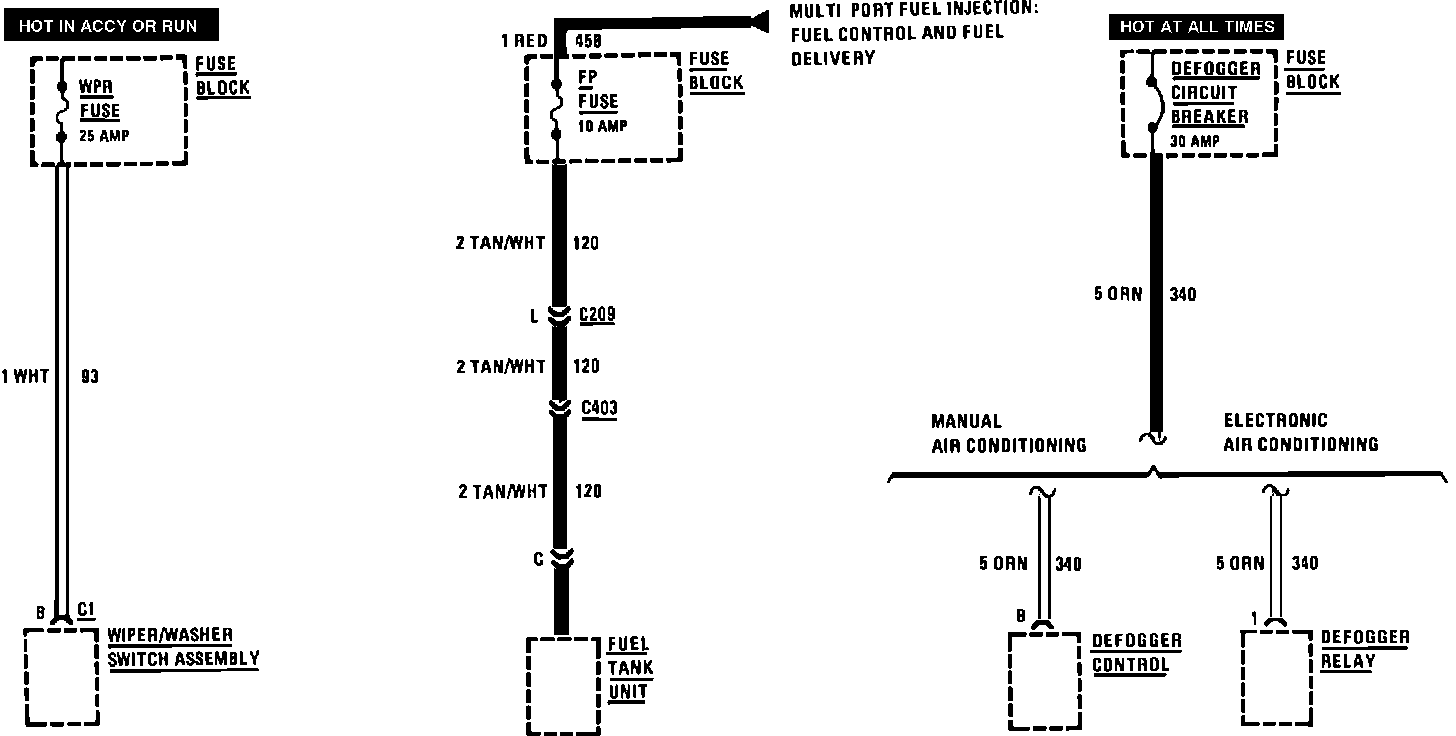

Fuse Block Details (Wiper, Fuel Pump & Defogger):
