Brake, Hatch & Tail
Brake, Hatch & Tail

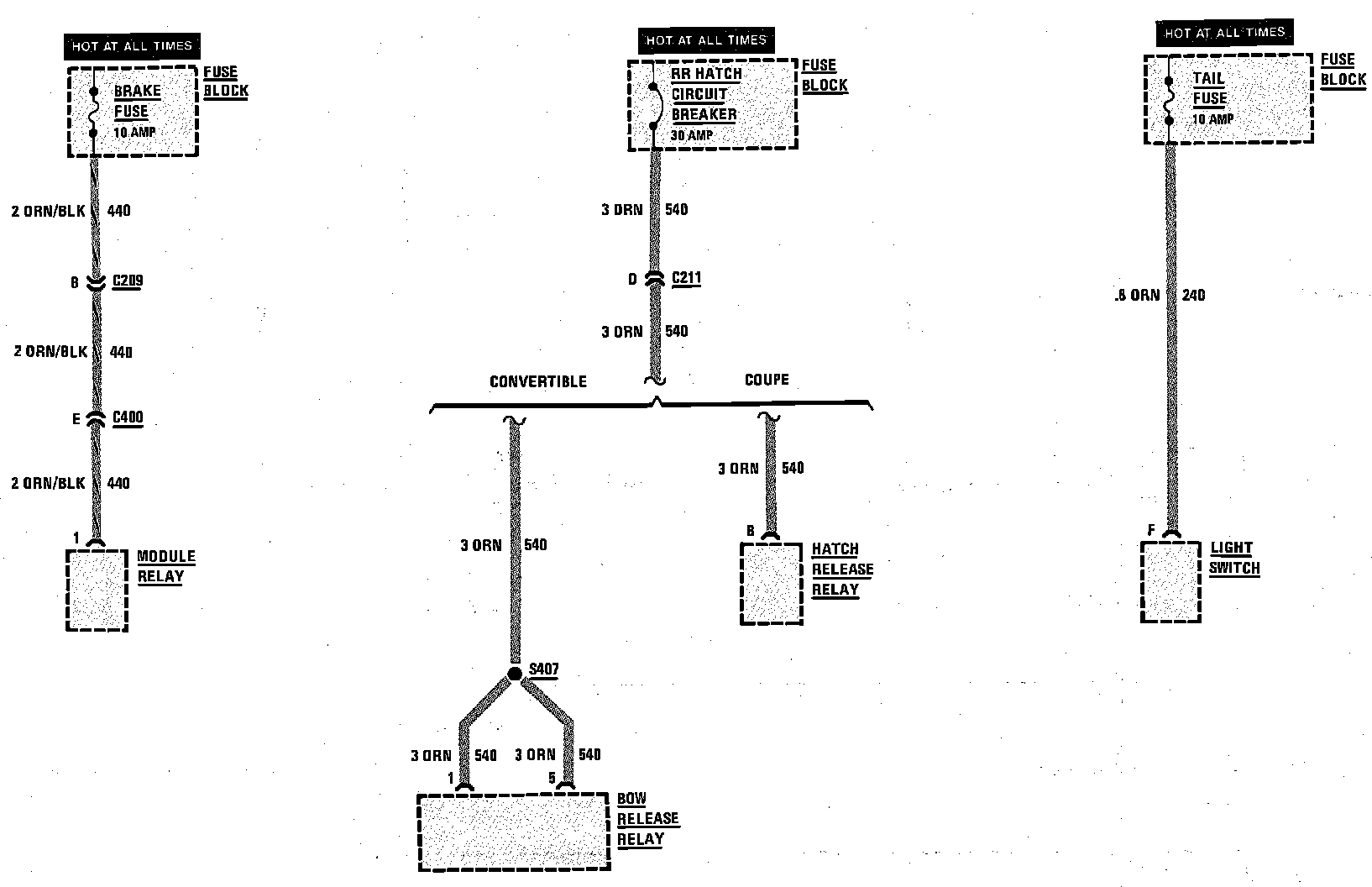

Fuse Block Details (Brake Fuse, Rear Hatch Circuit Breaker & Tail Fuse):
