Manual A/C Only

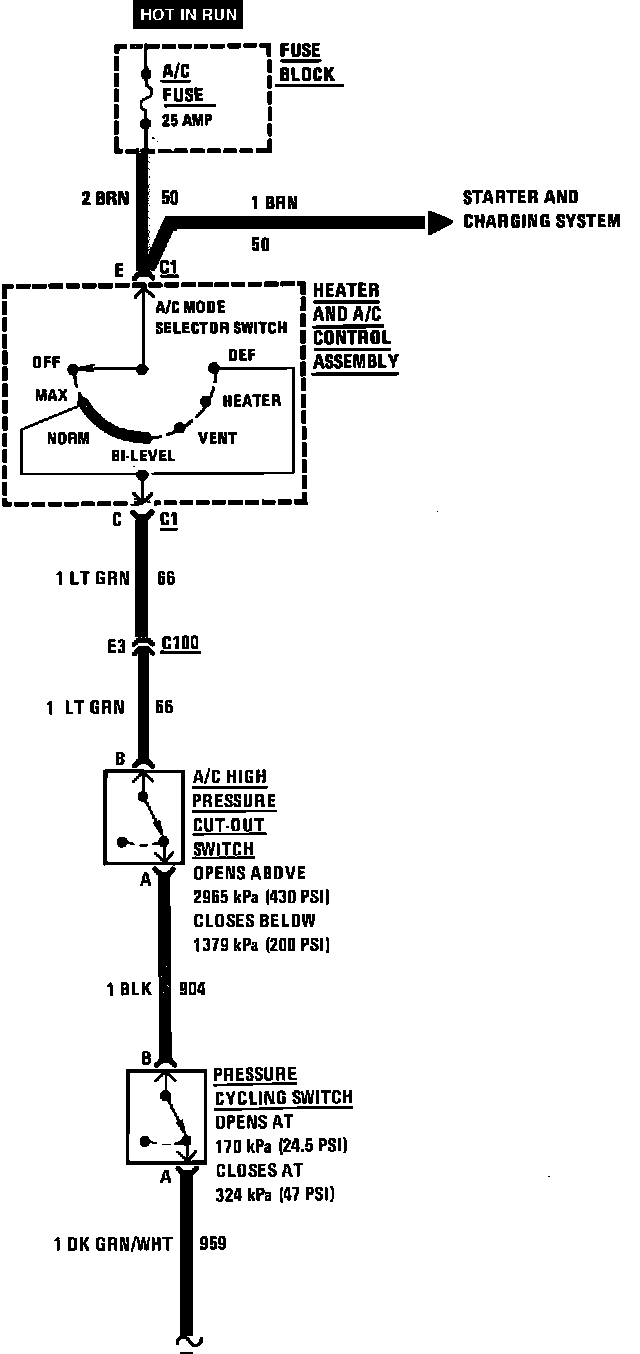

Air Conditioning Compressor Controls (Manual):

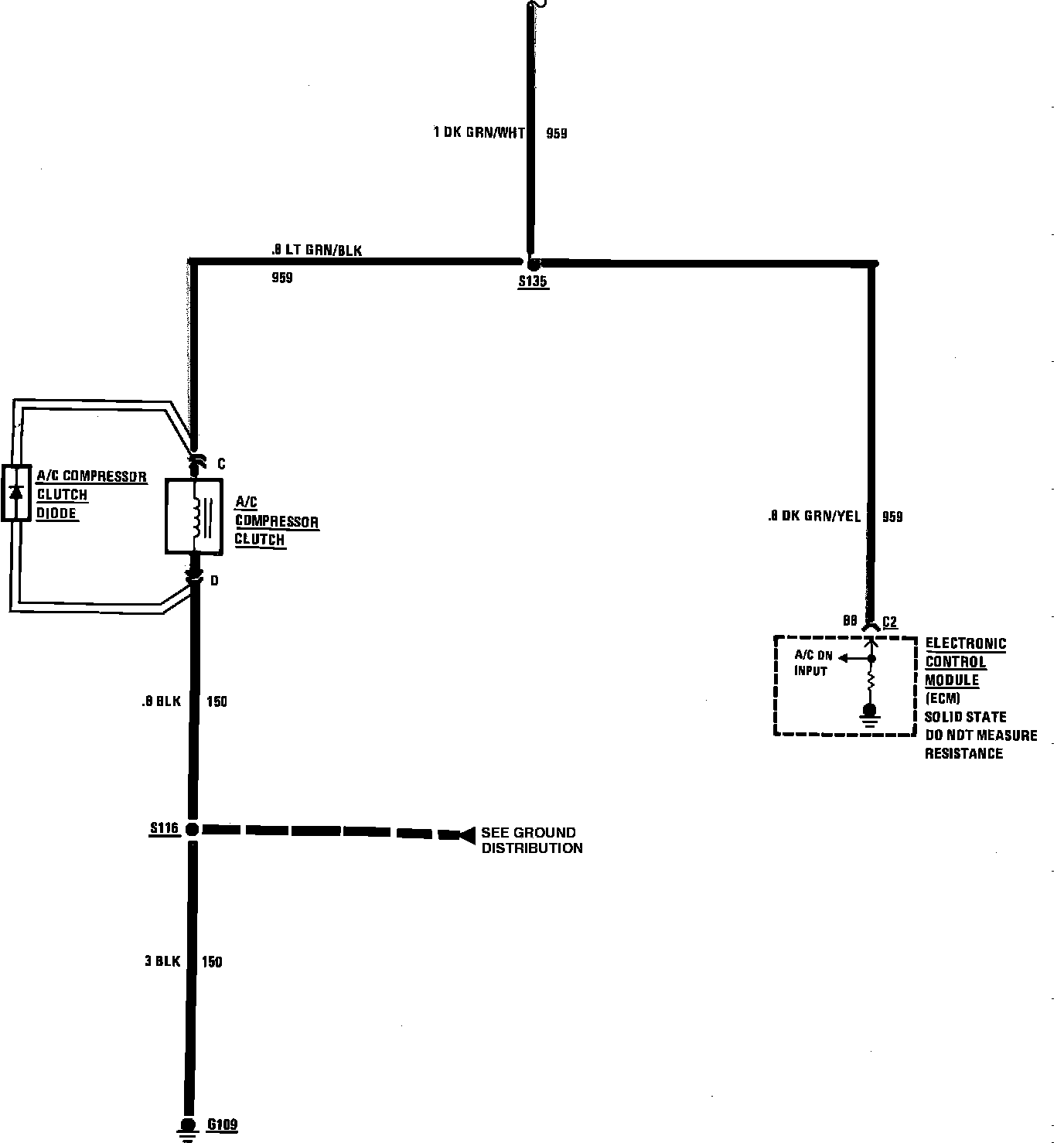

Air Conditioning Compressor Controls (Manual):
