Chevrolet
>>
1989
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Headlamp
>>
System Diagram
System Diagram

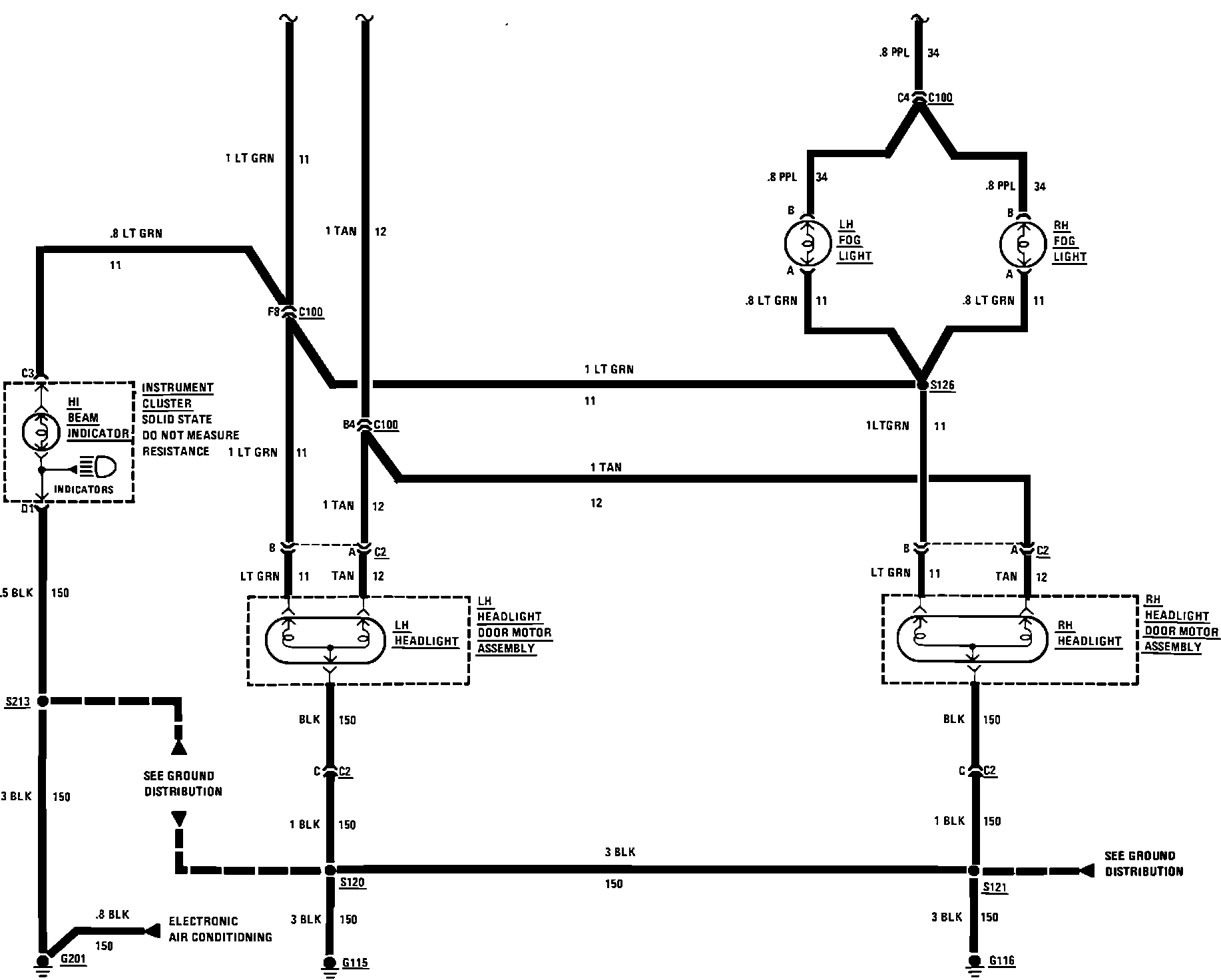

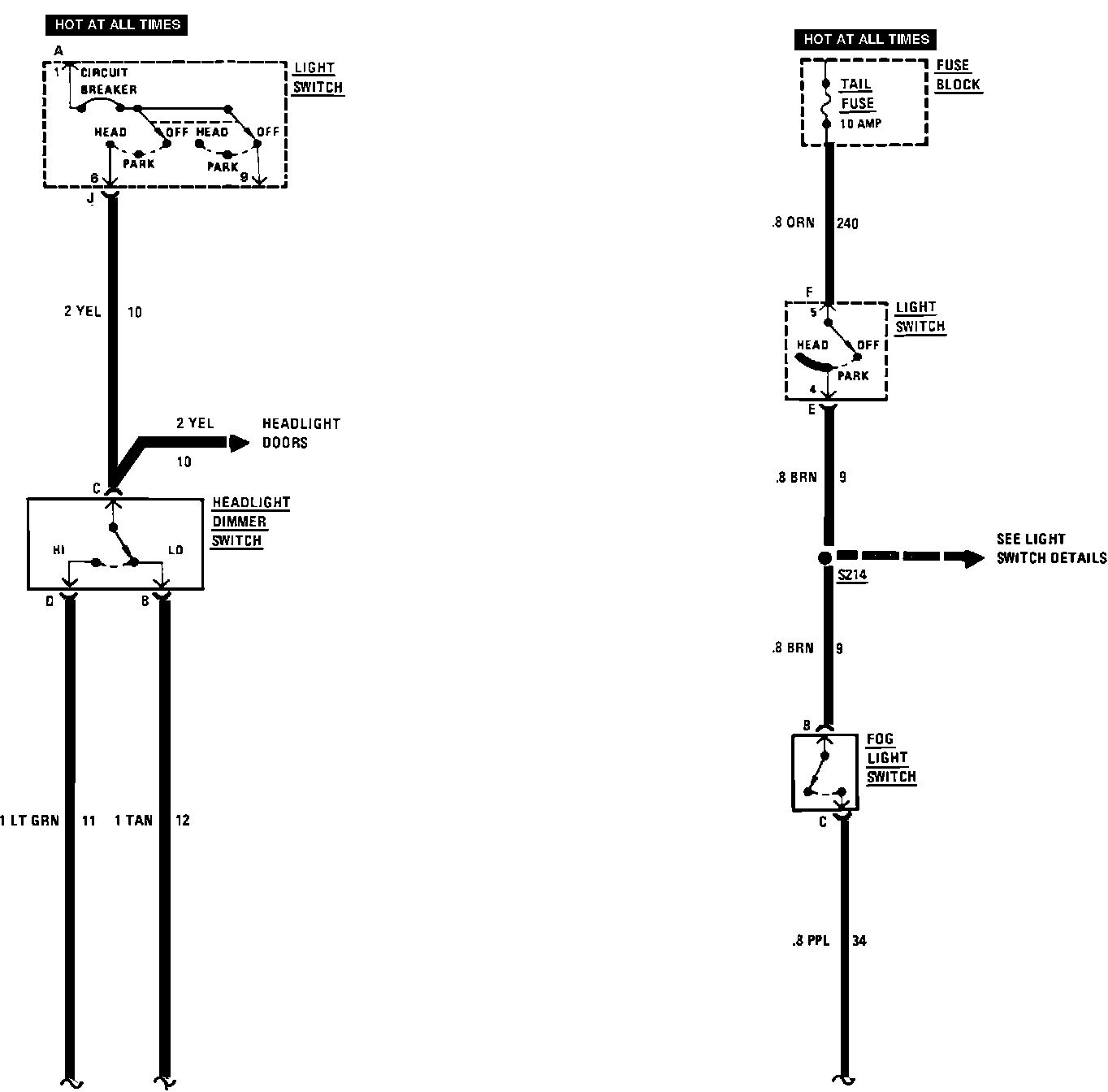

Fog Lights & Headlights:
Fog Lights & Headlights:
