G: Pump Motor Relay Test

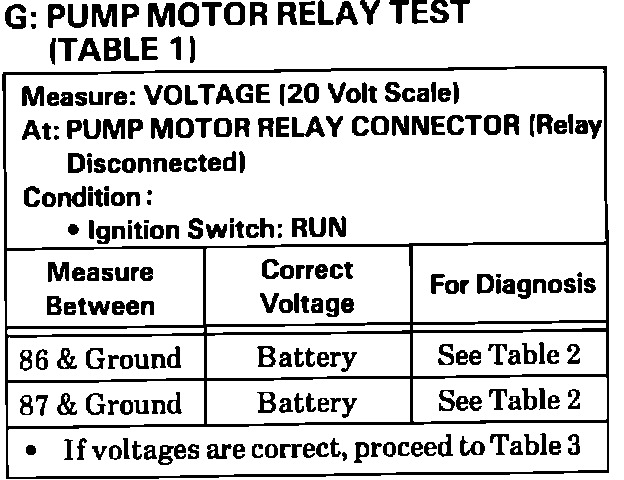

Fig. 15 Pump Motor Relay Test (Part 1 Of 3). 1989:



Fig. 15 Pump Motor Relay Test (Part 2 Of 3). 1989:

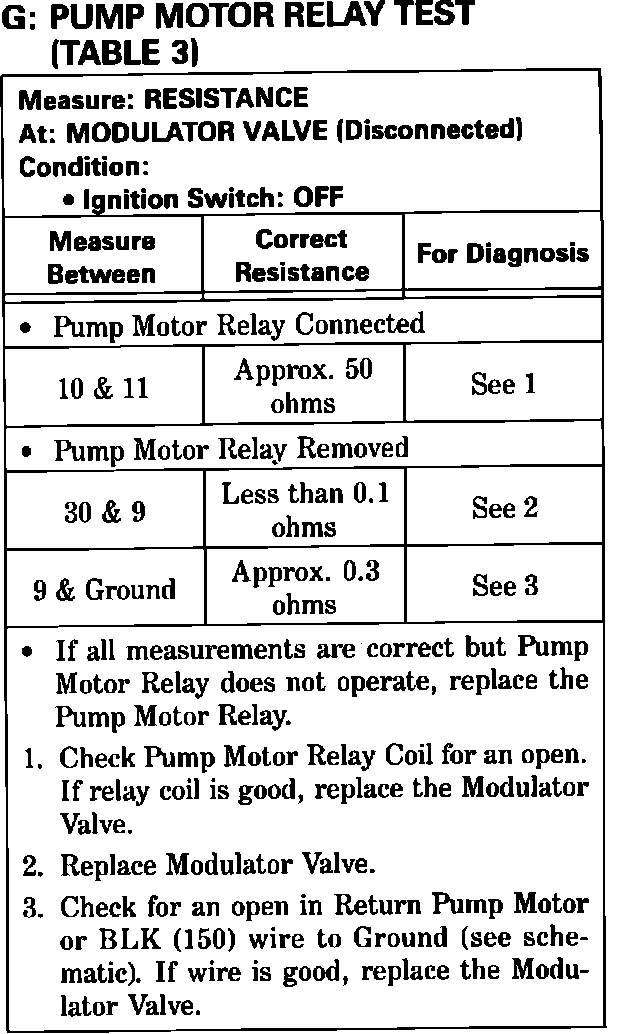

Fig. 15 Pump Motor Relay Test (Part 3 Of 3). 1989:
