System Specifications

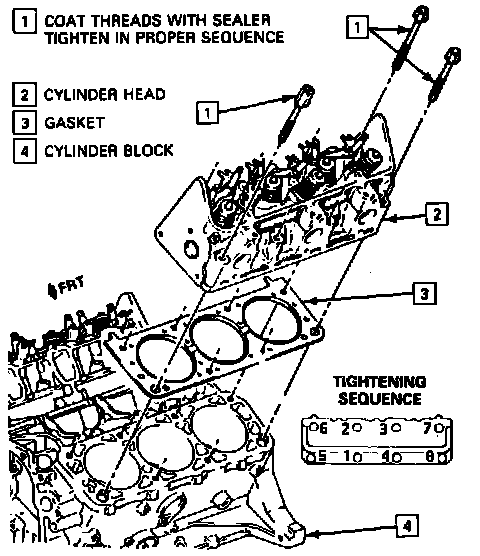

Cylinder Head BoltsFig. 5 Cylinder Head Tightening Sequence:
In the sequence shown in figure 5:
^ Torque bolts to 45 Nm (33 ft lbs)
^ Turn bolts an additional 90° (1/4 turn)
In the sequence shown in figure 5:
^ Torque bolts to 45 Nm (33 ft lbs)
^ Turn bolts an additional 90° (1/4 turn)
