Piston & Rod Assembly

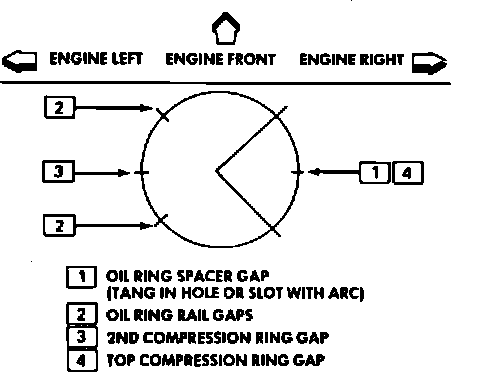

Fig. 10 Locating Pin Ring Gaps:

Install rings on pistons as shown in Fig. 10.
Pistons, pins and rings are available in standard and oversizes.

Fig. 9 Piston & Rod Assembly:

Assemble piston to rod with mark on piston and rod both facing toward front of engine, Fig. 9. Rod may not be marked.
