Home >> Chevrolet >> 1989 >> Celebrity V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Circuit Breaker >> Windows >> Station Wagon >> Less Power Windows

Less Power Windows

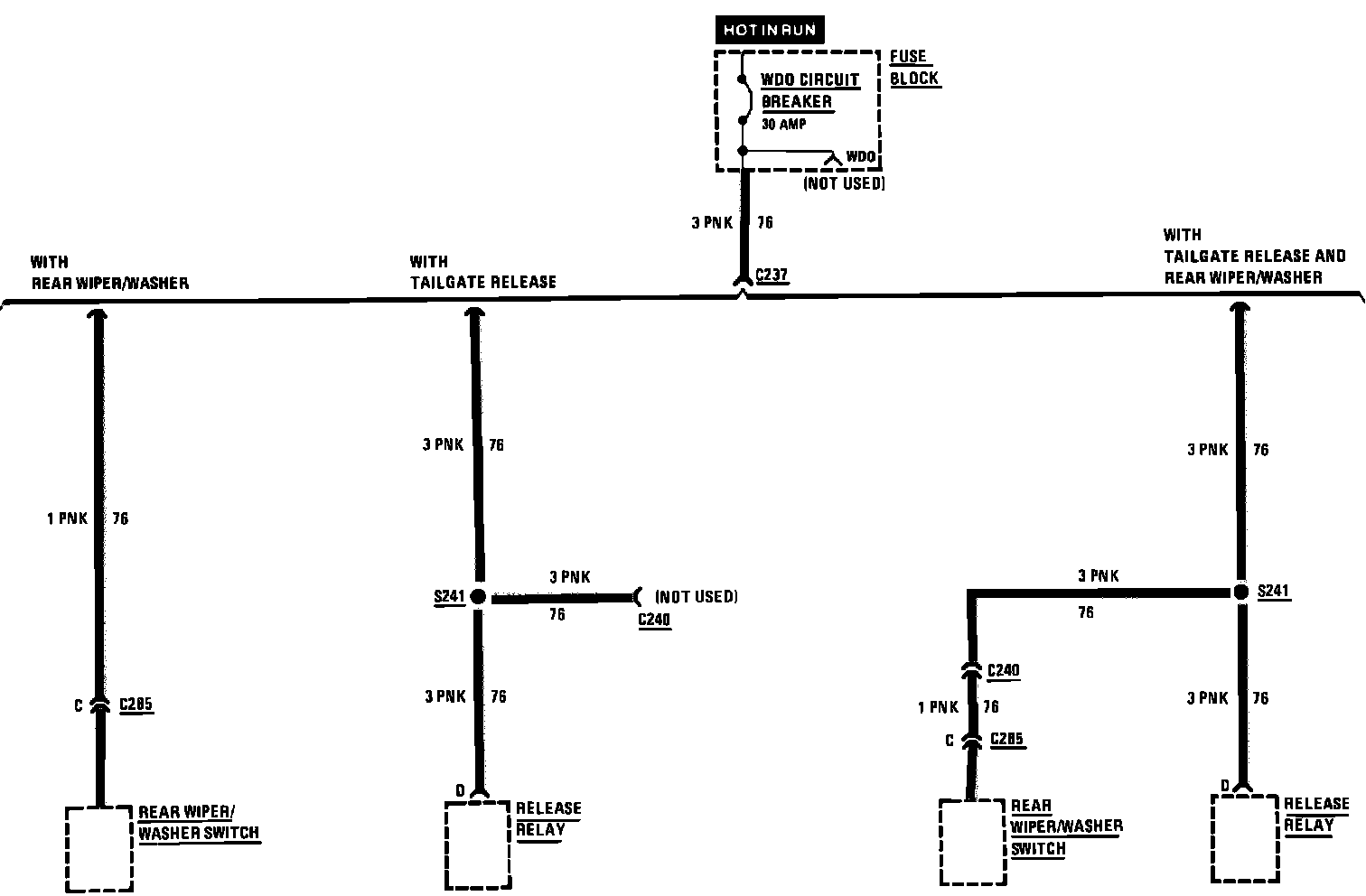

Fuse Block Details (Window Circuit Breaker, Less Power Windows):
