Center Mounted Brake Lamp
Center Mounted Brake Lamp

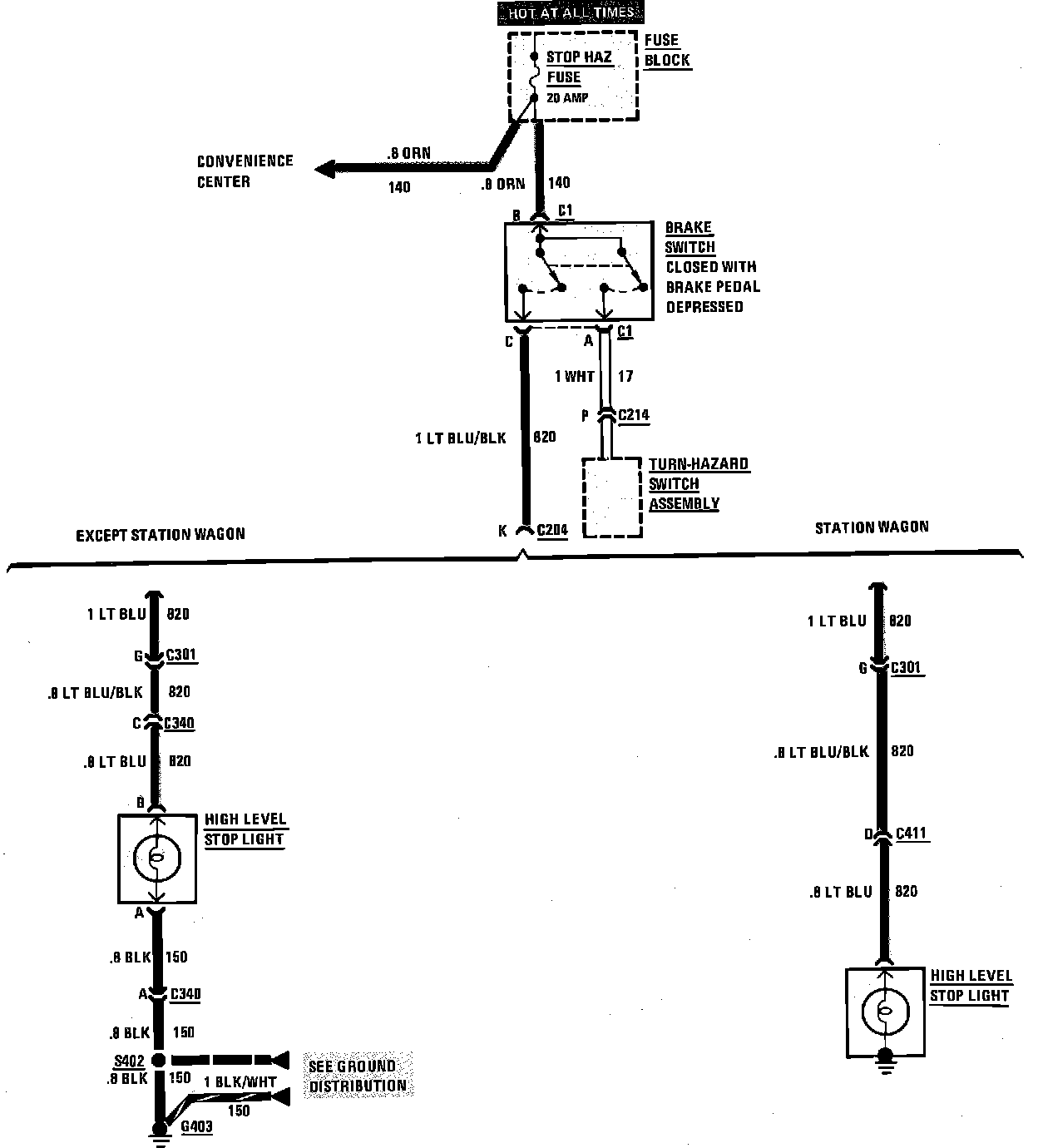

Exterior Lamps Wiring Circuit (High Level Stop Light):
