Vehicle - Updated Lifting & Jacking Points
89Chevy19Number: 89-160-0A
Section: 0A
Date: May 1989
Subject: VEHICLE LIFTING AND JACKING POINTS
Model and Year: 1989 A-CAR
TO: ALL CHEVROLET DEALERS

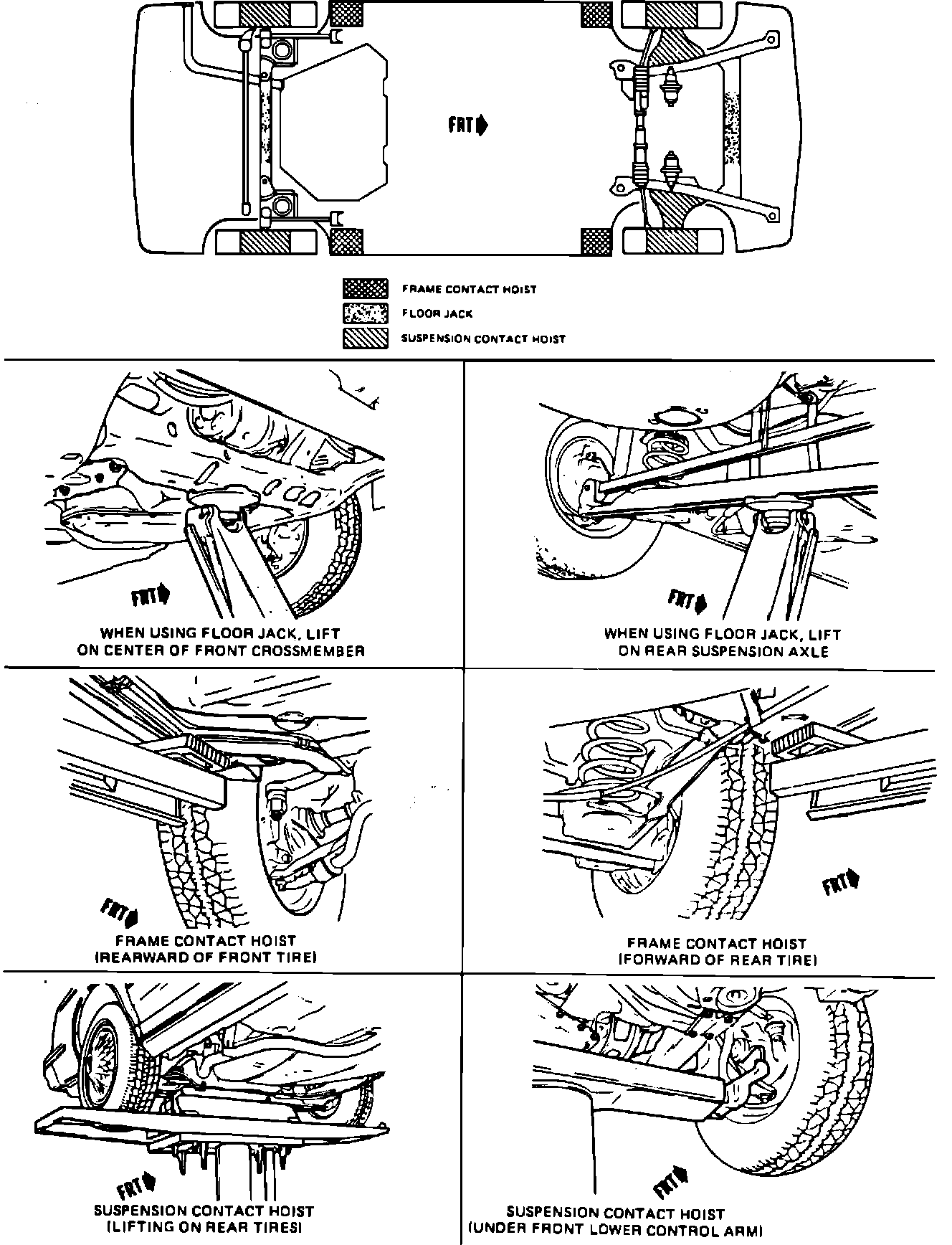

The attached illustration Is being provided to supersede that which is shown in the 1989 A-car Service Manual, Section 0A-6, illustrating vehicle "Lifting and Jacking Points".
When utilizing a frame contact hoist, hoist pads must be maintained in a horizontal position as shown in revised illustration.
Care must also be taken to insure that hoist pad is NOT positioned in such a manner that contact with nylon fuel lines can occur at the left front lifting location.
