A/T - Shift Cable Contacts the A/C Pipe
88chevy21Number: 89-09-1B
Section: 1B
Date: SEPT., 1988
Subject: TRANSMISSION SHIFT CABLE CONTACTS THE A/C PIPE
Model and Year: 1987-89 CELEBRITY WITH 2.5L (VIN CODE R) OR
2.8L (VIN CODE W) ENGINE
TO: ALL CHEVROLET DEALERS
Some 1987-89 Celebrity models with 2.5L or 2.8L engine and MD9 automatic transaxle with C60 Air Conditioning have a potential rub through condition of the A/C pipe by the transaxle shift cable. This pipe is part of the A/C hose assembly routed along the left fender rail from evaporator to accumulator. The vibration and engine roll movement of the transaxle may cause the shift cable to rub through the A/C pipe, causing a refrigerant leak and an inoperative A/c system.
This condition may be addressed by using the following service parts and procedure to protect the A/C pipe.

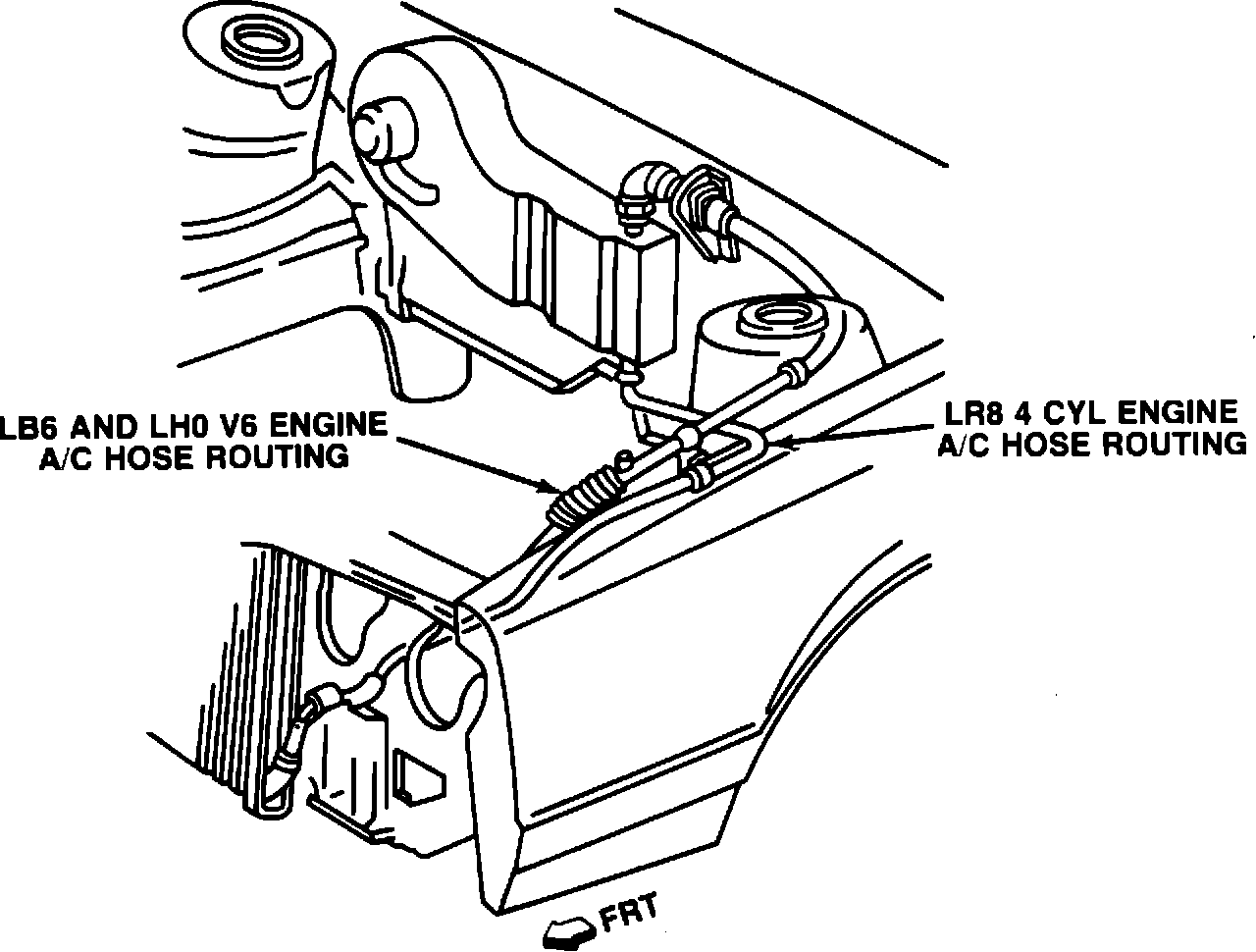

FIGURE 1:
FIGURE 2:
Procedure For 2.5L (VIN Code R) Engine
1. Loosen the clip that holds the A/C pipe to the fender rail, See Figures 1 and 2.
2. Slide the rear rubber protective sleeve forward to the clip, as shown in Figure 2.
3. Retighten the clip to fender rail.
Procedure for 2.8L (VIN Code W) Engine
Service Part Numbers Part Name
3816659 Retainer - Adjustable
Plastic (Chicken Band)
8919356 3/4 I.D. Flexible
Convoluted Conduit
FIGURE 1:
FIGURE 2:
FIGURE 3:
1. Slide a 6 inch piece of the flexible conduit on to the A/C pipe just in front of the valve, as shown in Figure 1 and 3, with the slit positioned on the bottom of the pipe.
2. Secure the conduit in place with the plastic retainer (chicken band) as shown in Figure 3.
Repairs were performed at the assembly plant beginning with the VIN breakpoints listed.
Assembly Plant Engine VIN Breakpoint
Oklahoma City LR8 "R" S.O.P. 1989
L86 "W" S.O.P. 1989
Ramos Arizpe LR8 "R" S.O.P. 1989
L86 "W" S.O.P. 1989
Ste. Therese LR8 "R" J2144838
L86 "W" J2145665
ALL 1987-88 CELEBRITY BUILD AT OSHAWA #1 ARE AFFECTED
Labor Operation Number: T1385
Labor Time : .2 Hours
