Service Parts Information:

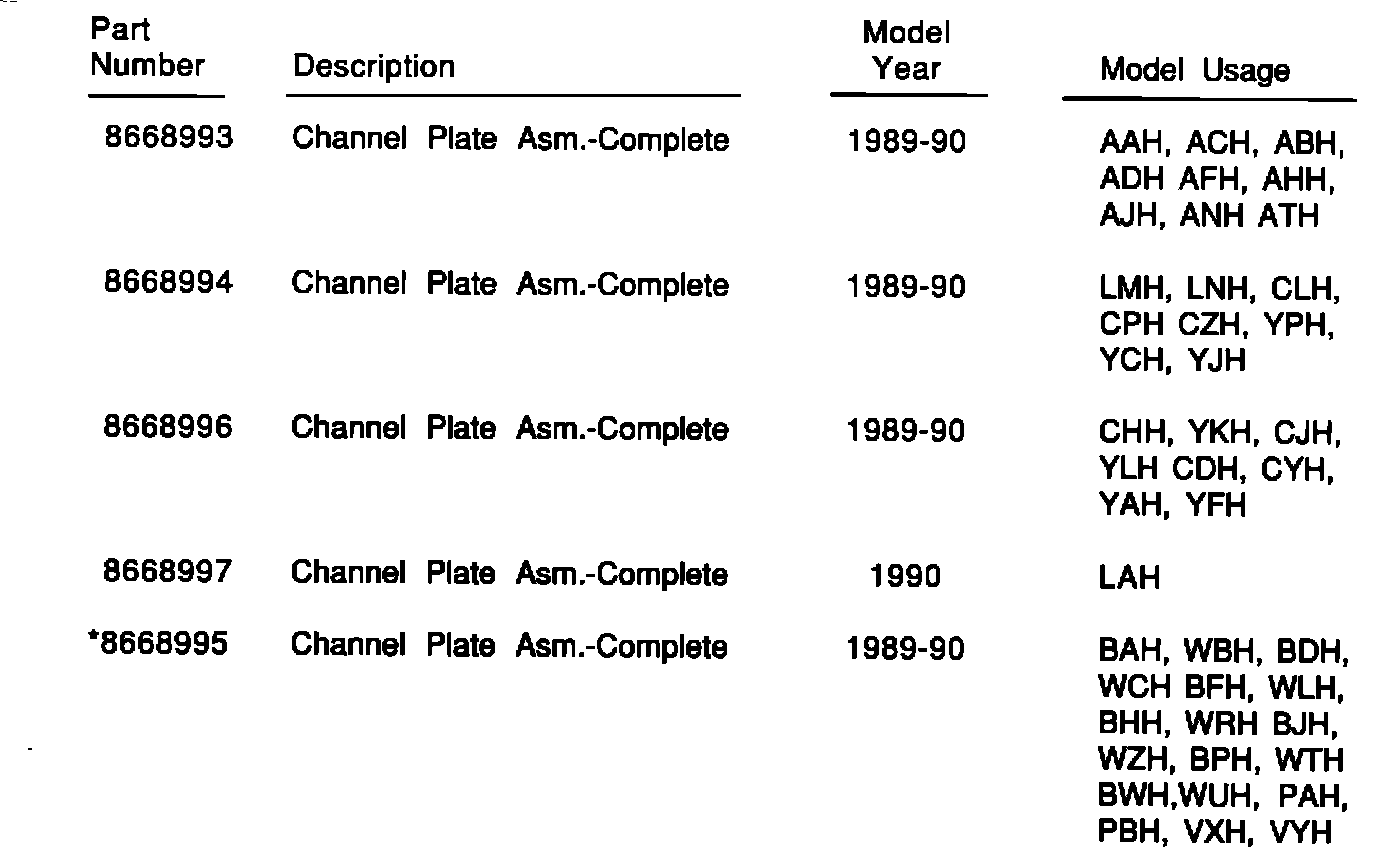

Figure 1:

IMPORTANT: If the previous channel plate assembly is ordered for a 1985-1/2 through 1990 model, the order will be superseded to a new service channel plate assembly package that will service the transaxle model. A 1985-1/2 through early 1986 models will require the slot for the inside detent lever to assemble the manual valve link. Order package 8668991 that will contain a new manual valve link that will assemble to the new inside detent level.



The new service channel plate assembly packages will contain:
- Channel plate assembly
- Valve, manual
- Lever, inside detent

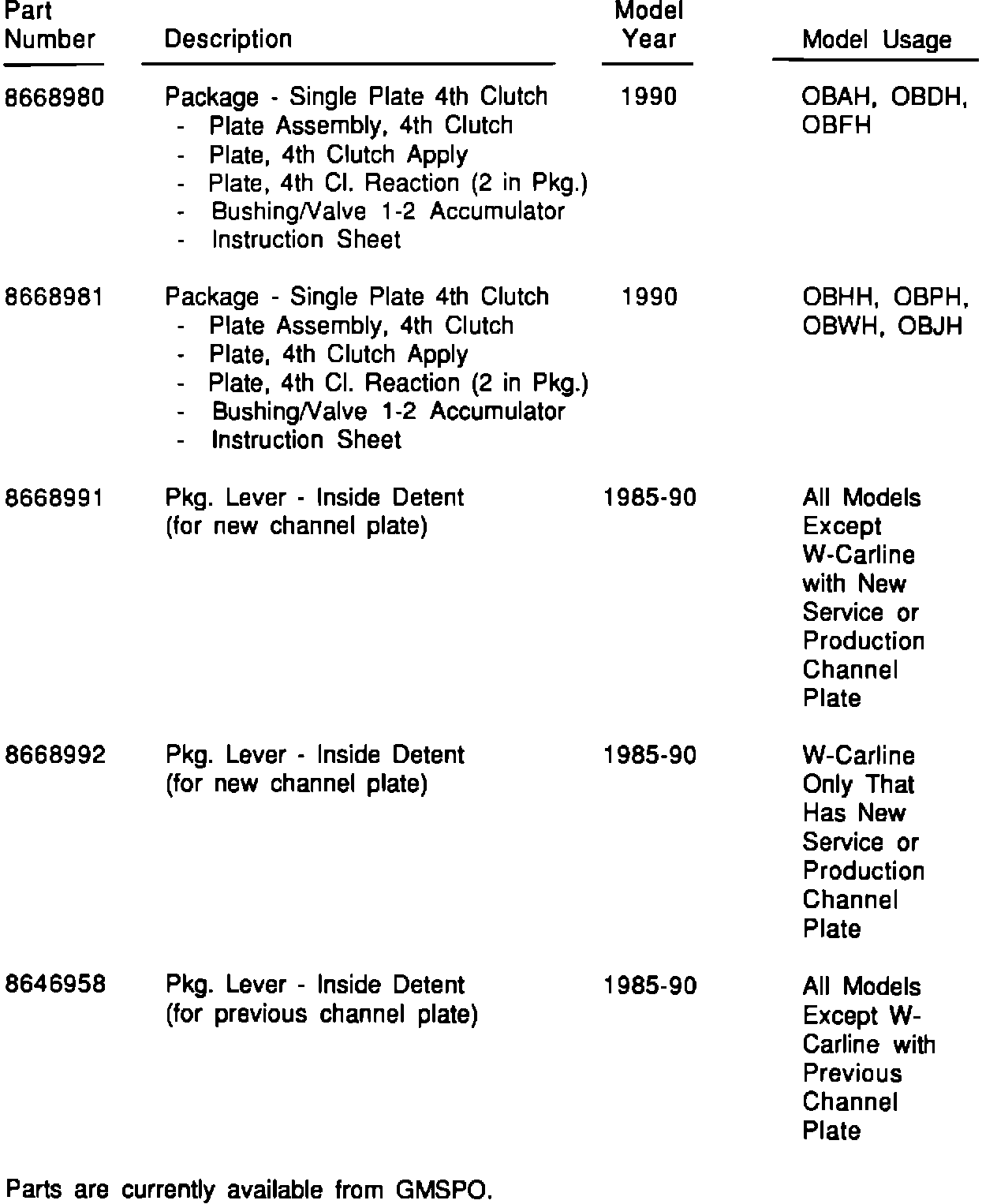

*IMPORTANT: Also, order and install with package 8668995 one of the two packages
listed below for the following 1990 models OBAH, OBDH, OBFH, OBHH, OBPH, OBWH and OBJH with two plate 4th clutch assemblies built from July 10, 1989 (Julian Date 191) to July 31, 1989 (Julian Date 212) of the 1990 Model Year.
