Body - Underbody Dimensions Change

9216chevy06

Number: 90-405-10

Section: 10

Date: MARCH 1991

Corporate Bulletin No.: 131008


Subject:
UNDERBODY ENGINE COMPARTMENT, FRONT DOOR
AND HOOD HINGE DIMENSIONS CHANGE


Model and Year:
1982-90 CELEBRITY














SERVICE UPDATE


Due to a redesigned front fender wheelhouse panel, the body alignment dimensions and measurement locations at the strut towers have changed. Reference Point "D" has changed from the center of strut shock tower front attaching hole, to the center of the strut shock tower 90 mm (3-9/16") hole.

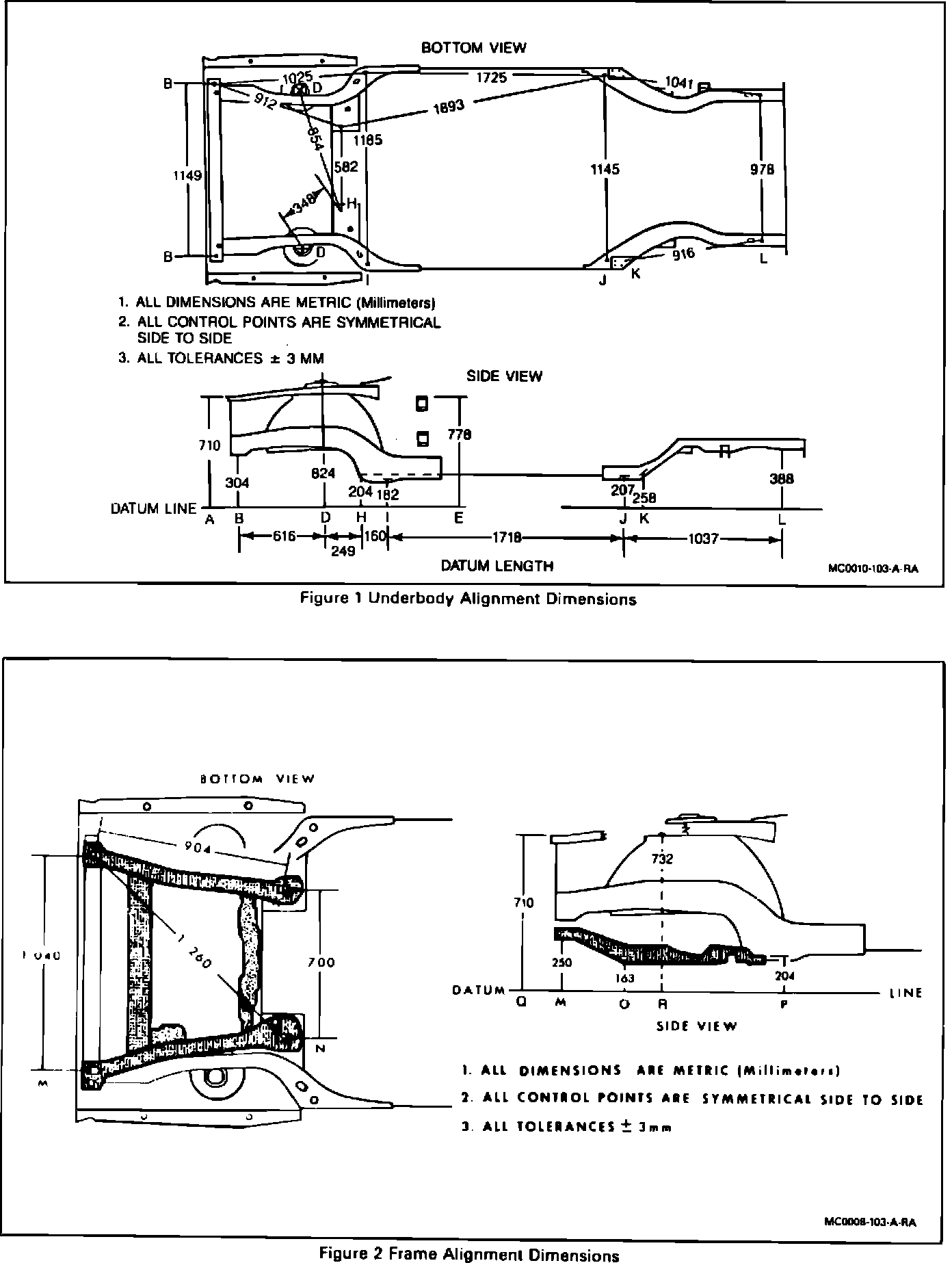

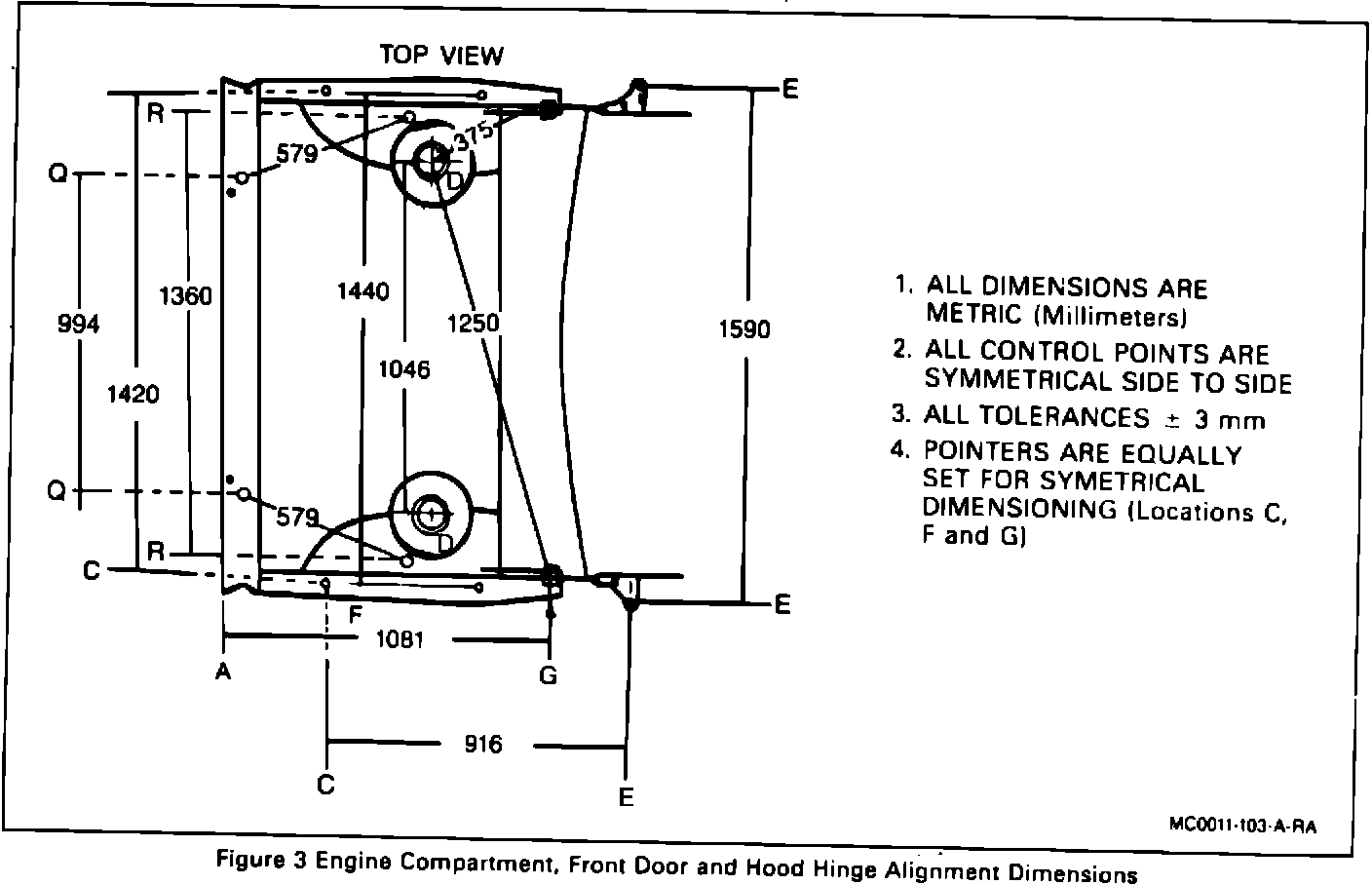

This information also replaces Figures 1, 2, 3. 4 and 5 in the 1990 Celebrity Service Manual, Section 10-3 and should be used in place of any information in prior Chevrolet Service Manuals referring to the underbody.
