A/T - Manual Revision 3RD Clutch Switch Incorrect ID

9218chevy02

Number: 89-306-7A

Section: 7A

Date: April 1990

Corporate Bulletin No.: 007101


Subject:
TRANSAXLE DIAGNOSIS


Model and Year:
1989 A, J CARS WITH THM 125C TRANSAXLE





TO: ALL CHEVROLET DEALERS

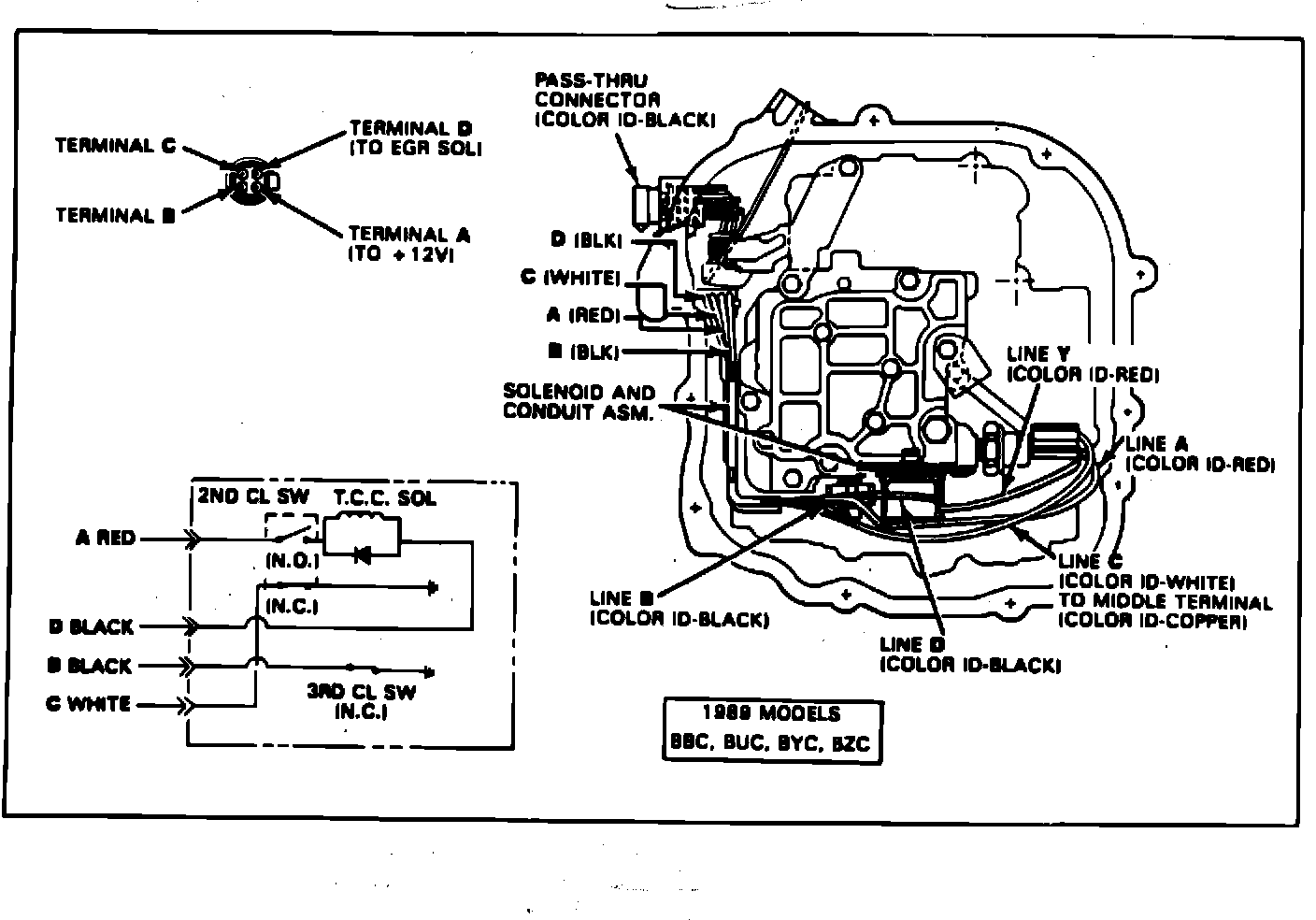

The 3rd clutch switch is incorrectly identified as normally open in Figure 39 in Section THM 125C Transaxle Diagnosis of the 1989 A, J, and N Service Manuals. The switch is identified correctly in the illustration.
