III. Harsh 3-2 Shift **Low Altitude* Only**

III. HARSH 3-2 SHIFT **Low Altitude* Only**
1985-1990 A Car
1990-92 W Car


Service Procedure:

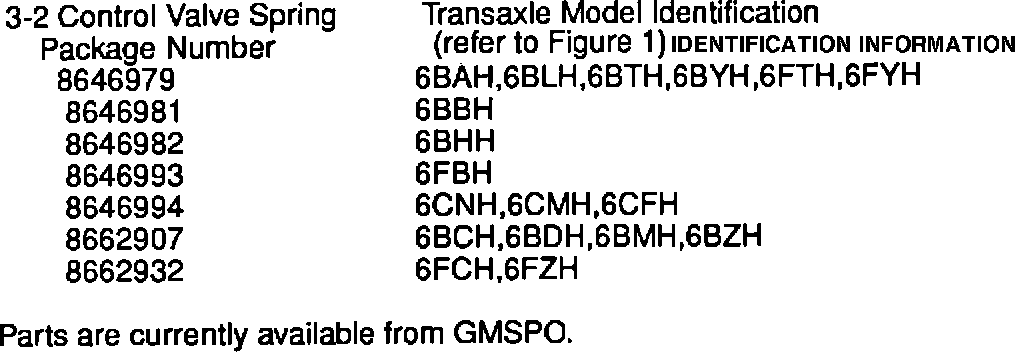

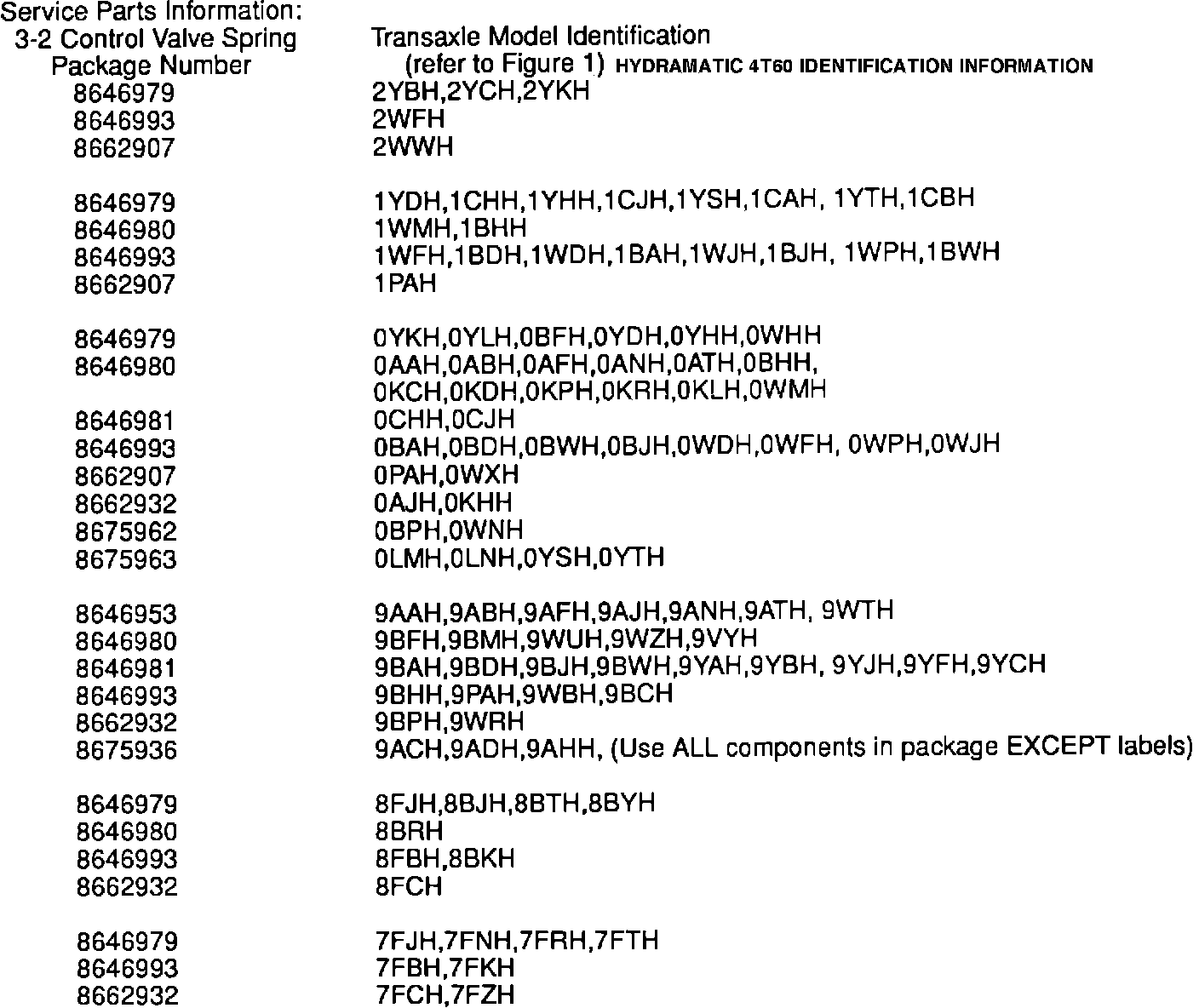

A harsh 3-2 shift at low altitude in a 1991 or 1992 model may be corrected by installing the appropriate service package which contains:
(1) 3-2 Control Valve Spring (341) (refer to Figure 5)
(2) Spacer Plate Gaskets
(3) Instruction Sheet

IMPORTANT:
Service Replacement Transaxle Assemblies (SRTA) are built with original calibrations and may need to be updated with a service 3-2 control valve spring per customer requirements.


Service Manual Reference:
Refer to the HYDRA-MATIC 4T60 (ME9) Automatic Transaxle Unit Repair Table of Contents for Control Valve Assembly Information.
