A/T - Corrected Clutch Piston Seal Installation
89chevy09Number: 89-60-7A
Section: 7A
Date: JAN., 1989
Subject: CLUTCH PISTON SEAL INSTALLATION
Model and Year: 1989 CELEBRITY, CAVALIER, CORSICA, BERETTA WITH THm 125C TRANSAXLE

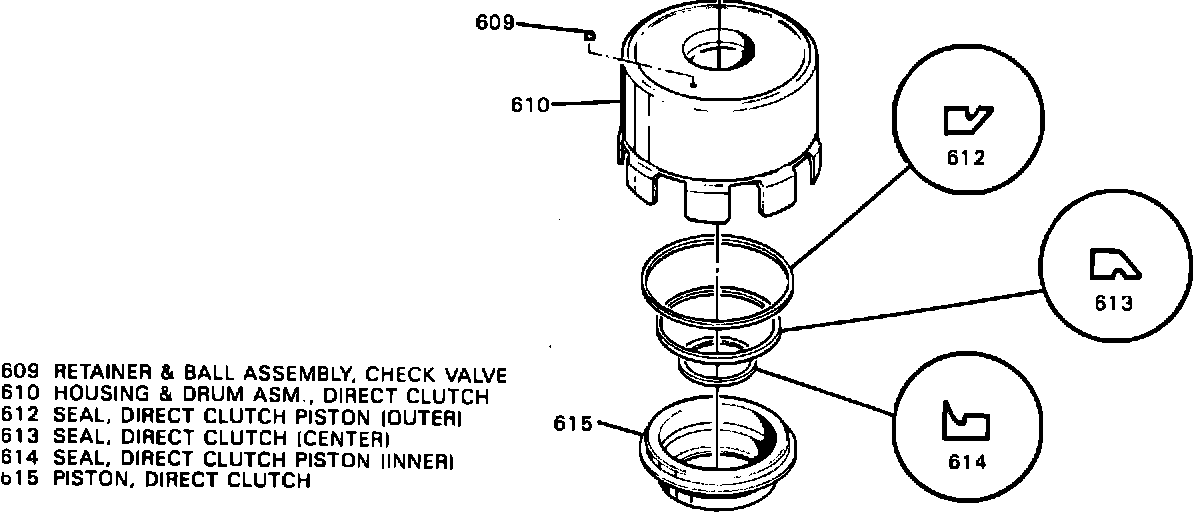

Figure 1:
TO: ALL CHEVROLET DEALERS
This bulletin covers an incorrect procedure regarding Center Seal (613) installation position in the Direct Clutch Piston (615) on page 30 in the THM 125/125C Unit Repair Section of 1989 Service manuals.
The current service manual reads:
1. Center seal (613) - lips facing capsule.
The service manual should read:
1. Center Seal (613) lips facing away from capsule (Refer to Figure 1)
SERVICE NOTES:
Please make the necessary correction in your 1989 THM 125/125C Unit Repair Section of your service manual.
