Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

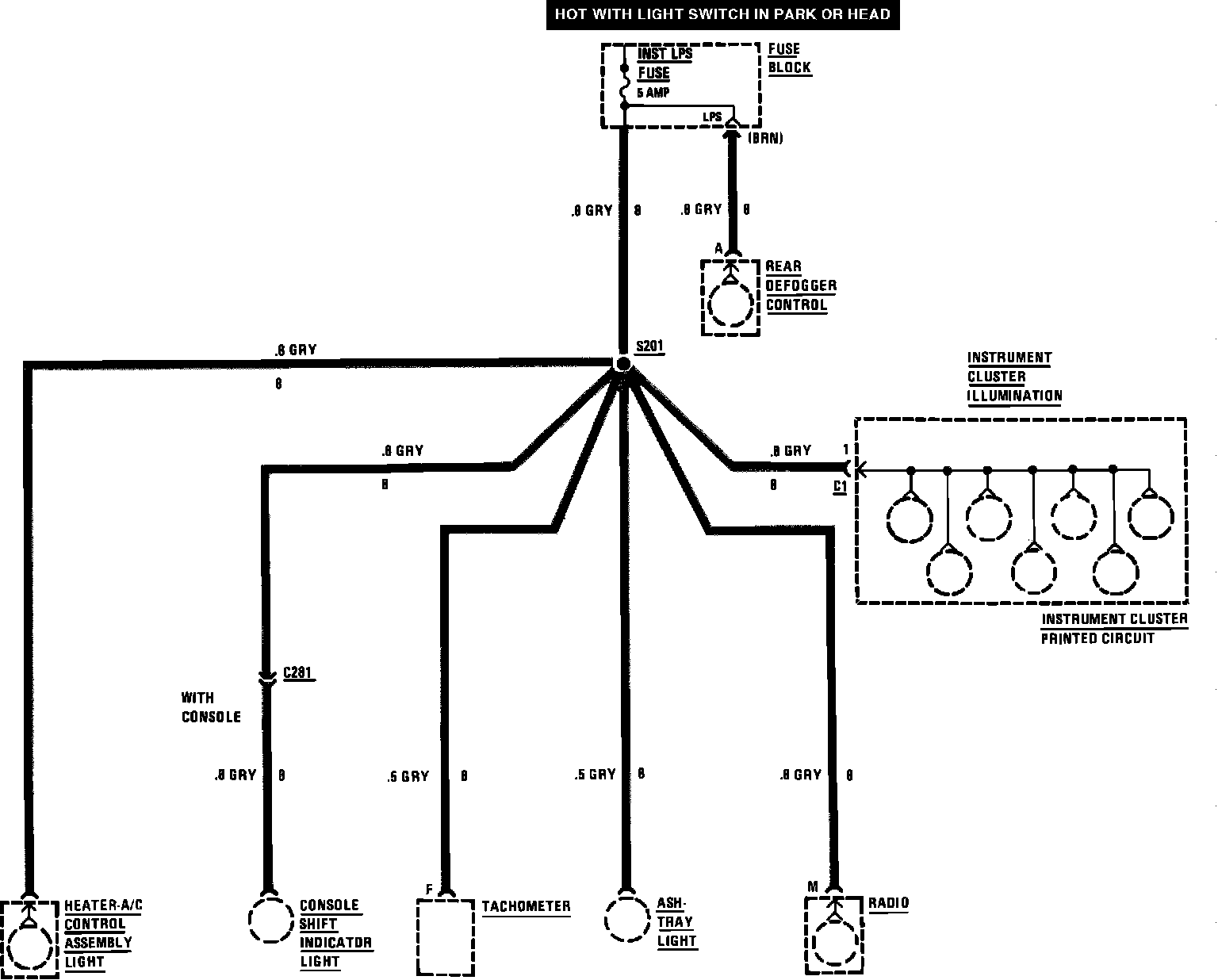

Instrument Lamps
Instrument Lamps
Fuse Block Details (Instrument Lamps Fuse):
