Home
>>
Chevrolet
>>
1989
>>
Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Air Conditioning
Air Conditioning

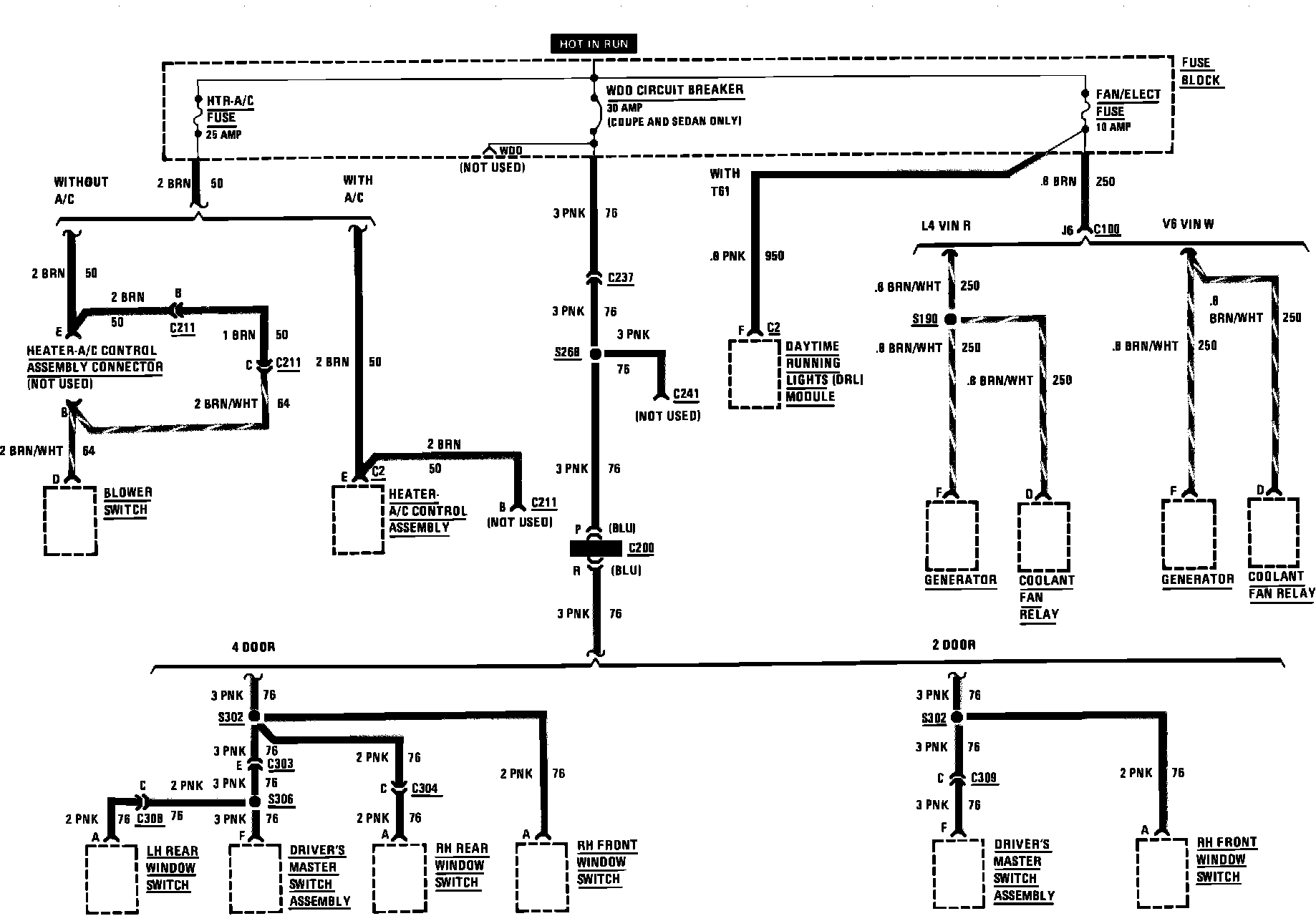

Fuse Block Details (Window Circuit Breaker, Fan/Elect & Heater/A/C):
