Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G403
G403

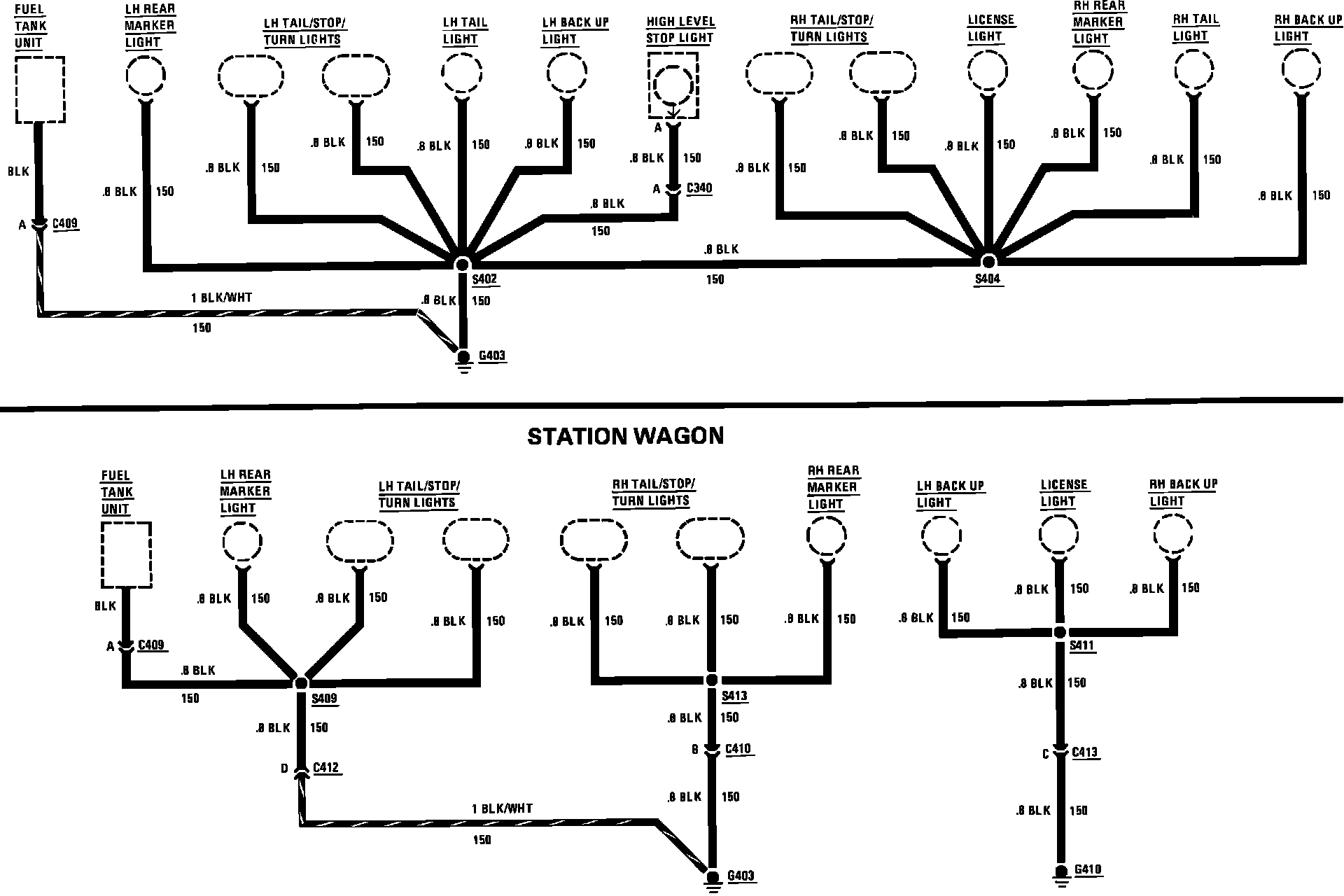

Ground Distribution (G403 & G310):
