Chevrolet
>>
1989
>>
Celebrity L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Windows
>>
Station Wagon
>>
W/Power Windows
W/Power Windows

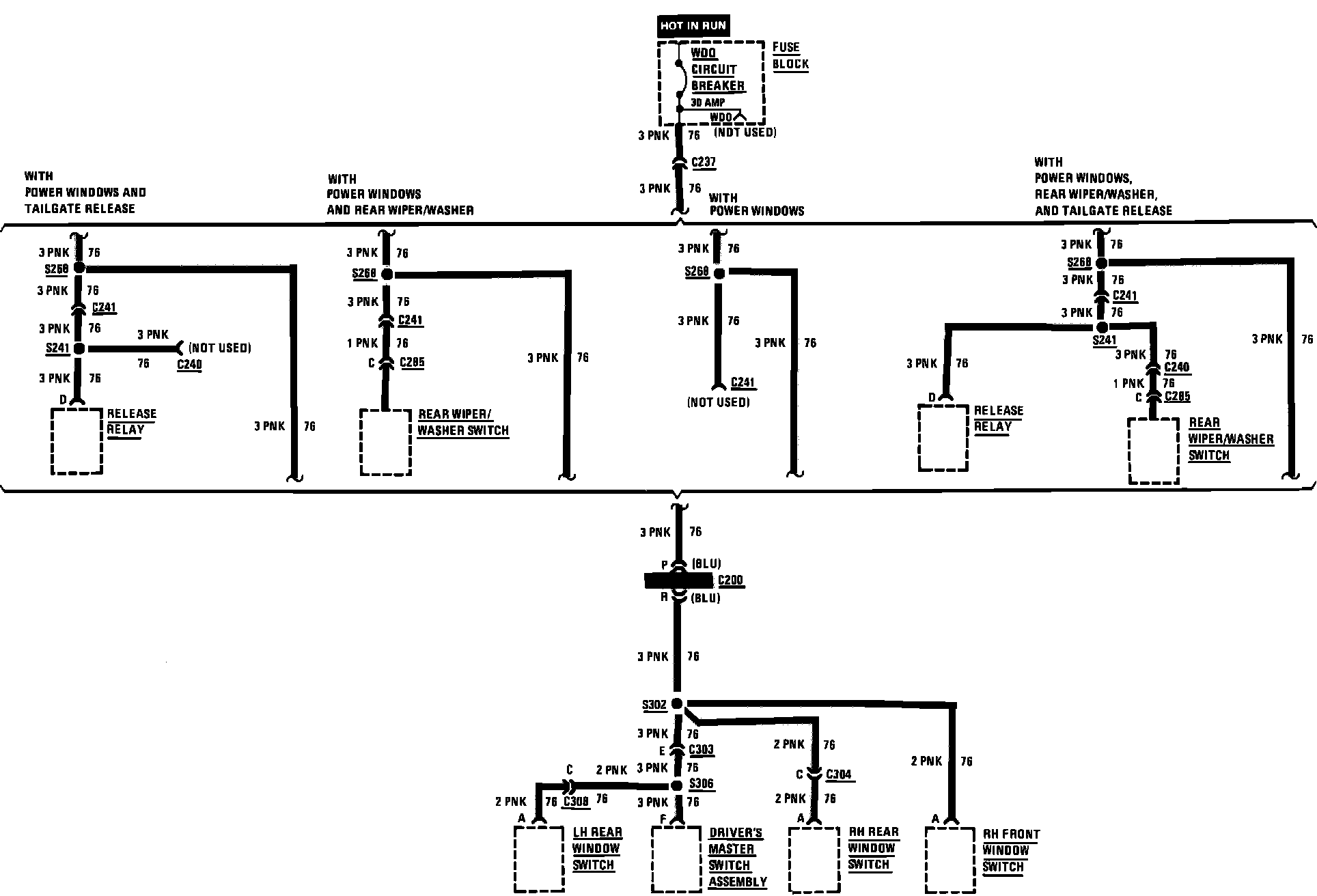

Fuse Block Details (Window Circuit Breaker) W/Power Windows:
