Service Procedure, ID Label & Claim Information

SERVICE PROCEDURE

1. Phone Hydra-Matic (use applicable phone number from "Parts Information" section) and provide them the Bar Code Number (see illustration above) from transaxle to be replaced. Hydra-Matic will then confirm that the transaxle involved requires replacement.

2. Once the Bar Code number is confirmed in Step 1, the transaxle in each involved vehicle is to be replaced, using the procedures listed in the Cavalier or Corsica/Beretta Service Manual, including observing the CAUTIONS, and making the transmission, clutch and other misc. adjustments required.
SERVICE PROCEDURE (con't.)

3. Install Campaign Identification Label.

RETURN SHIPPING INSTRUCTIONS

The shipping container will include return shipping instructions and label for the removed unit along with a form to record the data given during the telephone order.

The replaced transaxle is to be shipped in the new transaxle's original container to Hydra-Matic within 10 days after the new one is installed.

The freight charges, both ways, will be prepaid by Hydra-Matic (subject to Hydra-Matic instructions and choice of shipper).

DEALERS WILL BE CHARGED $750.00 IF THE REPLACED TRANSAXLE IS NOT RETURNED TO HYDRA-MATIC WITHIN 10 DAYS.

Information to be declared on the Bill-of-Lading description for returning the replaced transaxle:

Description: "Transmissions or clutches or parts thereof NOI NMFC 100-I, Item 19940, Class 85."

Weight of container and transaxle: 111 pounds

Routing Instructions:

Carrier: (as specified by Hydra-Matic)

Consign Return To:

Hydra-Matic Division Muncie Transmission Plant 1200 West 8th Street Muncie, IN 47307

Hydra-Matic Muncie Plant will ONLY be financially responsible for freight charges which would result from the carrier specified by Hydra-Matic. Do not use air freight unless Hydra-matic specifically requests the RETURN of the transaxle by AIR.



CAMPAIGN IDENTIFICATION LABEL

Each vehicle corrected in accordance with the instructions outlined in this bulletin will require a "Campaign Identification Label". Each label provides a space to include the five (5) digit dealer code of the dealer performing the campaign service. This information may be inserted with a typewriter or a ball point pen.
Each "Campaign Identification Label" is to be located on the radiator core support in an area which will be visible when the vehicle is brought in for periodic servicing by the owner.

Apply "Campaign Identification Label" only on a clean dry surface.



CLAIM INFORMATION

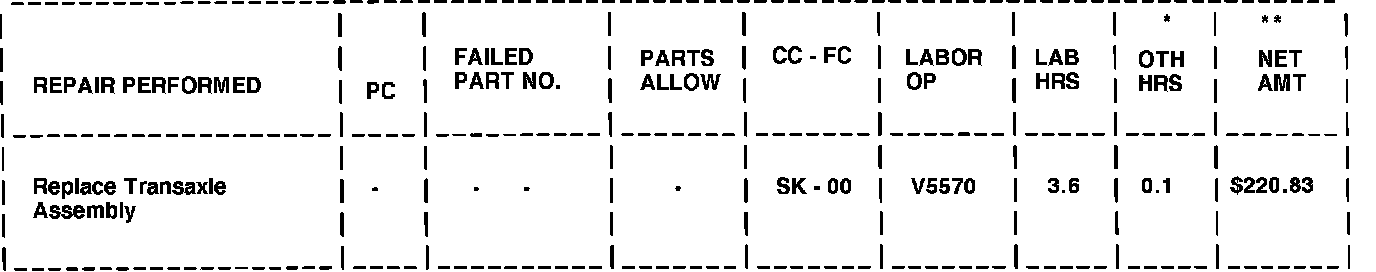

Submit a Product Campaign Claim with the information indicated below:
* Campaign Administrative Allowance

** The $220.83 identified in the "Net Amount" column represents 30% of dealer cost for all transmission parts plus 3 quarts of transaxle fluid required for the repair. Transaxles will be ordered directly from Hydra-Matic on a no charge basis.

Dealers will automatically receive the correct labor and material allowance based on the labor operation performed.

Refer to the Chevrolet Claims Processing Manual for details on Product Campaign Claim Submission.
