Power ACC
Power ACC

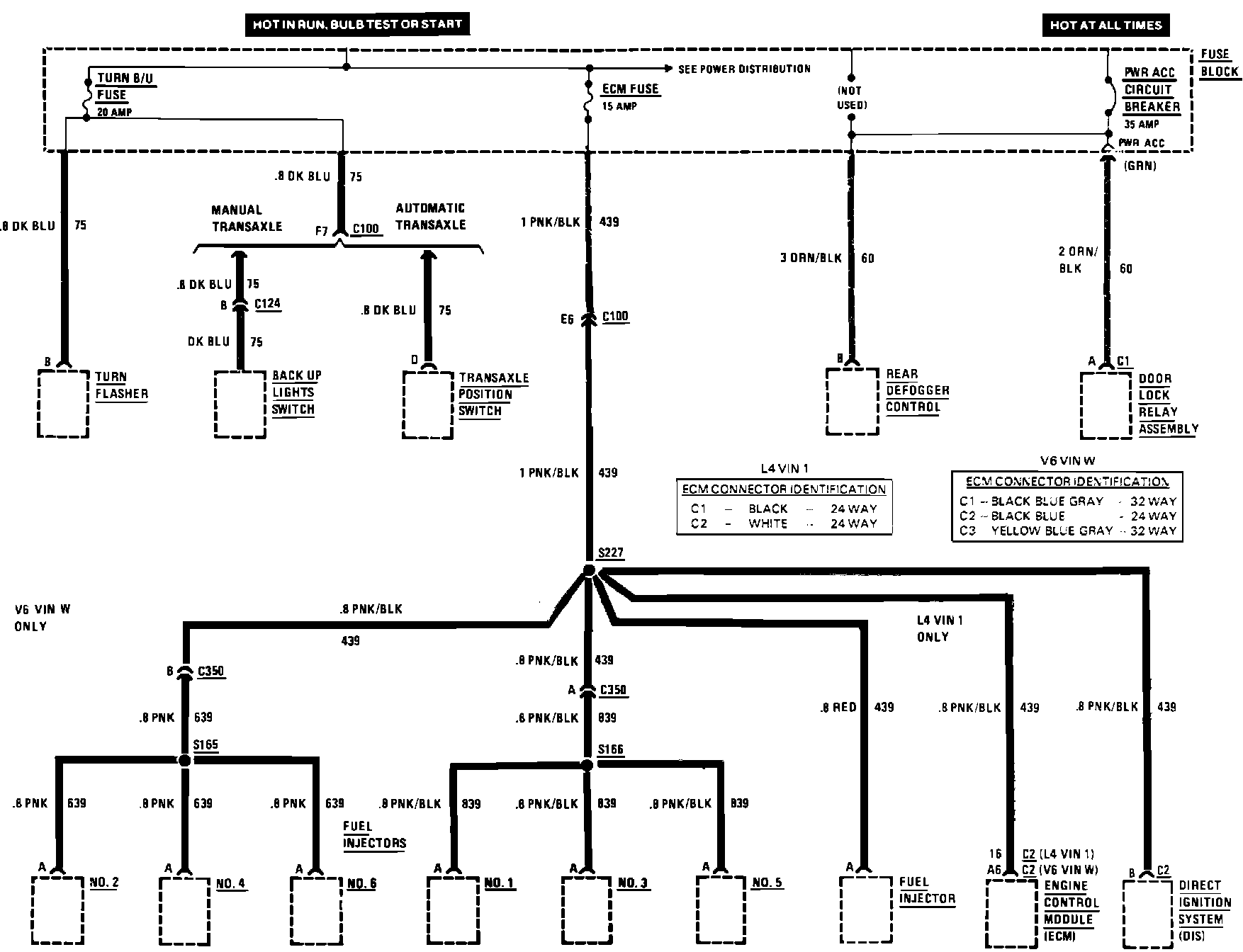

Fuse Block Details (ECM Fuse, Turn B/U Fuse & PWR ACC Circuit Breaker) W/Standard Cluster:
