Water Pump: Service and Repair

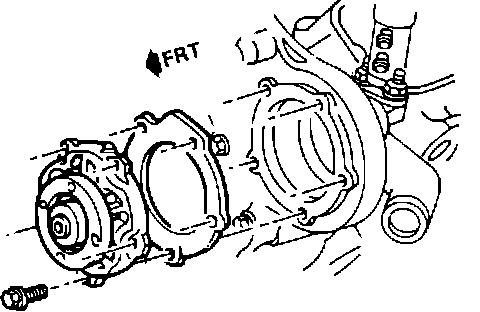

Fig. 15 Water Pump Mounting:

1. Disconnect battery ground cable, then drain cooling system.
2. Disconnect serpentine belt at the water pump pulley.
3. Remove water pump pulley, then the water pump, Fig. 15.
4. Reverse procedure to install.
