Circuit Breaker 14

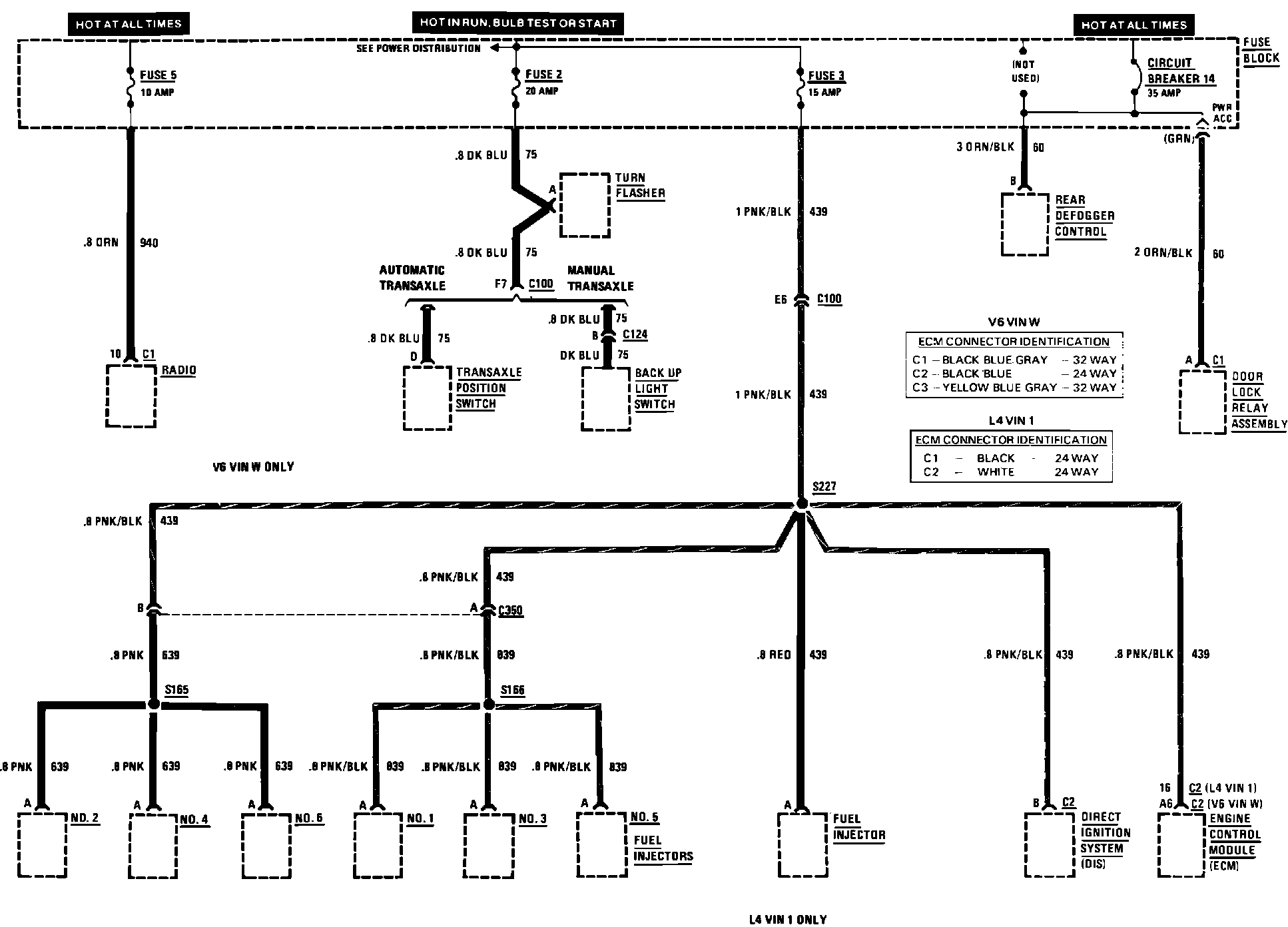

Fuse Block Details (Fuse 2, Fuse 3, Fuse 5 & Circuit Breaker 14) W/Digital & Gauge Cluster:
