Manager Summary Campaign Bulletin

Origin No. SER-79
C.O. No. 89-291
Date: September 26, 1989

SUBJECT: PRODUCT CAMPAIGN 89C16 5-SPEED MANUAL TRANSMISSIONS - HIGH CARBIDE GEARS


TO: SERVICE & CUSTOMER SATISFACTION MANAGER AREA MANAGER-SERVICE


GOAL: To inspect and correct all units involved as indicated in the attached Product Campaign Bulletin.


ACTION: Dealers are to inspect and/or repair the vehicles as described in the bulletin.


DUE DATE: ----- C.O. CONTACT PERSON: M.D. McAfee, Staff Asst., Warranty Admin.8/562-5529


It has been determined that certain 1989 Chevrolet Cavalier & Corsica/Beretta models produced with 5-speed manual transaxles may have gears with a high carbon content in the tooth surface. These gears could, as mileage accumulates, damage the softer gears to which they mate. The first notice to a driver would be gear noise resulting from spalling (pitting) of gear surfaces. If the transaxle is left unserviced, internal damage may occur, leading to vibration or the shifter "popping out of gear", and finally to a loss of drive in one or more gears.

To correct this condition, the involved transaxle assemblies are to be exchanged to prevent the above condition from recurring on the same vehicles as mileage accumulates.

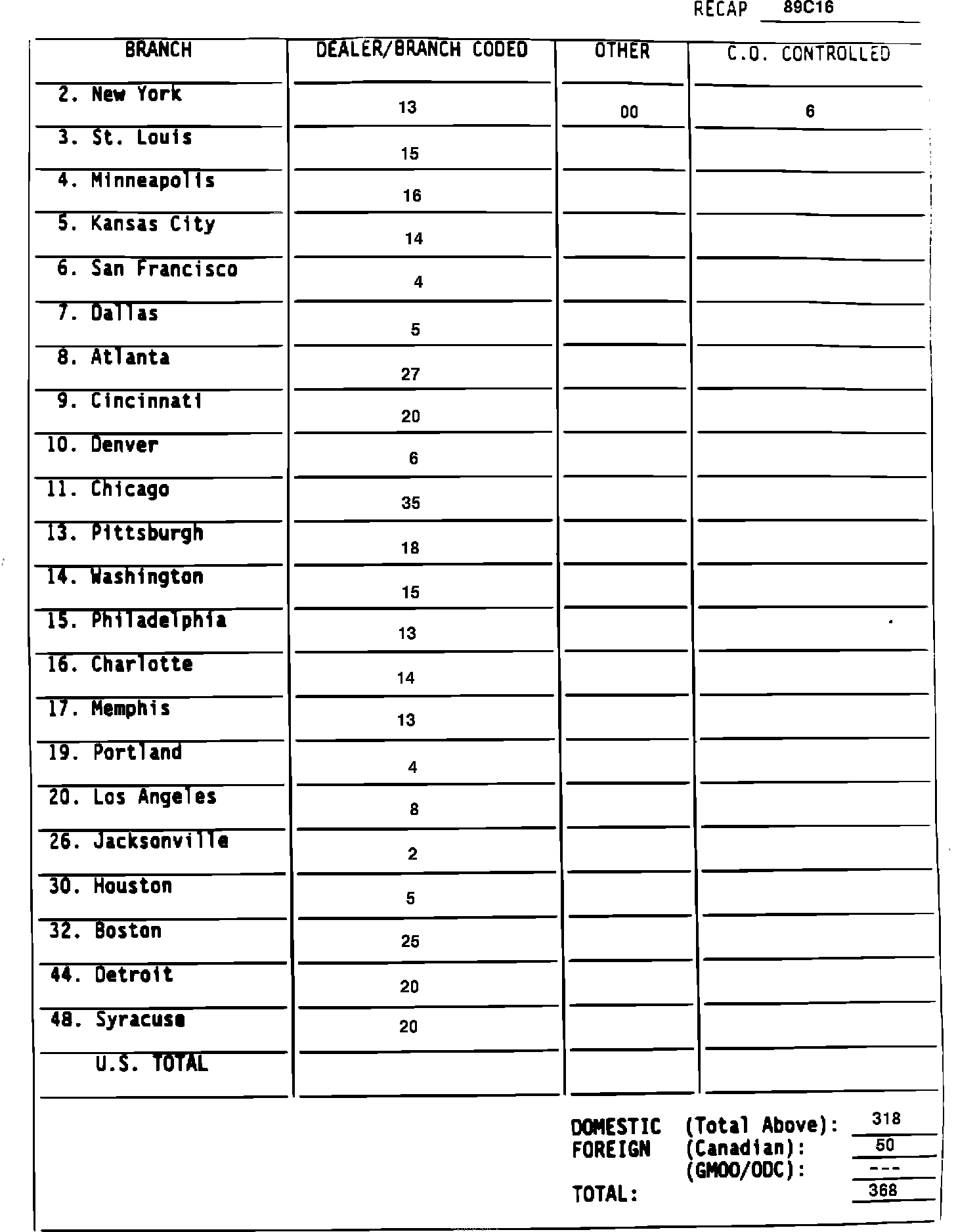

The attached prorate indicates the number of vehicles involved in each Branch.
Parts required to complete this campaign are to be obtained directly from Hydra-Matic Division by calling 1-317-747-2026, between 6:00 AM and 2:30 PM, CENTRAL TIME. COLLECT PHONE CHARGES WILL BE ACCEPTED thru December 22, 1989. After this date, transaxles for this campaign are to be ordered directly from Hydra-Matic Division by calling 1-317-747-2132, between 6:00 AM and 2:30 PM, CENTRAL TIME.
