Engine Controls - Engine Cranks But Won't Run Chart

9218chevy06

Number: 90-167-6E

Secton: 6E

Date: February 1990

Corporate Bulletin No.: 016502


Subject:
DRIVEABILITY AND EMISSIONS


Model and Year:
1989 2.OL AND 1990 2.2 J, L CARS





TO: ALL CHEVROLET DEALERS

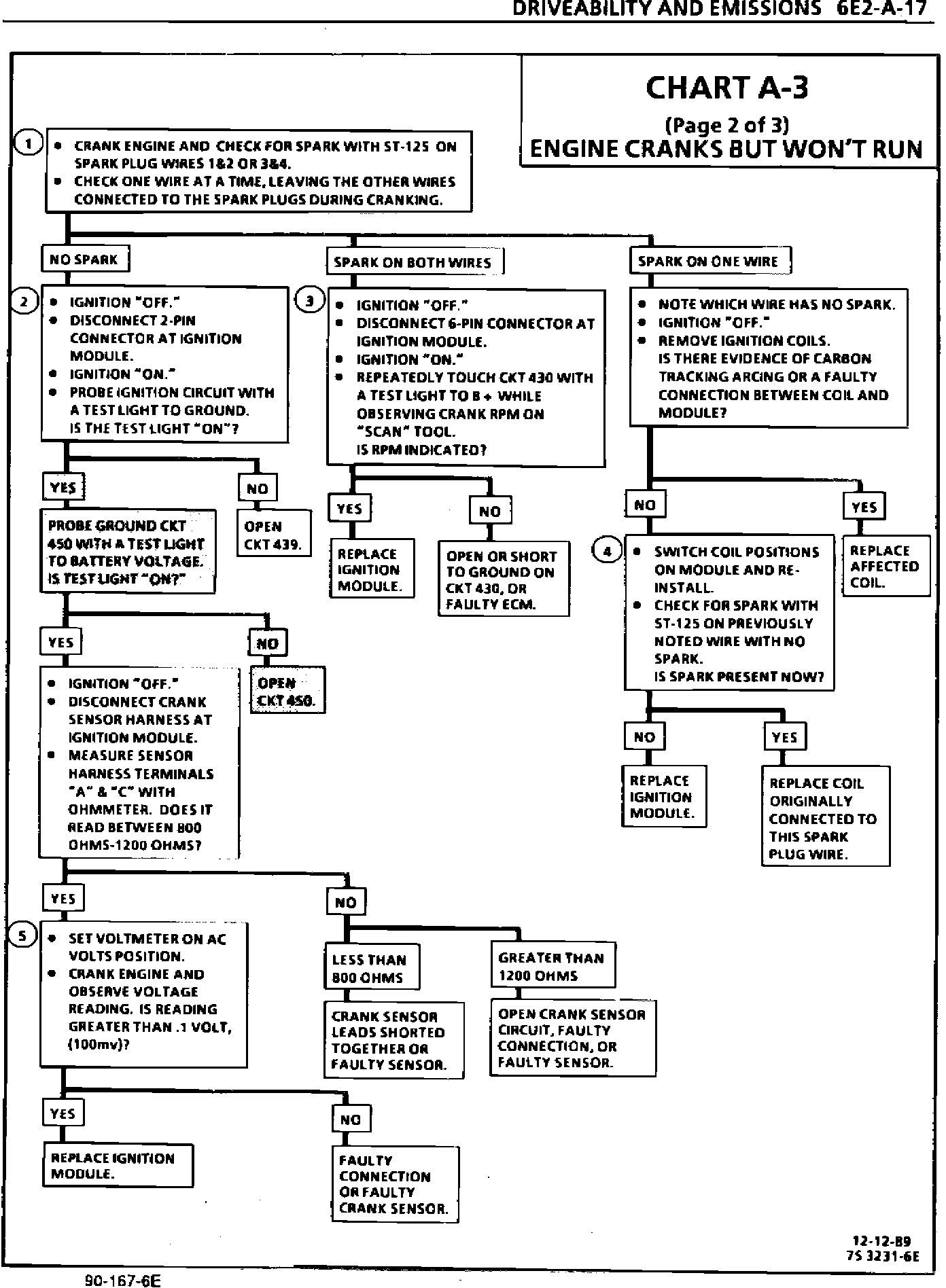

This bulletin updates Chart A-3, "Engine Cranks But Won't Run" (Page 2 of 3), on page 6E2-A-l7 in Section 6E2, "Driveability And Emissions." This update applies to 1989 2.OL (VIN 1) and 1990 2.2L (VIN G) "J" and "L" Carline Service manuals.
