W/Standard Cluster
>>
Inst LPS Fuse
Inst LPS Fuse

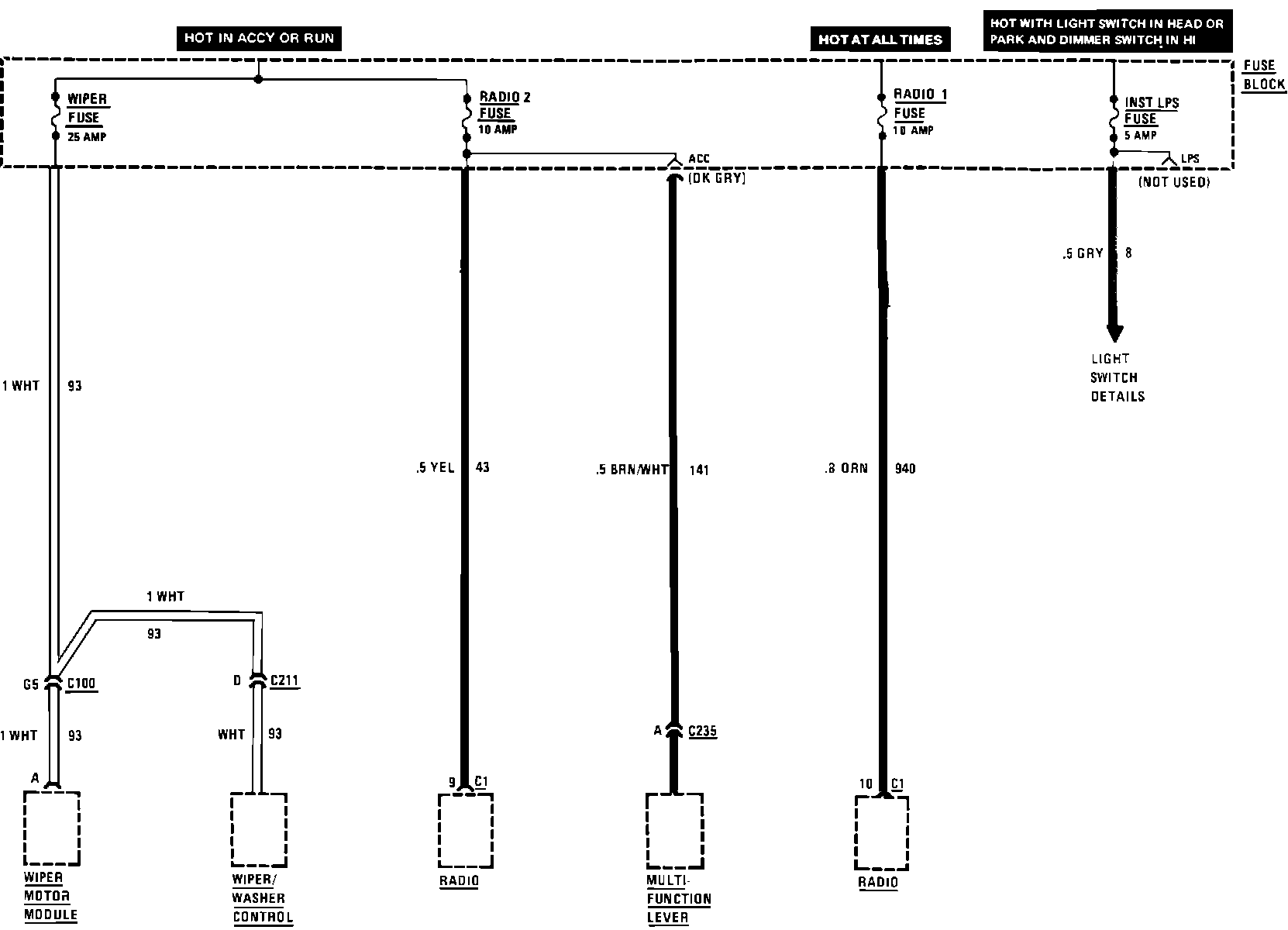

Fuse Block Details (Inst. LPS Fuse, Radio 1 Fuse, Radio 2 Fuse & Wiper Fuse) W/Standard Cluster:
