Home
>>
Chevrolet
>>
1989
>>
Cavalier/Z24 L4-121 2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Rear Lamp Grounds
>>
Wagon
Wagon

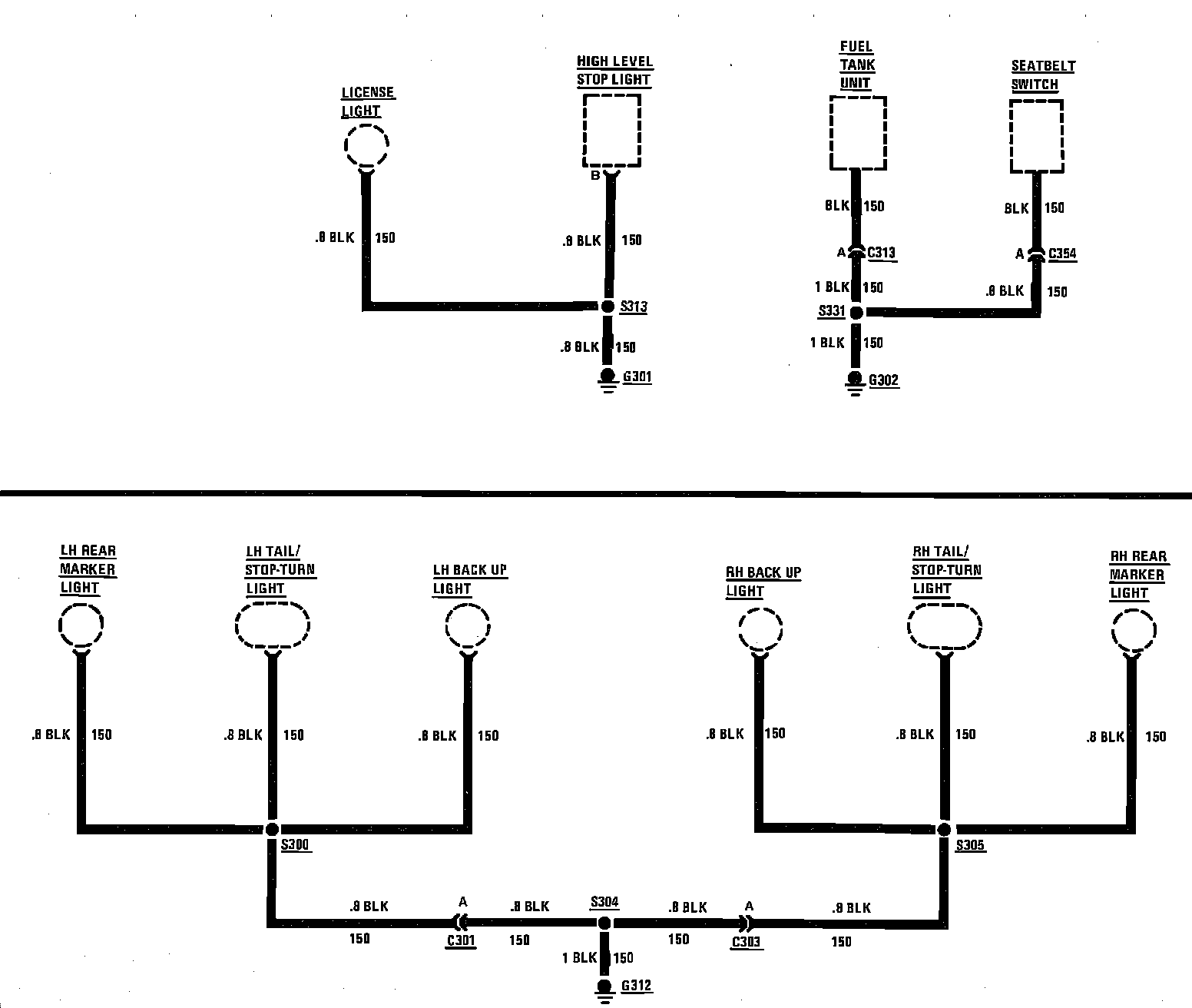

G301, G302 & G312:
